FD-R31G
PANASONIC
1
Fiber, Reflective type, lens mountable, M3, beam diam. 0.5 mm, 2m, IP40
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | FD-R31G |
Part Number | FD-R31G |
Product | Reflective type Fiber |
Details | Square Head type Fiber |
Product name | Square Head Fiber |
Item | Specifications |
---|---|
Product Number | FD-R31G |
Part Number | FD-R31G |
Sensing mode | Reflective type |

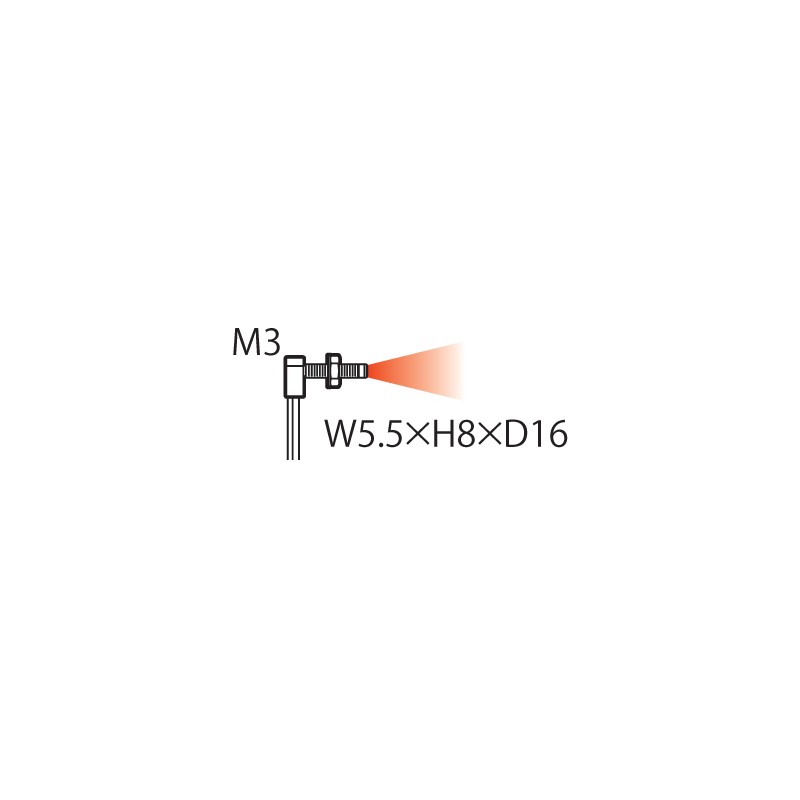

Fiber type | Square head type |
Fiber head dia. | M3 |
Fiber head length | W5.5 x H8 x D16 mm |
With sleeve | No |
Beam direction | Top-view |
Beam axis dia./ Spot diameter | Emitter dia. 0.5 mm |
Fiber cable length | 2 m |
Allowable bending radius | R2 mm |
Free-cut | Available |
Semi-custom | Available |
Mounting lens | Available |
Applicable lens | FX-MR3,FX-MR6,FX-MR7,FX-MR8,FX-MR9 |
Mounting protective tube | Not available |
Application | General-purpose |
Environmental resistance : Protection | IP40 |
Environmental resistance : Ambient temperature MAX | 80 degrees |
Environmental resistance : Ambient temperature MIN | -55 degrees |
Sensing range(STD) | 170 mm 6.693 in (FX-500 series) |
Sensing range(HYPR) | 530 mm 20.866 in (FX-500 series) |
Sensing range(U-LG) | 310 mm 12.205 in (FX-500 series) |
Sensing range(LONG) | 260 mm 10.236 in (FX-500 series) |
Sensing range(FAST) | 85 mm 3.346 in (FX-500 series) |
Sensing range(H-SP) | 27 mm 1.063 in (FX-500 series) |
