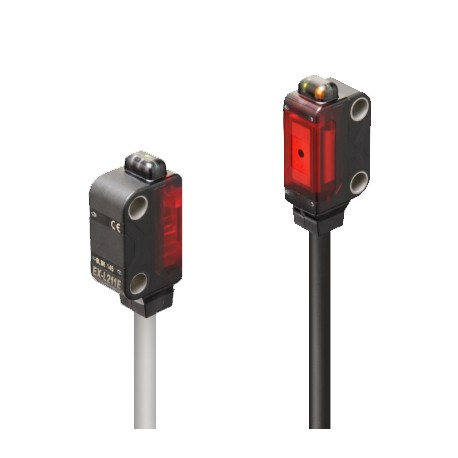

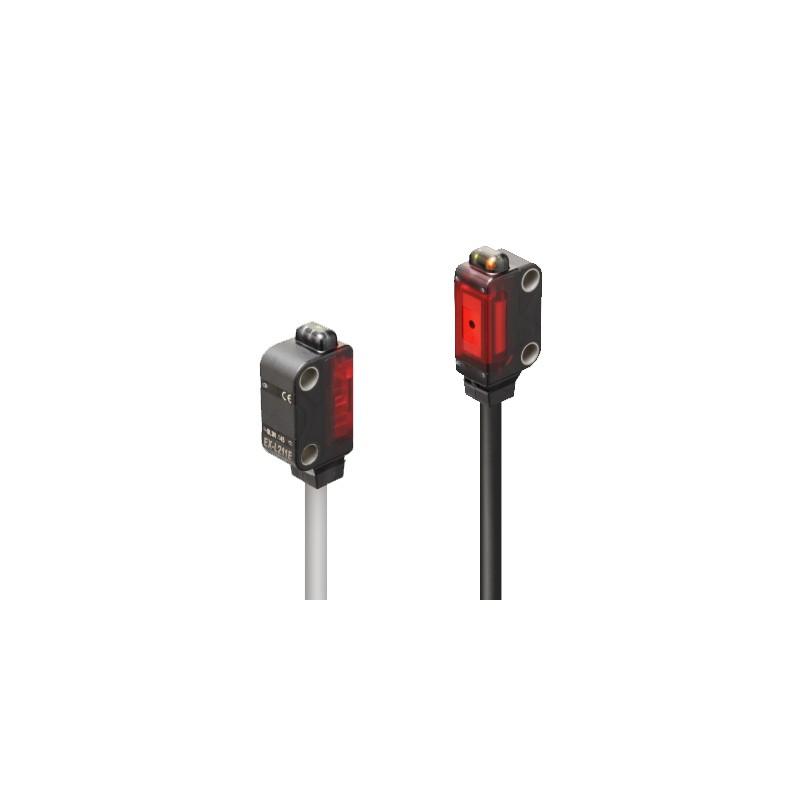

EX-L211-P
PANASONIC
1
Laser Trough beam, 1m, spot 6x4mm, PNP, cable 2m
Digital laser - PANASONIC > EX-L200 digital laser - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | EX-L211-P |
Part Number | EX-L211-P |
Product | Amplifier Built-in Ultra-compact Laser Sensor |
Details | Thru-beam type |
Product name | Amplifier Built-in Ultra-compact Laser Sensor EX-L200 |
Item | Specifications |
---|---|
Product Number | EX-L211-P |
Part Number | EX-L211-P |
CE marking directive compliance | EMC Directive, RoHS Directive |
Sensing range | 1 m3.281 ft |
Emission spot size (Typical) | Approx. 6 × 4 mm0.236 × 0.157 in(vertical × horizontal) (at a sensing distance of 1 m) |
Sensing object | Opaque object of ø2 mmø0.079 inor more |
Minimum sensing object (Typical) | Opaque object of ø0.3 mmø0.012 in (Note)Typical values when the sensitivity adjuster is optimally adjusted. |
Repeatability | Perpendicular to sensing axis: 0.05 mm0.0020 inor less |
Repeatability (Typical)(perpendicular to sensing axis) | 0.01 mm0.0004 inor less (all area) (Note)Typical values when the sensitivity adjuster is optimally adjusted. |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Current consumption | Emitter: 10 mA or less Receiver: 10 mA or less |
Output | PNP open-collector transistor - Maximum source current: 50 mA - Applied voltage: 26.4 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current) |
Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
Response time | 0.5 ms or less |
Operation indicator | Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
Power indicator | Green LED (lights up when the power is ON) (incorporated on the emitter) |
Sensitivity adjuster | Continuously variable adjuster (incorporated on the receiver) |
Protection | IP67 (IEC) |
Ambient temperature | -10 to +55 ℃+14 to +131 ℉(No dew condensation or no icing condition), Storage: -30 to +70 ℃-22 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA) (Note:This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration) (Maximum output: 390 μW, Peak emission wavelength: 655 nm0.026 mil) |
Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
Cable | 0.15 mm24-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m6.562 ftlong |
Cable extension | Extension up to total 50 m164.042 ftis possible with 0.3 mm2, or more, cable (thru-beam type: Total 100 m328.084 ftboth emitter and receiver). |
Weight | Net weight: Emitter: 40 g approx., Receiver: 40 g approx., Gross weight: 90 g approx. |
Accessory | MS-EXL2-2 (Mounting plate): 2 pcs. |
