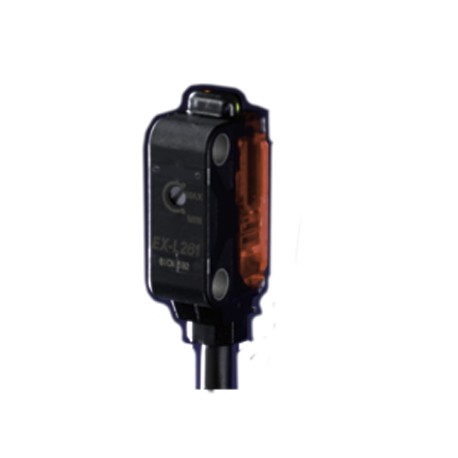

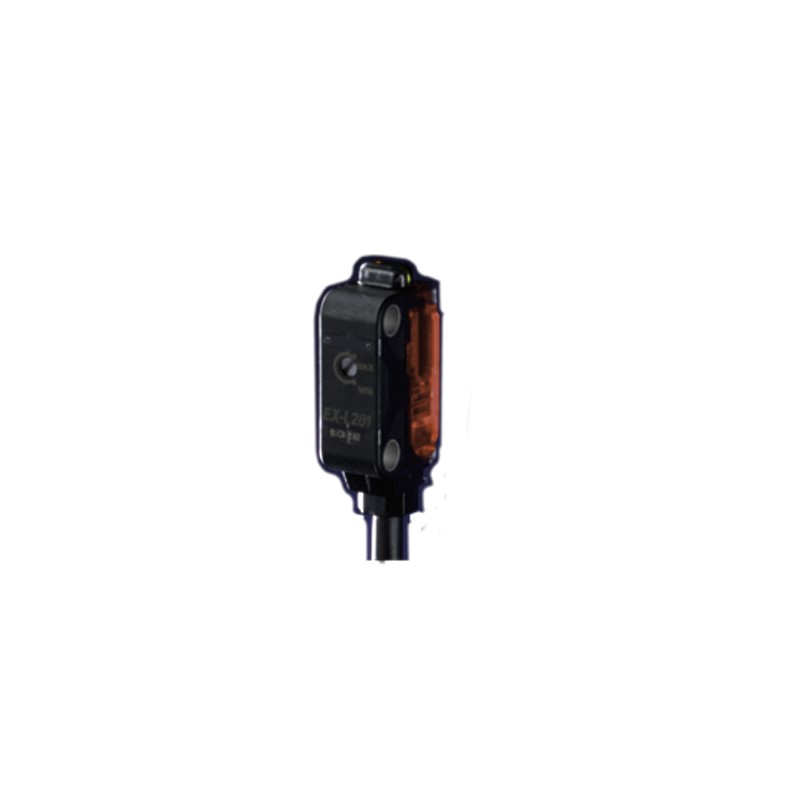

UEXL261 EX-L261 PANASONIC Laser, convergent reflexive, spot type, sensing range 20-50mm, convergent point 22..
UEXL261
EX-L261
EX-L261
PANASONIC
Laser, convergent reflexive, spot type, sensing range 20-50mm, convergent point 22mm, spot ø1mm, NPN, IP67, with sensitivity adjuster
Direct reflection digital laser, detection range 20-50 mm, convergence point 22mm, spot ø1mm, NPN, cable 2m, IP67, with sensitivity adjustment
EX-L261_Amplifier Built-in Ultra-compact Laser Sensor_Amplifier Built-in Ultra-compact Laser Sensor EX-L200_Convergent reflective type
Digital laser - PANASONIC > EX-L200 digital laser - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | EX-L261 |
| Part Number | EX-L261 |
| Product | Amplifier Built-in Ultra-compact Laser Sensor |
| Details | Convergent reflective type |
| Product name | Amplifier Built-in Ultra-compact Laser Sensor EX-L200 |
| Item | Specifications |
|---|---|
| Product Number | EX-L261 |
| Part Number | EX-L261 |
| Regulatory compliance | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Sensing range | 20 to 50 mm 0.787 to 1.969 in (Convergent point: 22 mm 0.866 in) (Note)The sensing range is specified for white non-glossy papar (100 x 100 mm 3.937 x 3.937 in) as the object. |
| Emission spot size (Typical) | ø1mm 0.039 in or less (at a sensing distance of 50 mm) |
| Sensing object | Opaque, translucent or transparent object (Note)Make sure to confirm detection with an actual sensor before use. |
| Minimum sensing object (Typical) | Gold wire of ø0.01 mm ø0.0004 in (Note) Typical values when the sensitivity adjuster is optimally adjusted. |
| Hysteresis | 20 % or less of operation distance |
| Repeatability | Perpendicular to sensing axis: 0.2 mm 0.0080 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 50 mA |
| Output:Output operation | Light-ON / Dark-ON selectable by the output operation switching input |
| Output:Short-circuit protection | Incorporated (short-circuit protection / inverse polarity protection) |
| Response time | 0.5 ms or less |
| Sensitivity adjuster | Continuously variable adjuster |
| Protection | IP67(IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition), Storage: -30 to +70 ℃ -22 to +158 ℉ |
| Ambient humidity | 35 to 85%RH , Storage: 35 to 85%RH |
| Emitting element | Red semiconductor laser Class 1 (IEC / JIS/ FDA/ GB/ EN/ KS) (Note：This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated May 8, 2019, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).) (Maximum output: 1 mW, Peak emission wavelength: 655 nm 0.026 mil) |
| Material | Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
| Cable | 0.15 mm2 4-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable |
| Weight | Net weight: 45 g approx Gross weight: 60 g approx |
| Accessory | MS-EXL2-3 (Mounting plate): 1 pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: EXL261 - EX-L261 | EX-L261 | 3 Mbytes |
|
