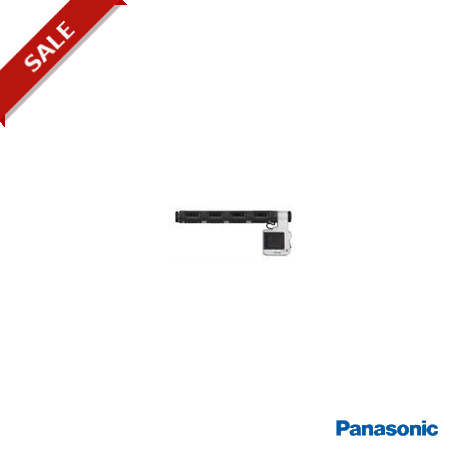

ER-TF04-EX PANASONIC Wide-area fan type ionizer, 4 air outlets, 400mm, 100-240VDC
ER-TF04-EX
PANASONIC
Wide-area fan type ionizer, 4 air outlets, 400mm, 100-240VDC
Ionizers - PANASONIC > Area ionizer - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | ER-TF04-EX |
| Part Number | ER-TF04-EX |
| Product | Wide-area Ionizer |
| Details | Wide-area fan type |
| Product name | Wide-area Ionizer ER-TF(Discontinued) |
| Item | Specifications |
|---|---|
| Product Number | ER-TF04-EX |
| Part Number | ER-TF04-EX |
| CE marking compliant directives | EMC Directive, RoHS Directive |
| Charge removal time | 1 sec. approx. (±1,000 V → ±100 V) (Note： Typical value at a distance of 200 mm 7.874 in from the front surface of the air outlet at the unit center at maximum fan speed.) |
| Ion balance | plus or minus10 V or less (Note：Typical value at a distance of 300 mm 11.811 in from the front surface of the air outlet at the unit center at maximum fan speed.) |
| Ozone generation | 0.02 ppm or less (Note： Typical value at a distance of 300 mm 11.811 in from the front surface of the air outlet at the unit center at maximum fan speed.) |
| Supply voltage | Accessory AC adapter input: 100 to 240 V AC plus or minus10 % 50/60 Hz (Output: 24 V DC) |
| Power consumption | 80 VA or less (at 100 V: 70 VA or less) |
| Discharge method | Steady-state DC |
| Discharge output voltage | plus or minus6,000 V approx. |
| Error output(ERROR) | NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1 V or less (at 50 mA sink current) |
| Error output:Output operation | OFF if abnormal discharge, object inserted into discharge window or fan problem detected; normally ON |
| Error output:Short-circuit protection | Incorporated |
| Indicators:Bar:POWER | Green LED (Lights up when power supplied) |
| Indicators:Bar:ERROR | Red LED (Lights up when discharge part error or fan error is detected) |
| Indicators:Bar:CHECK | Orange LED (Lights up when discharge part check or fan check is detected) |
| Indicators:Fan:Discharge part status | Yellow LED (Lights up when discharge part error or discharge part check is detected) |
| Indicators:Fan:Fan status | Yellow LED (Lights up when fan error or fan check is detected) |
| Ambient temperature | 0 to + 50 ℃+ 32 to + 122℉(No dew condensation), AC adapter: 0 to + 40 ℃+ 32 to + 104℉ |
| Ambient humidity | 35 to 65 % RH (No dew condensation) |
| Material | Bar unit enclosure: ABS, Fan unit enclosure: ABS, Discharge needles: Tungsten, Mounting bracket: SPCC |
| Weight | 1.0 kg approx. |
| Accessories | AC adapter (Note), F.G. connection cable: 1 pc., Spare replacement filters: 5 pcs., Three-pronged outlet with ground pin: 1 pc., Blindfold seals: 2 sheets (Note：Please prepare an AC cable separately as it is needed. The following cables are available as optionals: CN-ACCN-C2: AC cable (conforming to CCC), CN-ACKR-C2: AC cable (conforming to KTL)) |
Datasheet - PDF
