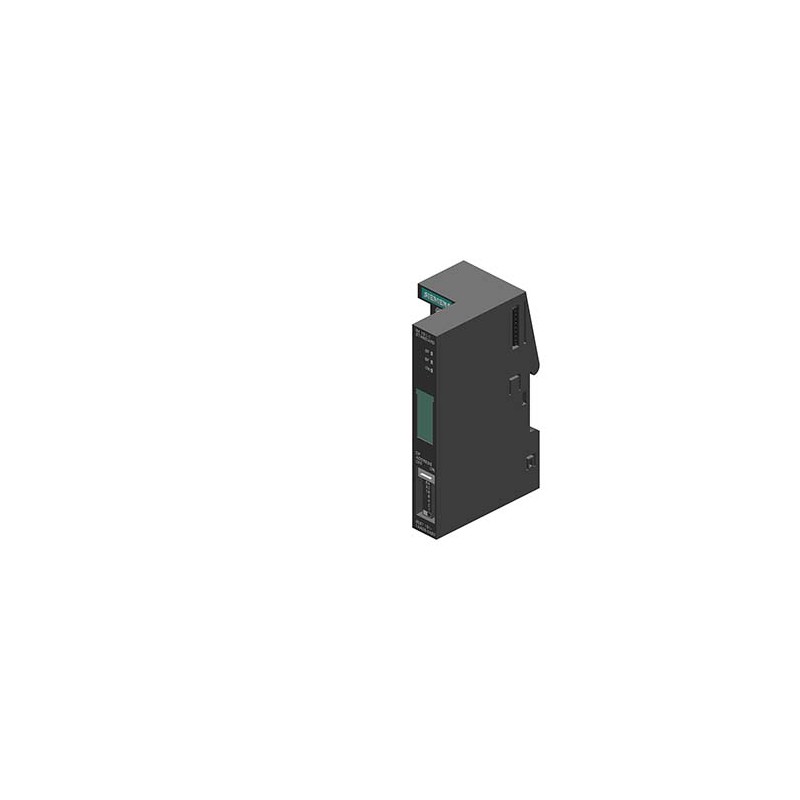

6AG1151-1AA06-7AB0 SIEMENS SIPLUS ET 200S IM 151-1 standard -25...+70°C with conformal coating based on 6ES7..
6AG1151-1AA06-7AB0
SIEMENS
SIPLUS ET 200S IM 151-1 standard -25...+70°C with conformal coating based on 6ES7151-1AA06-0AB0 . Interface module incl. termination module Data volume of 244 bytes each "for inputs and outputs; max. 63" I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be "connected; Bus connection via" 9-pin D-sub
SIPLUS ET 200S IM 151-1 Standard -25...+70°C with coating formed based on 6ES7151-1AA06-0AB0 . interface module incl. module closing data Volume 244 byte for inputs and outputs respectively; max. 63 I / o modules PROFIBUS DP V0 and V1 up to 2M with connectable; bus interface via 9-pole SUB-D
AUTOMATION SYSTEMS > SIPLUS Extreme (LOGO, S7-1200, S7-1500, etc)
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC001604 - Fieldbus, decentr. periphery - communication module
| Value | Unit | |
|---|---|---|
| Supporting protocol for TCP/IP (EF003050) | - | |
| Radio standard WLAN 802.11 (EF007179) | - | |
| Supporting protocol for Foundation Fieldbus (EF007522) | - | |
| Explosion safety category for gas (EF003997) | - | |
| Supporting protocol for DeviceNet (EF003059) | - | |
| Supporting protocol for PROFINET IO (EF007525) | - | |
| Supply voltage AC 50 Hz (EF007532) | ['-', '-'] | V |
| Supply voltage AC 60 Hz (EF007533) | ['-', '-'] | V |
| Supply voltage DC (EF007534) | ['20.4', '28.8'] | V |
| Voltage type of supply voltage (EF002991) | DC | |
| Supporting protocol for PROFIBUS (EF003052) | true | |
| Supporting protocol for CAN (EF003053) | false | |
| Supporting protocol for INTERBUS (EF003054) | false | |
| Supporting protocol for ASI (EF003051) | false | |
| Supporting protocol for KNX (EF003055) | false | |
| Supporting protocol for Modbus (EF003057) | false | |
| Supporting protocol for Data-Highway (EF003058) | false | |
| Supporting protocol for SUCONET (EF003060) | false | |
| Supporting protocol for LON (EF003017) | false | |
| Supporting protocol for SERCOS (EF006657) | false | |
| Supporting protocol for PROFINET CBA (EF007524) | false | |
| Supporting protocol for EtherNet/IP (EF007521) | false | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false | |
| Supporting protocol for DeviceNet Safety (EF007520) | false | |
| Supporting protocol for INTERBUS-Safety (EF006662) | false | |
| Supporting protocol for PROFIsafe (EF007526) | false | |
| Supporting protocol for SafetyBUS p (EF007527) | false | |
| Supporting protocol for other bus systems (EF003062) | false | |
| Radio standard Bluetooth (EF007178) | false | |
| Radio standard GPRS (EF008523) | false | |
| Radio standard GSM (EF008524) | false | |
| Radio standard UMTS (EF008525) | false | |
| IO link master (EF007298) | false | |
| System accessory (EF004118) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| With potential separation (EF003272) | true | |
| Fieldbus connection over separate bus coupler possible (EF004002) | false | |
| Rail mounting possible (EF003972) | true | |
| Wall mounting/direct mounting (EF007020) | false | |
| Front build in possible (EF007016) | true | |
| Rack-assembly possible (EF007018) | true | |
| Suitable for safety functions (EF001597) | false | |
| Category according to EN 954-1 (EF006782) | - | |
| SIL according to IEC 61508 (EF009889) | - | |
| Performance level according to EN ISO 13849-1 (EF007399) | - | |
| Appendant operation agent (Ex ia) (EF004141) | false | |
| Appendant operation agent (Ex ib) (EF004142) | false | |
| Explosion safety category for dust (EF003998) | None | |
| Width (EF000008) | 45.0 | mm |
| Height (EF000040) | 119.5 | mm |
| Depth (EF000049) | 75.0 | mm |
| SIPLUS ET 200S IM 151-1 standard -25...+70°C with conformal coating based on 6ES7151-1AA06-0AB0 . Interface module incl. termination module Data volume of 244 bytes each "for inputs and outputs; max. 63" I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be "connected; Bus connection via" 9-pin D-sub | ||
| General information | ||
| Product type designation | IM 151-1 ST | |
| Vendor identification (VendorID) | 806Ah | |
| Product function | ||
| ● Isochronous mode | No | |
| Supply voltage | ||
| Mains buffering | ||
| ● Mains/voltage failure stored energy time | 20 ms | |
| Input current | ||
| from supply voltage 1L+, max. | 200 mA | |
| Power loss | ||
| Power loss, typ. | 3.3 W | |
| Address area | ||
| Addressing volume | ||
| ● Inputs | 244 byte | |
| ● Outputs | 244 byte | |
| Interfaces | ||
| Interfaces/bus type | PROFIBUS DP | |
| Transmission procedure | RS 485 | |
| Transmission rate, max. | 12 Mbit/s; 9,6 / 19,2 / 45,45 / 93,75 / 187,5 / 500 kbit/s; 1,5 / 3 / 6 / 12 Mbit/s | |
| PROFIBUS DP | ||
| ● Output current, max. | 80 mA | |
| ● SYNC capability | Yes | |
| ● FREEZE capability | Yes | |
| ● Direct data exchange (slave-to-slave communication) | Yes | |
| ● Design of electrical connection | 9-pin sub D socket | |
| ● Cable length, max. | 1 200 m | |
| Protocols | ||
| Supports protocol for PROFINET IO | No | |
| PROFIBUS DP | Yes | |
| Protocols (Ethernet) | ||
| ● TCP/IP | No | |
| Interrupts/diagnostics/status information | ||
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Diagnostics indication LED | ||
| ● Bus fault BF (red) | Yes | |
| ● Group error SF (red) | Yes | |
| ● Monitoring 24 V voltage supply ON (green) | Yes | |
| Potential separation | ||
| between backplane bus and electronics | No | |
| between electronic block and PROFIBUS DP | Yes | |
| between supply voltage and electronics | No | |
| Isolation | ||
| Isolation tested with | 500 V DC | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| ● min. | -25 °C; = Tmin | |
| ● max. | 70 °C; = Tmax | |
| Altitude during operation relating to sea level | ||
| ● Installation altitude above sea level, max. | 5 000 m | |
| ● Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) | |
| Relative humidity | ||
| ● With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation | |
| Resistance | ||
| Use in stationary industrial systems | ||
| — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request | |
| — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * | |
| — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * | |
| Use on ships/at sea | ||
| — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request | |
| — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * | |
| — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * | |
| Usage in industrial process technology | ||
| — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) | |
| — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) | |
| Remark | ||
| — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 119.5 mm | |
| Depth | 75 mm | |
| Weights | ||
| Weight, approx. | 150 g | |
| last modified: | 08/25/2020 | |
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6AG1151-1AA06-7AB0 | |||||||||||||||||||||||||||||||||
| Product Description | SIPLUS ET 200S IM 151-1 standard -25...+70°C with conformal coating based on 6ES7151-1AA06-0AB0 . Interface module incl. termination module Data volume of 244 bytes each "for inputs and outputs; max. 63" I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be "connected; Bus connection via" 9-pin D-sub | |||||||||||||||||||||||||||||||||
| Product family | SIPLUS ET 200S IM 151-1 | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Price Group | 473 | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 32 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,173 Kg | |||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 8,30 x 12,70 x 6,90 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | CM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4047618074814 | |||||||||||||||||||||||||||||||||
| UPC | 804766473463 | |||||||||||||||||||||||||||||||||
| Commodity Code | 85176200 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | A&DSE/SIP ADD | |||||||||||||||||||||||||||||||||
| Product Group | 4572 | |||||||||||||||||||||||||||||||||
| Group Code | R740 | |||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 15.07.2016 | |||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
