NX1P2-9024DT1
NX010064E
NX1P29024DT1
OMRON
1
Available Ship on today

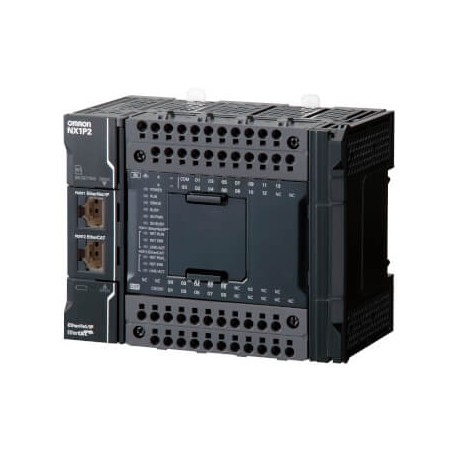

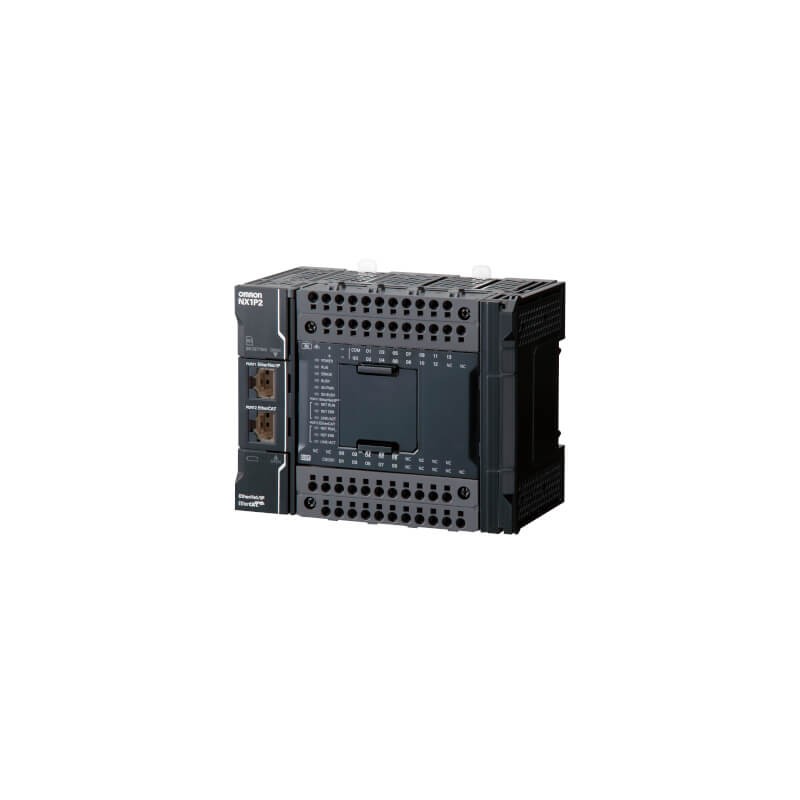

NX1P Machine Controller, 14/10 I/O Transistor (PNP), 4-axis PTP
Sysmac NX1P CPU with 24 Digital Transistor I/O (PNP), 1.5 MB memory, EtherCAT (0 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 1 serial
Integrated Automation > Machine Controllers NX1P2
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Primary task cycle time | 2 ms |
Program memory | 1.5 MB |
Variables memory | 2 MB |
Max. number of synchronous axes | 0 |
Max. number of PTP axes | 4 |
Number of digital inputs | 14 |
Input type | PNP/NPN |
Number of digital outputs | 10 |
Output type | PNP |
Number of serial option boards | 1 |
Max. number of expansion units | 8 |
Max. number of remote I/O nodes | 16 |
Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
Number of Ethernet ports | 2 |
Number of USB ports | 0 |
Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
Real-time clock | |
Supply voltage DC | 20.4-28.8 V |
Height | 100 mm |
Width | 130 mm |
Depth | 71 mm |
Title: | Size: | Type: |
---|---|---|
NX1P2-9024DT1 NX1P29024DT1 NX010064E ES_NX1P2-9024DT1.pdf | 2 Mbytes | |
NX1P2-9024DT1 NX1P29024DT1 NX010064E panel_building_brochure_en.pdf | 3 Mbytes |
