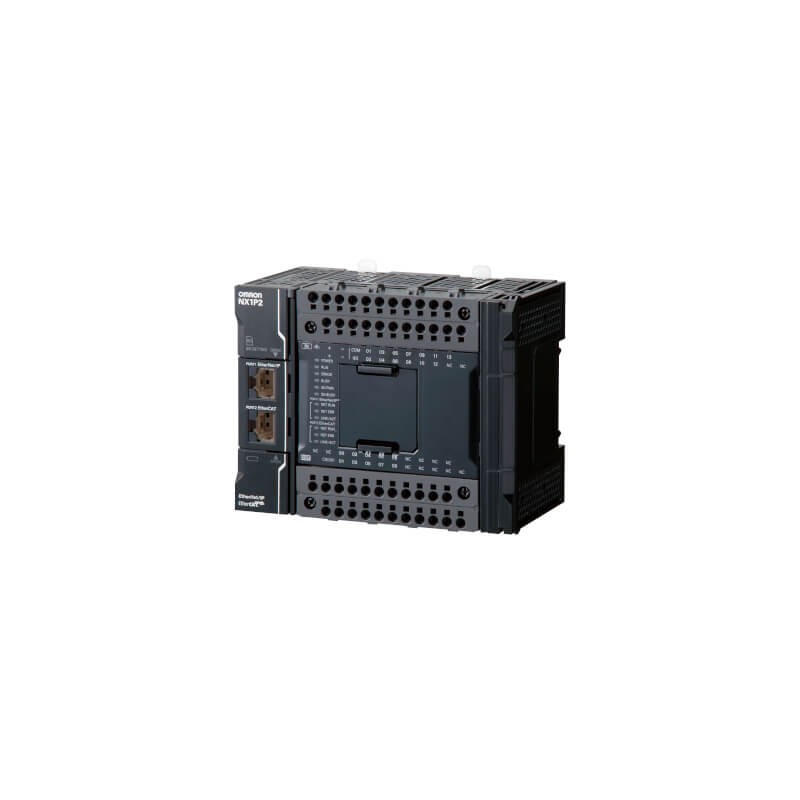

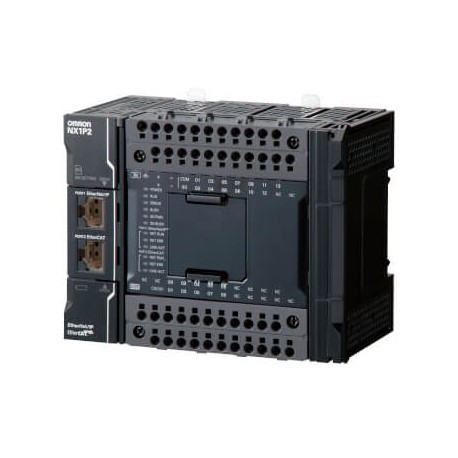

NX1P2-9024DT NX010063G 672509 OMRON NX1P Machine Controller, 14/10 I/O Transistor (NPN), 4-axis PTP
NX1P2-9024DT
NX010063G
NX1P29024DT
OMRON
NX1P Machine Controller, 14/10 I/O Transistor (NPN), 4-axis PTP
Sysmac NX1P CPU with 24 Digital Transistor I/O (NPN), 1.5 MB memory, EtherCAT (0 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 1 serial
Integrated Automation > Machine Controllers NX1P2
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Primary task cycle time | 2 ms |
| Program memory | 1.5 MB |
| Variables memory | 2 MB |
| Max. number of synchronous axes | 0 |
| Max. number of PTP axes | 4 |
| Number of digital inputs | 14 |
| Input type | PNP/NPN |
| Number of digital outputs | 10 |
| Output type | NPN |
| Number of serial option boards | 1 |
| Max. number of expansion units | 8 |
| Max. number of remote I/O nodes | 16 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Number of Ethernet ports | 2 |
| Number of USB ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Real-time clock | |
| Supply voltage DC | 20.4-28.8 V |
| Height | 100 mm |
| Width | 130 mm |
| Depth | 71 mm |
| Weight | 590 g |
Accessories
| GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply | |
| GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply | |
| GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches | |
| HMC-SD491 | 4 GB SD memory card | |
| NX1W-ADB21 | Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000 | |
| NX1W-CIF01 | Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board | |
| NX1W-CIF11 | Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board | |
| NX1W-CIF12 | Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board | |
| NX1W-DAB21V | Sysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000 | |
| NX1W-MAB221 | Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000 | |
| SYSMAC-SE201L | Sysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately) | |
| W4S1-03B | 3-port basic Ethernet switch | |
| W4S1-05D | 5-port enhanced Ethernet switch | |
| XS6W-6LSZH8SS100CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m | |
| XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m | |
| XS6W-6LSZH8SS200CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m | |
| XS6W-6LSZH8SS20CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m | |
| XS6W-6LSZH8SS500CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m | |
| XS6W-6LSZH8SS50CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NX1P2-9024DT NX1P29024DT NX010063G ES_NX1P2-9024DT1.pdf | 2 Mbytes |
 |
| NX1P2-9024DT NX1P29024DT NX010063G panel_building_brochure_en.pdf | 3 Mbytes |
|
