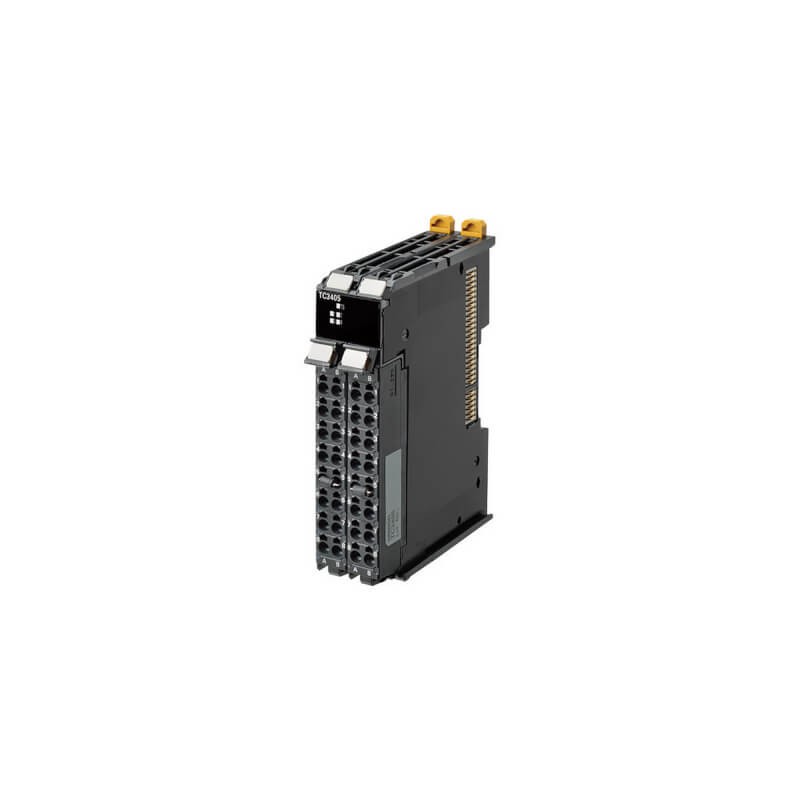

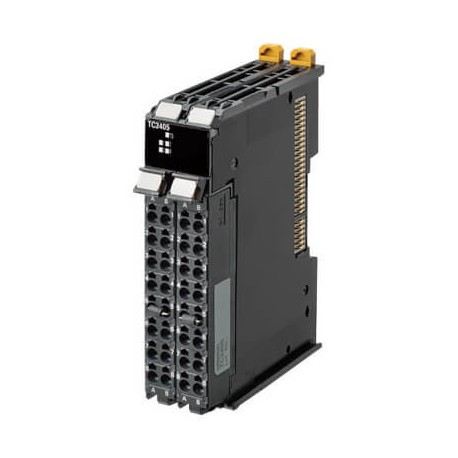

NX-TC3405 NXTC1004G 680543 OMRON 4 loops, Pt100 input/thermocouple, 4 PNP 24 Vdc, 21 mA/point digital output..
NX-TC3405
NXTC1004G
NXTC3405
OMRON
4 loops, Pt100 input/thermocouple input, 4 digital outputs PNP 24 Vdc, 21 mA/point, control of heat or cool, alarm of breaking of the heater, terminals, Push-in Plus
4 loops, Thermocouple/Pt100 input, PNP 4 Digital Outputs 24 VDC, 21mA/point, Heat or Cool control, Heater burnout alarm, Push-in Plus terminals
Integrated Automation > Machine I/O NX-series
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Temperature control |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 4 |
| Digital output type | PNP, PWM |
| Number of analog inputs | 4 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | None |
| Input circuit type | Isolated |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 50 ms/unit |
| Signal processing | Free running |
| Control function | Heat or cool |
| Heater burnout detection | |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 2 |
| Detachable I/O connector | |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 24 mm |
| Depth | 71 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
| NX-TC3405 NXTC3405 NXTC1004G ES_NX-TC2408.pdf | 4 Mbytes |
|
| NX-TC3405 NXTC3405 NXTC1004G h229_nx_series_temperature_control_unit_nx_tc_datasheet_en.pdf | 4 Mbytes |
|
