OMRONIntegrated AutomationMACHINE I/O NX-SERIESNX-ID5342 NX029097E NXID5342,1 OMRON 16 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connec..

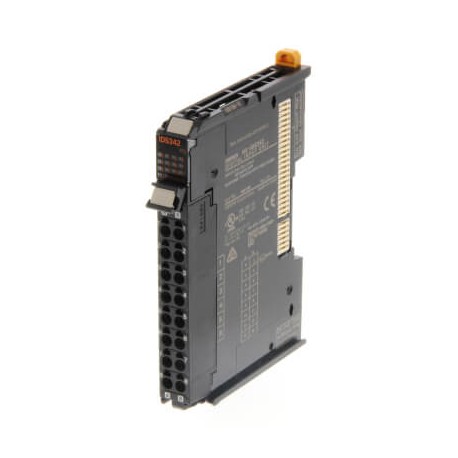

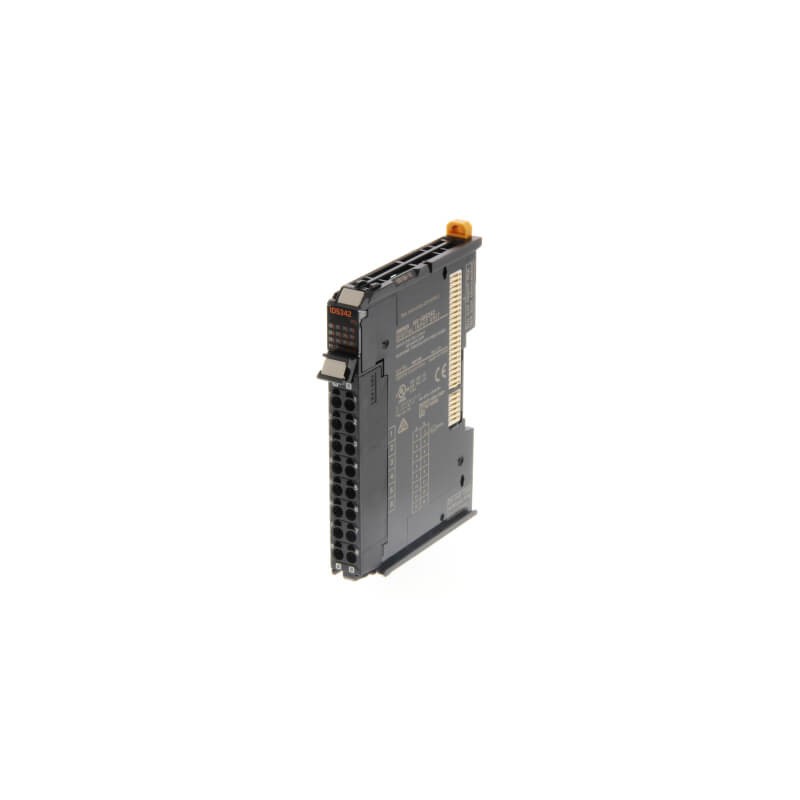

OMRON NX-ID5342 NX029097E NXID5342.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NX-ID5342 NX029097E NXID5342,1 OMRON 16 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connec..

Reference: NX-ID5342

Code: NX029097E

Catalog Number: NXID5342.1

Manufacturer: OMRON

Description:

16 Digital Inputs, Standard speed, NPN 24 VDC, screwless push-in connector, 12 mm wide

Categories:

  • PLC's > Fieldbus, decentr. periphery - digital I/O module
  • OMRON > Integrated Automation > Machine I/O NX-series

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 165,42 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

I/O systemNX I/O Bus
Type of moduleDigital I/O
Number of digital inputs16
Digital input typeNPN
OFF/ON delay0.02-0.4 ms
Number of digital outputs0
Digital output typeNone
Output current0 A
Short-circuit protected outputs
Connection method1-wire
Signal processingFree running, Standard speed, Synchronous
IO-Link master
I/O connection typePush-in
Number of I/O connectors1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508None
Communication port(s)None
Number of IOV (V+) terminals0
Number of IOG (V-) terminals0
Number of COM terminals0
Degree of protection (IP)IP20
Product Height (unpacked)104.5 mm
Product Width (unpacked)12 mm
Product Depth (unpacked)80.1 mm
Product Weight (unpacked)87 g

Accessories

NX-AUX02Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins)
NX-PC0010NX I/O power connection unit, IOG, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0020NX I/O power connection unit, IOV, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0030NX I/O power connection unit, IOV+IOG, 5-24 V DC input, 8 + 8 terminals, screwless push-in connector, 12mm wide

DATASHEET - PDF

Title
Size
Type
NX-ID5342 NXID5342.1 NX029097E ES_NX-ID6142-5.pdf
4 Mbytes
NX-ID5342 NXID5342.1 NX029097E panel_building_brochure_en.pdf
3 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
