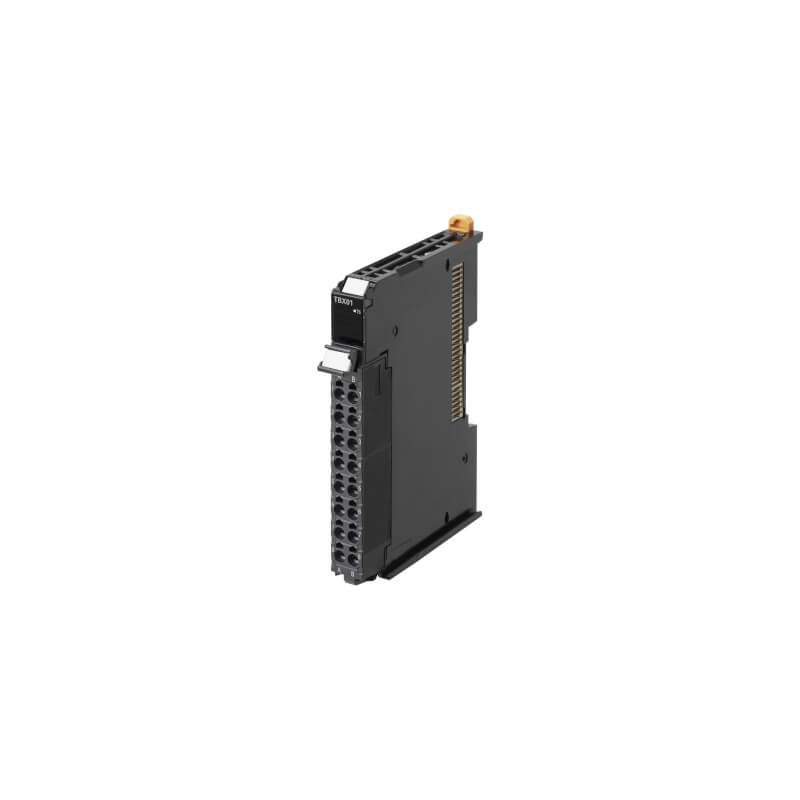

NX-OD3268 NX020110G 646461 OMRON NX Unit 4 standard digital outputs, PNP 24 Vdc, 2 A/point, 8 A/NX unit, pus..
NX-OD3268
NX020110G
NXOD3268
OMRON
Unit NX - 4 digital outputs-standard, PNP 24 Vdc, 2 A/point, 8 A/unit NX, connector, push-in, 12 mm wide
4 Digital Outputs, Standard speed, PNP 24 VDC, 2 A/point, 8 A/NX unit, screwless push-in connector, 12 mm wide
Integrated Automation > Machine I/O NX-series
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 4 |
| Digital output type | PNP |
| Permitted voltage at output | 15.0-28.8 V |
| Output current | 2 A |
| Short-circuit protected outputs | |
| Connection method | 2-wire, 3-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Number of IOV (V+) terminals | 6 |
| Number of IOG (V-) terminals | 6 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 70 g |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| NX-OD3268 NXOD3268 NX020110G nx_had_brochure_en.pdf | 2 Mbytes |
 |
