10356-10400 AA048363E 1035610400 OMRON Common Elec Spare Part Cable, XMCP to CCM Adaptor, 6ft
10356-10400
AA048363E
1035610400
OMRON
Common - Elec Spare_Part Cable, XMCP to CCM Adaptor, 6ft
Sensors > Accessories/spare parts for robotic arm
Home > OMRON
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info

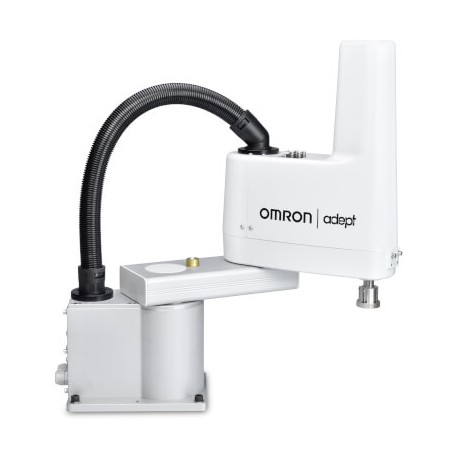

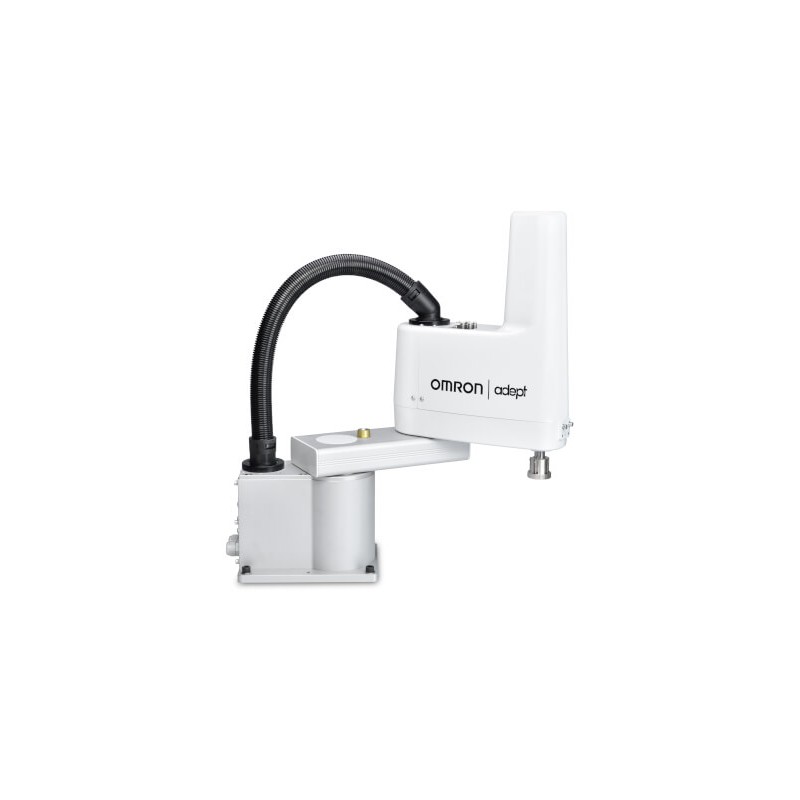

▲Mid-size SCARA robot for material handling, assembly, precision machining and adhesive application
- Ethernet capability to control the robot through the familiar programming language (IEC 61131-3) of NX/NY/NJ machine controller
- Good repeatability for precision assembly
- High payload for using tools for screw-driving and adhesive application
- Minimum footprint with separate controller
- Robot with integral power and signal cables
- Reach: 450, 500 and 650 mm models
- 5 kg max payload
Ordering information
Single-robotsystem
Multi-robot system
Cobra 650
| Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|
| Cobra 650 | Robot + integral power and signal cables + eMotionBlox-40M amplifier with fully integrated controls | Typical for use in single robot system | XSYS cable with jumpers, 1.8 m/6 ft (13323-000) | 17201-16500 |
| Cobra 650 Add-On | Robot + integral power and signal cables + eMotionBlox-40M amplifier + required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems | XSYS cable with jumpers, 1.8 m/6 ft (13323-000) XSYS cable, 4.5 m/15 ft (11585-000) DB9 splitter (00411-000) 1394 latch cable, 4.5 m/15 ft (13632-045) eV+ license to connect to controller (14529-103) | 17203-16500 |
Cobra 500
| Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|
| Cobra 500 | Robot + integral power and signal cables + eMotionBlox-40M amplifier with fully integrated controls | Typical for use in single robot system | XSYS cable with jumpers, 1.8 m/6 ft (13323-000) | 17201-15000 |
| Cobra 500 Add-On | Robot + integral power and signal cables + eMotionBlox-40M amplifier + required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems | XSYS cable with jumpers, 1.8 m/6 ft (13323-000) XSYS cable, 4.5 m/15 ft (11585-000) DB9 splitter (00411-000) 1394 latch cable, 4.5 m/15 ft (13632-045) eV+ license to connect to controller (14529-103) | 17203-15000 |
Cobra 450
| Type | Overview | Purpose | Bundled accessories | Order code |
|---|---|---|---|---|
| Cobra 450 | Robot + integral power and signal cables + eMotionBlox-40M amplifier with fully integrated controls | Typical for use in single robot system | XSYS cable with jumpers, 1.8 m/6 ft(13323-000) | 17201-14500 |
| Cobra 450 Add-On | Robot + integral power and signal cables + eMotionBlox-40M amplifier + required connection cables | Typically added to systems with an existing SmartController EX to create multi-robot systems | XSYS cable with jumpers, 1.8 m/6 ft (13323-000) XSYS cable, 4.5 m/15 ft (11585-000) DB9 splitter (00411-000) 1394 latch cable, 4.5 m/15 ft (13632-045) eV+ license to connect to controller (14529-103) | 17203-14500 |
Options
Referto the section "Options for Hornet/Quattro/Viper/Cobra/eCobra robots"for details.
Specifications
| Product name | Cobra | |||
|---|---|---|---|---|
| Size | 650 | 500 | 450 | |
| Model | 1720⬜-16500 | 1720⬜-15000 | 1720⬜-14500 | |
| Number ofaxes | 4 | |||
| Mounting | Table/Floor | |||
| Reach | 650 mm | 500 mm | 450 mm | |
| Maximum payload | 5 kg | |||
| Repeatability | XY | ±0.02 mm | ||
| Z | ±0.01 mm | |||
| Θ | ±0.005° | |||
| Joint range | Joint 1 | ±125° | ||
| Joint 2 | ±145° | |||
| Joint 3 | 200 mm | |||
| Joint 4 | ±360° | |||
| Inertia moment (max) | Joint 4 | 450 kg-cm2 | ||
| Joint speeds | Joint 1 | 450°/s | ||
| Joint 2 | 720°/s | |||
| Joint 3 | 1120 mm/s | 1100 mm/s | ||
| Joint 4 | 1940°/s | |||
| Cycle times(Payload 2.0 kg) | Burst | 0.43 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). | 0.51 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). | 0.49 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). |
| Sustained | 0.60 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). | 0.60 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). | 0.64 s 2 Adept cycle,in mm 25/305/25 (seconds, at 20ºC ambient). | |
| Powerrequirements | 24 VDC: 6 A | |||
| 200 to 240 VAC: 10 A, single-phase | ||||
| Protection | IP20 | |||
| Clean Class | – | |||
| Environmentrequirements | Ambient temperature | 5 to 40ºC | ||
| Humidity range | 35% to 90% (non-condensing) | |||
| Weight | 31 kg | 29 kg | ||
| Basic configuration | Controller | eMB-40M | ||
| On-board I/O (Input/Output) | 12/8 | |||
| Conveyor tracking input | 2 | |||
| RS-232C serial communicationsport | 1 | |||
| Programming environment | ACE, PackXpert, ePLC | |||
| ACE Sight | Yes | |||
| ePLC Connect | Yes | |||
| ePLC I/O | Yes | |||
| Connectablecontroller 2 Choose the controller to suit your application. | eMotionBlox-40M, SmartControllerEX, NX/NY/NJ Series | |||
Dimensions
Datasheet - PDF
