View larger

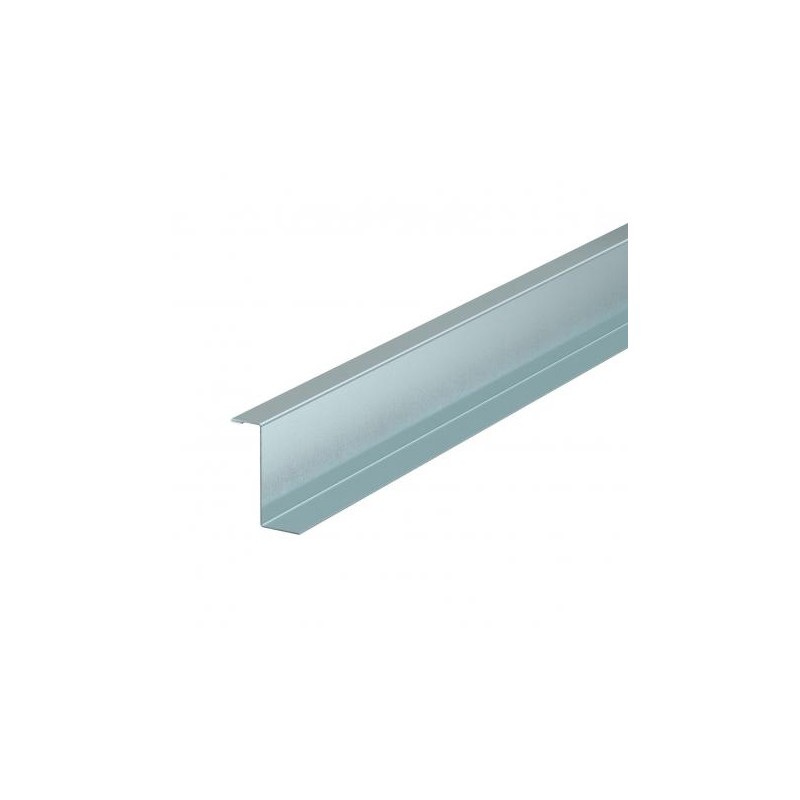

LKM TWS45 6249871 OBO BETTERMANN Partition separator45x2000mm, galvanized steel in band, DIN EN 10346
LKM TWS45
6249871
OBO BETTERMANN
2 m.
Partition separator45x2000mm, galvanized steel in band, DIN EN 10346
Partition LKM/TWS45. Partition to divide the LKM cable trunking, 60 mm trunking height, for different voltage levels.The loop perforation in the base transfers the equipotential bonding to the partition.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3183 kg CO2e / 1 Meter |
| Colour | zinc |
| Dimension | 45x2000mm |
| Dimension a | 45 mm |
| Fastening type | Plug-in |
| Halogen-free | yes |
| Height | 45 mm |
| Length | 2000 mm |
| Material | Steel |
| Permitted temperature range, max. | 90 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Self-extinguishing | no |
| Surface | Strip galvanized |
| Trunking depth | 60 mm |
| Version for | Single |
| Width | 33 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| Length (EF001438) | 2000 mm |
| Model (EF000010) | Single |
| Material (EF002169) | Steel |
| Halogen free (EF000025) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Surface protection (EF000139) | Pre-galvanised |
| Type of fastening (EF002442) | Pluggable |
| Impact strength (EF004293) | IK10 |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
