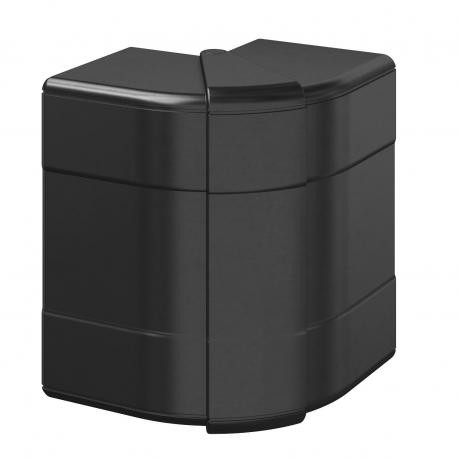

GK-AH53100SW 6113053 OBO BETTERMANN GK-AH53100SW outer angle, variable 110x88x88 Polycarbonate/Acrylonitrile..
GK-AH53100SW
6113053
OBO BETTERMANN

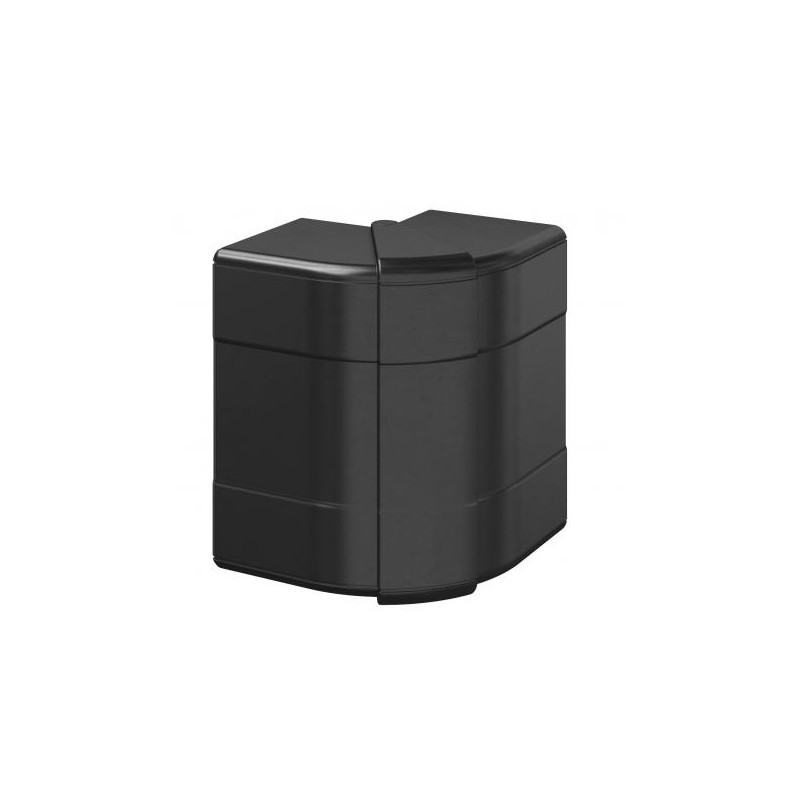

GK-AH53100SW outer angle, variable 110x88x88 Polycarbonate/Acrylonitrile-butadiene-styren, PC/ABS
External corner hood, for device installation trunking Rapid 45-2 type GK-53100. External corner for changing the direction of Rapid 45-2 device installation trunking. The fittings can be adjusted between 80‒110°.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle range, max. | 110 mm |
|---|---|
| Angle range, min. | 80 mm |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6104 kg CO2e / 1 Piece |
| Colour | Jet black; RAL 9005 |
| Cover mounting type | Cross-over |
| Dimension | 110x88x88 |
| Duct connector | no |
| for duct width | 100 mm |
| for trunking height | 53 mm |
| Halogen-free | yes |
| Height | 55 mm |
|---|---|
| Length | 88 mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Mounting perforation in base | no |
| Number of covers | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Protective film | no |
| Symmetrical | yes |
| Version for | Hood fitting |
| Width | 110 mm |
| Feature Name | Feature Value |
|---|---|
| Number of covers (EF004430) | 1 |
| Cover width 1 (EF005147) | 0 mm |
| Cover width 2 (EF005148) | 0 mm |
| Cover width 3 (EF005149) | 0 mm |
| Symmetric (EF005329) | Yes |
| Model (EF000010) | Moulded hood |
| Angle (EF005434) | 80 ° |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | PC/ABS |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| With protective foil (EF005266) | No |
| With duct connector (EF004826) | No |
| Bottom perforation (EF004545) | No |
| Mounting method cover (EF002922) | Spanned |
| With cable fixing clip (EF004815) | No |
| Operating temperature (EF001742) | -5 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
