GK-53100LGR 6113002 OBO BETTERMANN CHANNEL P/MECHANISMS RAPID 45-2, 1-COMPARTMENT, GK-53100LGR
GK-53100LGR
6113002
OBO BETTERMANN
12 m.

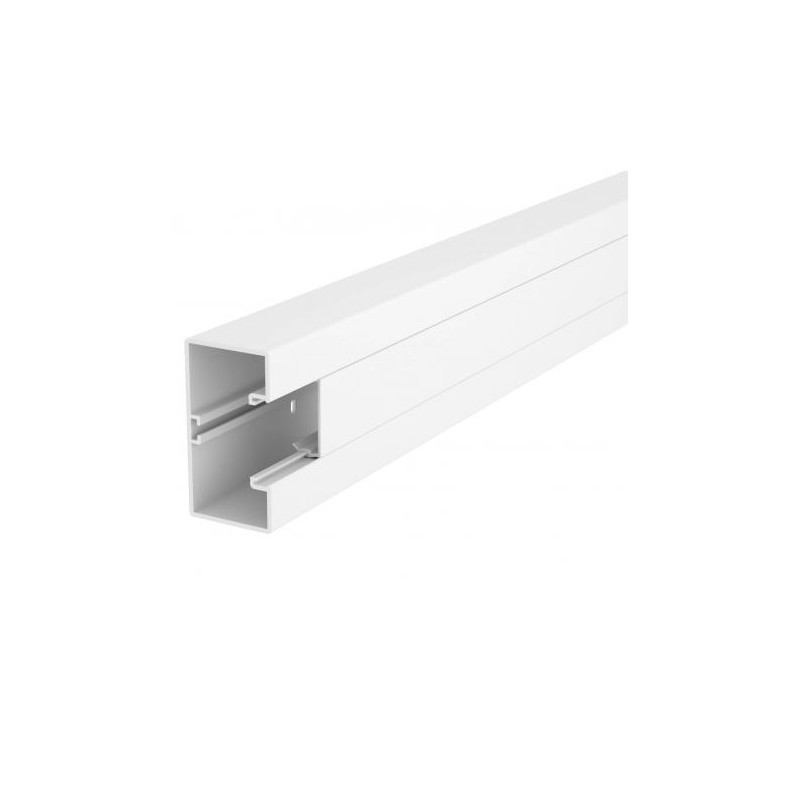

CHANNEL P/MECHANISMS RAPID 45-2, 1-COMPARTMENT, GK-53100LGR
Channel portamecanismos Rapid 45-2, 1-compartment 53x100x2000 Light grey, RAL 7035 Polyvinyl chloride, PVC
Device installation trunking Rapid 45-2, trunking width 100, trunking height 53. Trunking base and cover with base perforation for direct wall mounting.
LFS cable routing systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Antibacterial treatment | no |
|---|---|
| Base perforation | With base perforation |
| Cable retaining clip | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,656 kg CO2e / 1 Meter |
| Colour | Light grey; RAL 7035 |
| Cover mounting type | Internal |
| Cover supplied | yes |
| Cover width | 45 mm |
| Dimension | 53x100x2000 |
| Duct connector | no |
| Halogen-free | no |
| Height | 53 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Mounting perforation in base | yes |
|---|---|
| Number of covers | 1 |
| Number of insertable partitions | 1 |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Protective film | yes |
| Rear panel version (inner side) | Continuous C profile |
| Rectangular shape | yes |
| Symmetrical | yes |
| Usable cross-section | 4400 mm² |
| Width | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CABLE ROUTING SYSTEMS OBO EN.pdf | 15 Mbytes |
|
| PDF CATALOGUE INSTALLATION SYSTEMS OBO EN.pdf | 23 Mbytes |
|
