> >>2170263 UNITRONIC BUS CAN 1X2X0,34 LAPP UNITRONIC BUS CAN 1X2X0,34
Previous Product Next Product

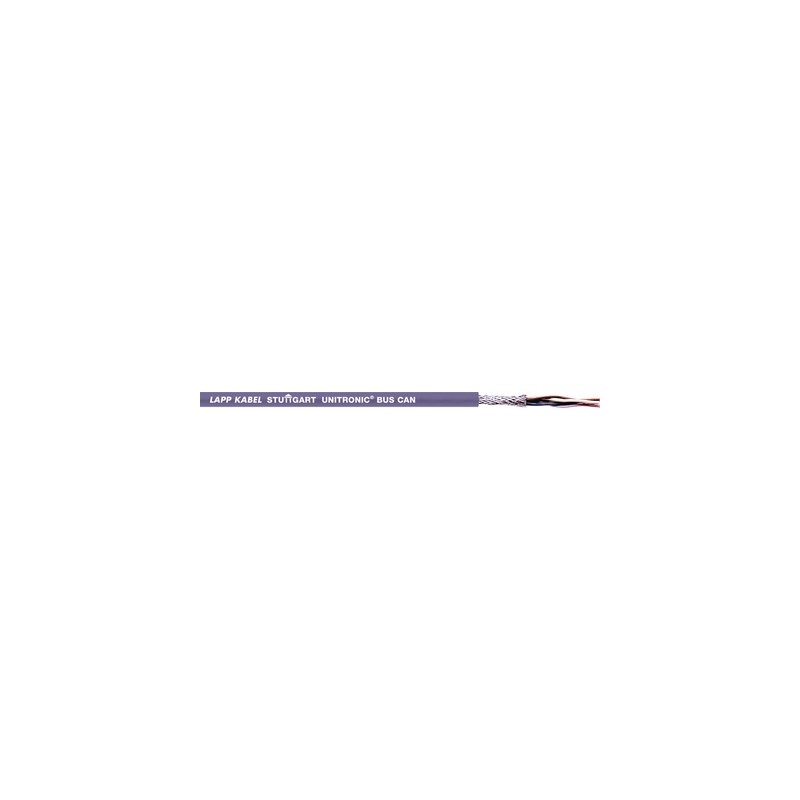

2170263 UNITRONIC BUS CAN 1X2X0,34 LAPP UNITRONIC BUS CAN 1X2X0,34 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2170263 UNITRONIC BUS CAN 1X2X0,34 LAPP UNITRONIC BUS CAN 1X2X0,34

2170263

UNITRONIC BUS CAN 1X2X0,34

LAPP

UNITRONIC BUS CAN 1X2X0,34

UNITRONIC® BUS CAN

More details


Cables > Data and communication cable

UNITRONIC BUS cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $1.94
Unit price: $1.94

Quantity Price
100+$1.91
200+$1.67
300+$1.57
400+$1.52
500+$1.50
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


For CAN based communication systems like CANopen, flame retardant acc. IEC 60332-1-2, temperature range from -40°C up to +80°C

CAN = Controller Area Network

Application range

  • Fixed Installation

Product features

  • Maximum bit rate: 1 Mbit/s for 40 m
    segment length
  • Larger conductor cross-section is necessary with increasing length. Refer to the table below (reference values from ISO 11898).
  • ISO 11898 makes recommendations for the segment length, cable cross section and bit rate
  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Standardised internationally in ISO 11898
  • UL/CSA type CMX (UL 444)

Product Make-up

  • 0.22 + 0.34 + 0.5: bare stranded conductor, 7-wire
    0.75: bare stranded conductor, fine-wire
  • Core insulation: foam skin
  • Colour-coded in accordance with DIN 47100
  • Copper braid
  • Outer sheath: PVC, violet (RAL 4001)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Mutual capacitance

  • (800 Hz) max. 40 nF/km

Peak operating voltage

  • (not for power applications) 250 V

Conductor resistance

  • (loop): max. 186 ohm/km

Minimum bending radius

  • Fixed installation: 8 x outer diameter

Test voltage

  • Core/core: 1500 V rms

Characteristic impedance

  • 120 ohm

Temperature range

  • Fixed installation: -30°C to +80°C
  • Flexing: -5°C to +70°C

Datasheet - PDF

▲
Title: Size: Type:
2170263 UNITRONIC BUS CAN 1X2X0,34 2170263 EN_2170261.pdf 177 Kbytes 2170263 UNITRONIC BUS CAN 1X2X0,34 2170263 EN_2170261.pdf
