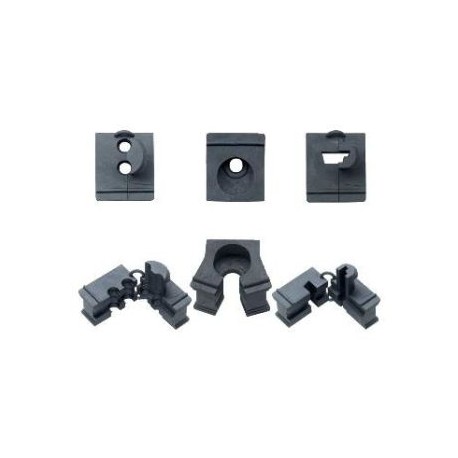

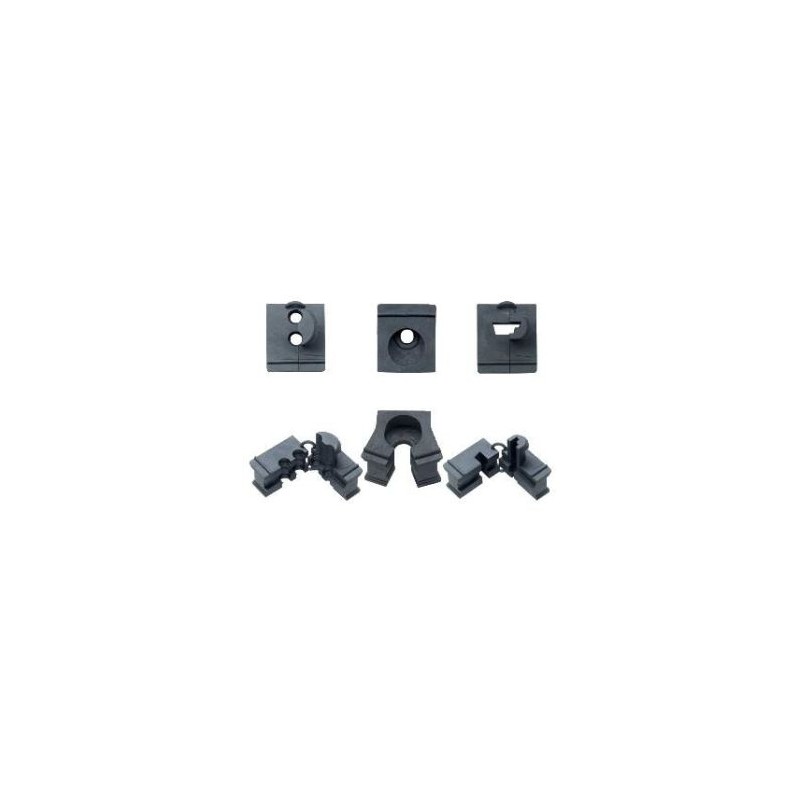

KDT/ZE 2X4 87121284 MURRPLASTIK Cable entry systems and holders Cable entry grommet, type KDT/xE Multi-line grom
87121284
MURRPLASTIK
10
Cable entry systems and holders Cable entry grommet, type KDT/xE Multi-line grommet 2-line
KDT/ZE 2x4 Manguito doble
Wall plates and cable glands
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲In conjunction with the KDL/E cable entry system, the KDT/xE cable entry grommet can be used to easily route pre-assembled cables e.g. in control cabinets. The grommet is 2-pce. and is positioned around the cable. The grommets are equipped with catch hooks that anchor themselves in the KDL/E when positioning. Strain relief for type KDT/ZE is achieved using a simple cable tie. Type KDT/VE is a vario grommet without strain relief which covers a larger clamping range.
Labs free
UV-resistant
-40°C – 80°C
Thermoplastic rubber
HB
CSA approval
UR approval
| Type | Order No. | Colour | for Ø mm | For opening small / large | No. of openings | Pack qty. | Suitable for Conduit | ||
|---|---|---|---|---|---|---|---|---|---|
Grommet, small | |||||||||
| KDT/ZE 03 | 87121210 | Black | – 3 – 4 | yes / / no | 1 | 10 | |||
| KDT/ZE 04 | 87121212 | Black | – 4 – 5 | yes / / no | 1 | 10 | |||
| KDT/ZE 05 | 87121214 | Black | – 5 – 6 | yes / / no | 1 | 10 | |||
| KDT/ZE 06 | 87121216 | Black | – 6 – 7 | yes / / no | 1 | 10 | |||
| KDT/ZE 07 | 87121218 | Black | – 7 – 8 | yes / / no | 1 | 10 | |||
| KDT/ZE 08 | 87121220 | Black | – 8 – 9 | yes / / no | 1 | 10 | |||
| KDT/ZE 09 | 87121222 | Black | – 9 – 10 | yes / / no | 1 | 10 | |||
| KDT/ZE 10 | 87121224 | Black | – 10 – 11 | yes / / no | 1 | 10 | |||
| KDT/ZE 11 | 87121226 | Black | – 11 – 12 | yes / / no | 1 | 10 | |||
| KDT/ZE 12 | 87121228 | Black | – 12 – 13 | yes / / no | 1 | 10 | |||
| KDT/ZE 13 | 87121230 | Black | – 13 – 14 | yes / / no | 1 | 10 | |||
| KDT/ZE 14 | 87121232 | Black | – 14 – 15 | yes / / no | 1 | 10 | |||
| KDT/ZE 15 | 87121234 | Black | – 15 – 16 | yes / / no | 1 | 10 | |||
Grommet, large | |||||||||
| KDT/ZE 16 | 87121236 | Black | – 16 – 17 | no / / yes | 1 | 10 | |||
| KDT/ZE 17 | 87121238 | Black | – 17 – 18 | no / / yes | 1 | 10 | |||
| KDT/ZE 18 | 87121240 | Black | – 18 – 19 | no / / yes | 1 | 10 | |||
| KDT/ZE 19 | 87121242 | Black | – 19 – 20 | no / / yes | 1 | 10 | |||
| KDT/ZE 20 | 87121244 | Black | – 20 – 21 | no / / yes | 1 | 10 | |||
| KDT/ZE 21 | 87121246 | Black | – 21 – 22 | no / / yes | 1 | 10 | |||
| KDT/ZE 22 | 87121248 | Black | – 22 – 23 | no / / yes | 1 | 10 | |||
| KDT/ZE 23 | 87121250 | Black | – 23 – 24 | no / / yes | 1 | 10 | |||
| KDT/ZE 24 | 87121252 | Black | – 24 – 25 | no / / yes | 1 | 10 | |||
| KDT/ZE 25 | 87121254 | Black | – 25 – 26 | no / / yes | 1 | 10 | |||
| KDT/ZE 26 | 87121256 | Black | – 26 – 27 | no / / yes | 1 | 10 | |||
| KDT/ZE 27 | 87121258 | Black | – 27 – 28 | no / / yes | 1 | 10 | |||
| KDT/ZE 28 | 87121260 | Black | – 28 – 29 | no / / yes | 1 | 10 | |||
| KDT/ZE 29 | 87121262 | Black | – 29 – 30 | no / / yes | 1 | 10 | |||
| KDT/ZE 30 | 87121264 | Black | – 30 – 31 | no / / yes | 1 | 10 | |||
Variable cable grommet (Protection class IP 42) | |||||||||
| KDT/VE 3-7 | 87121272 | Black | – 3 – 7 | yes / / no | 1 | 10 | |||
| KDT/VE 7-10 | 87121274 | Black | – 7 – 10 | yes / / no | 1 | 10 | |||
Multi-line grommet 2-line | |||||||||
| KDT/ZE 2x4 double grommet | 87121284 | Black | – 4 – | yes / / no | 2 | 10 | |||
| KDT/ZE 2x5 double grommet | 87121286 | Black | – 5 – | yes / / no | 2 | 10 | |||
| KDT/ZE 2x6 double grommet | 87121288 | Black | – 6 – | yes / / no | 2 | 10 | |||
| KDT/ZE 2xASI double grommet | 87121280 | Black | yes / / no | 2 | 10 | ||||
| KDT/ZE 2x8 double grommet | 87121291 | Black | – 8 – | yes / / no | 2 | 10 | |||
Multi-line grommet 4-line | |||||||||
| KDT/ZE 2x7 double grommet | 87121290 | Black | – 7 – | yes / / no | 2 | 10 | |||
| KDT/ZE 4x2 quadruple grommet | 87121292 | Black | – 2 – | yes / / no | 4 | 10 | |||
| KDT/ZE 4x3 quadruple grommet | 87121293 | Black | – 3 – | yes / / no | 4 | 10 | |||
| KDT/ZE 4x4 quadruple grommet | 87121294 | Black | – 4 – | yes / / no | 4 | 10 | |||
| KDT/ZE 4x5 quadruple grommet | 87121295 | Black | – 5 – | yes / / no | 4 | 10 | |||
| KDT/ZE 4x6 quadruple grommet | 87121296 | Black | – 6 – | yes / / no | 4 | 10 | |||
ASI bushing (for ASI cable) | |||||||||
| KDT/ZE ASI | 87121282 | Black | yes / / no | 1 | 10 | ||||
Dummy plug for ASI grommet | |||||||||
| BST KDT/ZE ASI | 87121281 | Black | 10 | ||||||
Grommet adapter (adapter for small grommet) | |||||||||
| ATG/E | 87121268 | Black | no / / yes | 1 | 10 | ||||
Hose grommet | |||||||||
| SDT/ZE 07 | 87174250 | Black | yes / / no | 1 | 10 | M10/P07 | |||
| SDT/ZE 09 | 87174252 | Black | yes / / no | 1 | 10 | M12/P09 | |||
| SDT/ZE 11 | 87174254 | Black | yes / / no | 1 | 10 | M16/P11 | |||
| SDT/ZE 16 | 87174256 | Black | no / / yes | 1 | 10 | M20/P16 | |||
| SDT/ZE 21 | 87174258 | Black | no / / yes | 1 | 10 | M25/P21 | |||
Dummy grommet | |||||||||
| BTK/E | 87121266 | Black | yes / / no | 0 | 10 | ||||
| BTG/E | 87121270 | Black | no / / yes | 0 | 10 | ||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
