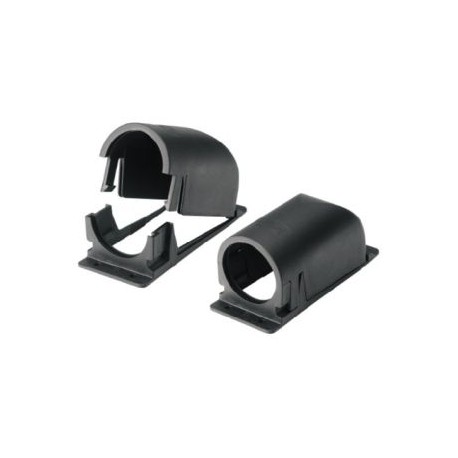

KDP/H 48 87301098 MURRPLASTIK Cable entry systems and holders KDP/H conduit connection Black
87301098
MURRPLASTIK
Cable entry systems and holders KDP/H conduit connection Black
KDP/H 48
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

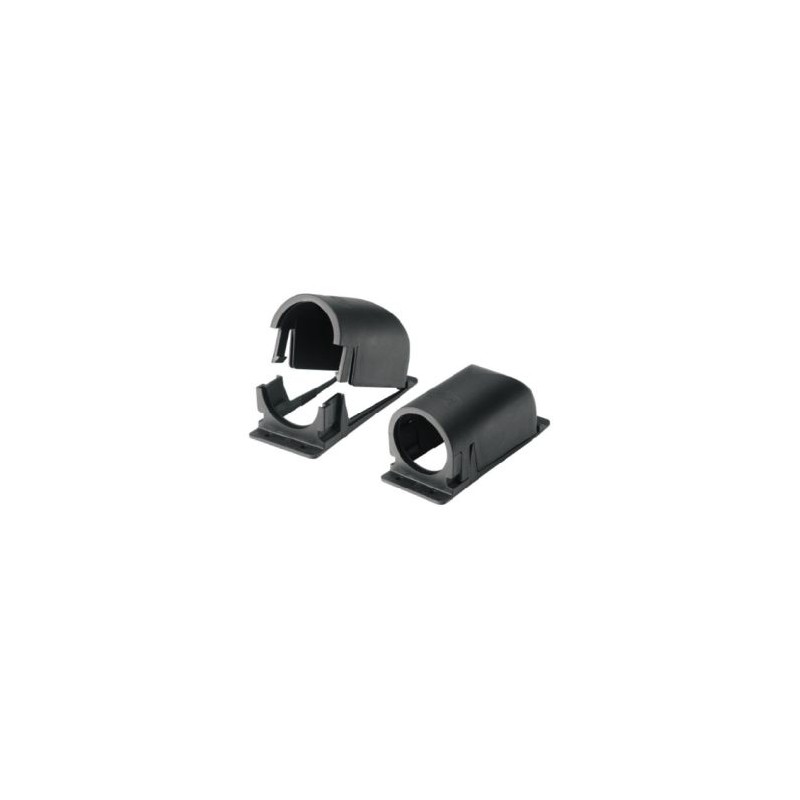

▲The KDP/H conduit connection enables a connection to our Murrflex M50/P48 cable protection conduits with standard corrugation on the cable entry plates of Types KDP/N 24, KDP/X 24 and KDP/E 24. The conduit connection is comprised of a lower part that is screwed together with the cable entry plate and an upper part that engages with the lower part after the cables have been feed through the cable entry plate without tools.
Line protection
Contaminant water and water jet protection
Easy assembly and disassembly
Compact design
For all Murrflex conduits of sizes M50/P48 with standard corrugation
-40°C – 110°C
Polyamide 6
V0
| Type | Order No. | Colour | A mm | B mm | a mm | b mm | Ø mm | EH mm | Pack qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP/H 48 | 87301098 | Black | 148 | 60 | 53 | 106 | 5.5 | 65 | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
