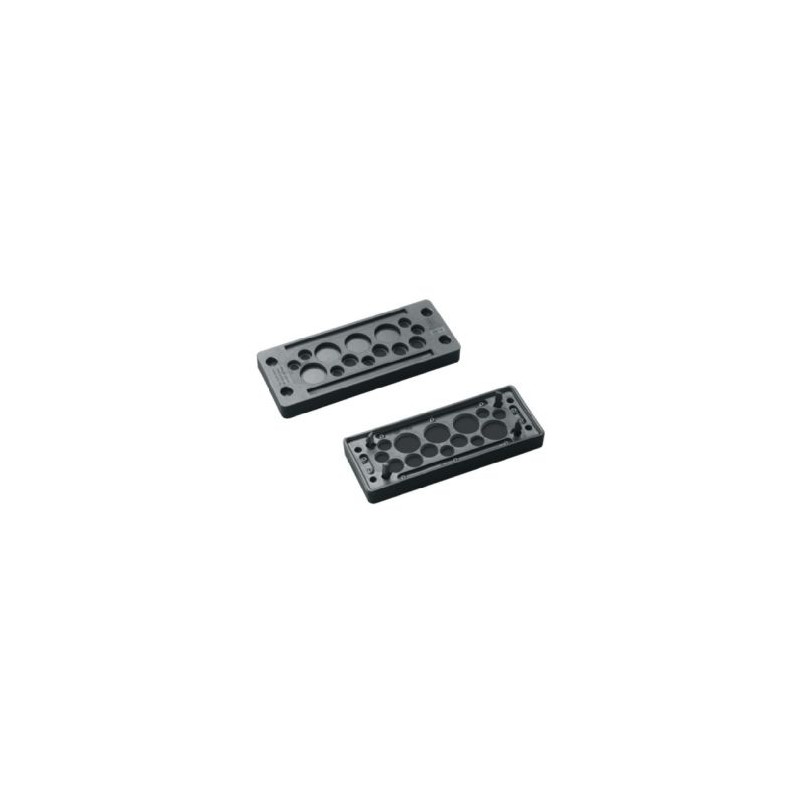

KDP/EN 24/80 87301290 MURRPLASTIK Cable entry systems and holders Type KDP/EN cable entry plate, plastic Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/EN 24/80 87301290 MURRPLASTIK Cable entry systems and holders Type KDP/EN cable entry plate, plastic Black

87301290

MURRPLASTIK

Cable entry systems and holders Type KDP/EN cable entry plate, plastic Black

KDP/EN 24/80, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $98.72
Unit price: $98.72
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KDP/EN 24 cable gland plates are made of modified Polyamide 6 and are cable entry and retaining systems for cables and pneumatic hoses, used in control cabinets or plant construction specifically in the railway industry. Wherever quick assembly, cable-protecting and high packing density are required, the cable insertion system is used.

The special benefits of the KDP/EN 24 are:

Enormous time savings in assembly

High packing density

Standardised cut-out dimensions

Option of labelling

Protection category IP 65

Approved for railway technology (EN 45545-2 / 3x HL3)

Labs free

UV-resistant

-30°C – 70°C

Polyamide 6EPDM

V0

IP 65

EU railway approval

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/EN 24/11 87301210 Black 11
4 x 3.00 – 6.50
4 x 5.00 – 9.20
3 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/12 87301220 Black 12
12 x 8.00 – 12.00
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/13 87301230 Black 13
2 x 3.00 – 5.50
6 x 4.10 – 8.10
4 x 9.00 – 14.00
1 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/14 87301240 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/17 87301250 Black 17
17 x 5.00 – 9.20
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/17-1 87301251 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/22 87301260 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/23 87301270 Black 23
23 x 4.10 – 8.10
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/29 87301280 Black 29
29 x 3.00 – 6.50
1 15 59 147 112 36 65 16 5.5
KDP/EN 24/80 87301290 Black 80
78 x 1.50 – 2.60
2 x 2.50 – 5.00
1 15 59 147 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
