KDL-AB 16/2-EMV 87252410 MURRPLASTIK Cable entry systems and holders Discharge plate, type KDL-AB
87252410
MURRPLASTIK
Cable entry systems and holders Discharge plate, type KDL-AB
KDL-AB 16/2-EMV Chapa
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

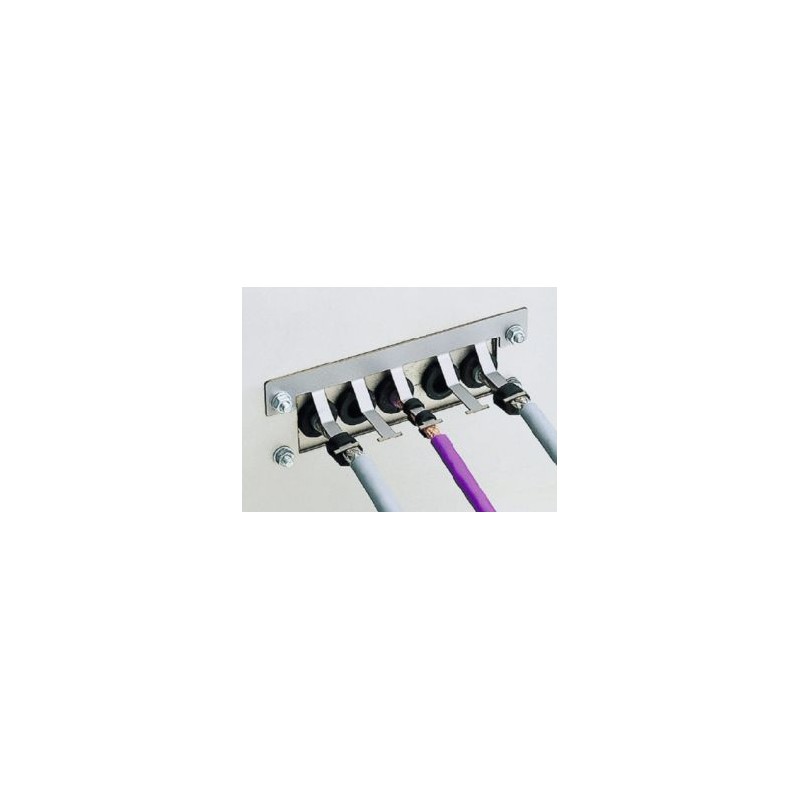

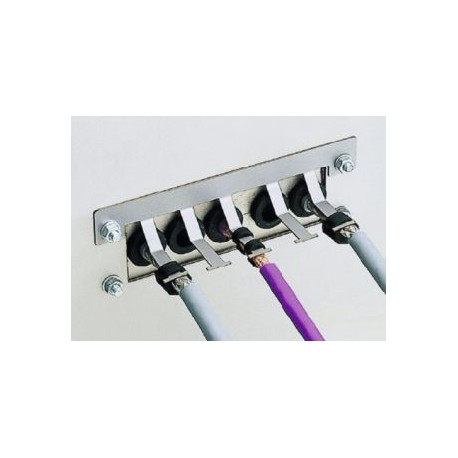

▲The discharge plate AB-Clip 24 - EMV is made of 1.4301 (V2A) stainless steel. It can be used in conjunction with 24-pin cable entry strips (KDL/x) and cable gland plates (KDP/x) to eliminate interference that can occur on the cable shields. The discharge plate should be installed on the inside of the control cabinet, directly to the fixing points of the cable entry system. The deflector plate accommodates the EMC clip systems, which can be mounted on a 10x3mm busbar. The special advantages of the AB-Clip 24 - EMV discharge plate are:
High stability
Easy installation of the screen clip systems
Compact design
RoHS compliant
Stainless steel 1.4310
| Type | Order No. | No. Discharges | Suitable for | Pack qty. | ||
|---|---|---|---|---|---|---|
| KDL-AB 24/6-EMV | 87252438 | 6 | KDL/C 24/12 | 1 | ||
| KDL-AB 16/2-EMV | 87252410 | 2 | KDL 16/2 | 1 | ||
| KDL-AB 16/4-EMV | 87252412 | 4 | KDL 16/4 | 1 | ||
| KDL-AB 24/3-EMV | 87252414 | 3 | KDL 24/3 | 1 | ||
| KDL-AB 24/5-EMV | 87252416 | 5 | KDL 24/5 | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
