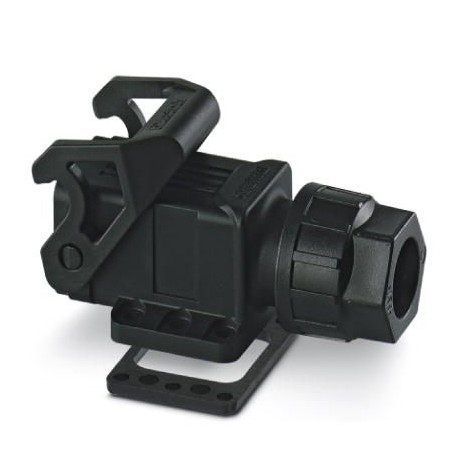

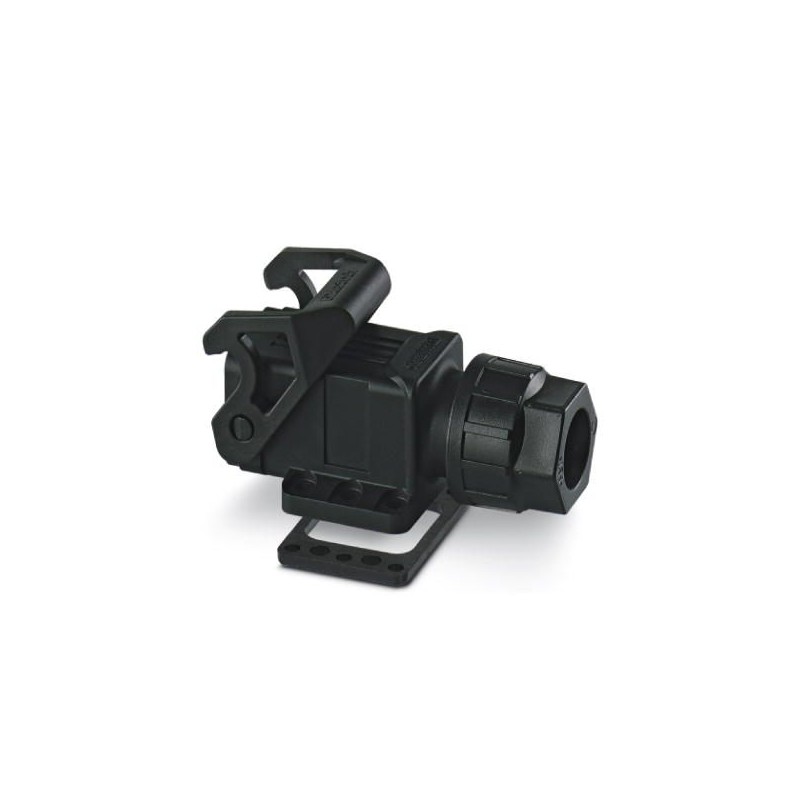

HC-STA-D07-SHOWS-1SGM20-PL-BK 1419267 PHOENIX CONTACT Housing
HC-STA-D07-SHOWS-1SGM20-PL-BK
1419267
PHOENIX_CONTACT
Housing
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1419267 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 510 (C-2-2017) |
| GTIN | 4055626160184 |
| Weight per Piece (excluding packing) | 30.400 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 27.9 mm |
|---|---|
| Width | 38 mm |
| Length | 24.2 mm |
| External cable diameter | 4 mm ... 10 mm |
| Length of the assembly cutout | 21 mm |
| Width of the assembly cutout | 21 mm |
General
| Note | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
|---|---|
| Size | D7 |
| Housing type | Box mounting bases |
| Color | black |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | with |
| Type of the screw connection | 1x M20 |
| Housing material | PA |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 (Polyamide housing) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
