> MURRPLASTIK>Wall plates and cable glands>KDL 3/15-EMV 87980021 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL xx/xx-EMC Enlarge
Previous Product Next Product
KDL 3/15-EMV 87980021 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL xx/xx-EMC Enlarge View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDL 3/15-EMV 87980021 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL xx/xx-EMC Enlarge

87980021

MURRPLASTIK

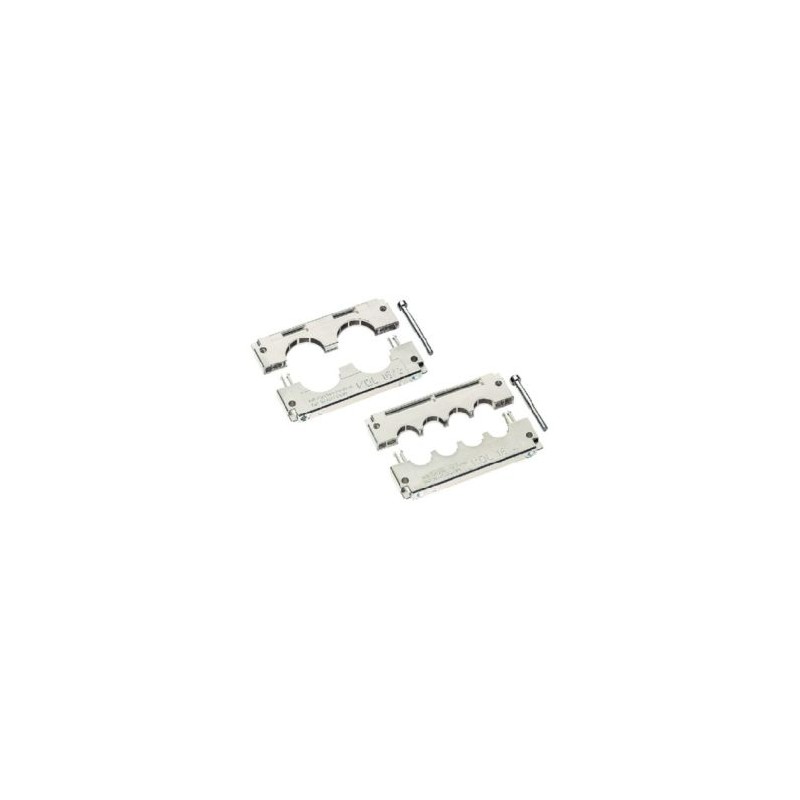

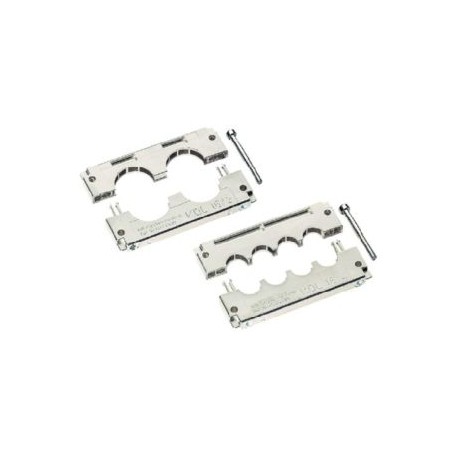

Cable entry systems and holders Cable entry system, type KDL xx/xx-EMC Enlarged cut-out for up to 15 pre-assembled cables Chrome

More details


Wall plates and cable glands

* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total price: $127.64
Unit price: $127.64

Quantity Price
1+$127.64
2+$118.42
3+$108.21
4+$102.44
6+$97.86
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


The KDL/EMV cable entry system is based on the cable entry system KDL. A conductive surface allows cable sheath interference to be discharged onto the control cabinet simply and without additional aids.

Field-bound interference is discharged by the metallisation.

The KDL 16 /xx-EMC types fit on cut-outs for 16-pin connectors, the KDL 24 /xx-EMC types fit on cut-outs for 24-pin connectors, from Harting or Wieland.

-40°C – 80°C

Polyamide 6.6

V0

GL approval

Type Order No. Colour No. Openings small / large Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm

For standard cut-out size 16

KDL 16/2-EMV 87171020 Chrome 0 / / 2 1 10 116 58 86 36 51.5 16 5.5
KDL 16/4-EMV 87171022 Chrome 4 / / 0 1 10 116 58 86 36 51.5 16 5.5

For standard cut-out size 24

KDL 24/3-EMV 87171024 Chrome 1 / / 2 1 10 146 58 112 36 65 16 5.5
KDL 24/5-EMV 87171026 Chrome 5 / / 0 1 10 146 58 112 36 65 16 5.5

Enlarged cut-out for up to 15 pre-assembled cables

KDL 2/10-EMV 87171027 Chrome 10 / / 0 1 10 146 90 120 60 65 32 5.5
KDL 3/15-EMV 87980021 Chrome 15 / / 0 1 10 146 122 120 96 65 48 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
