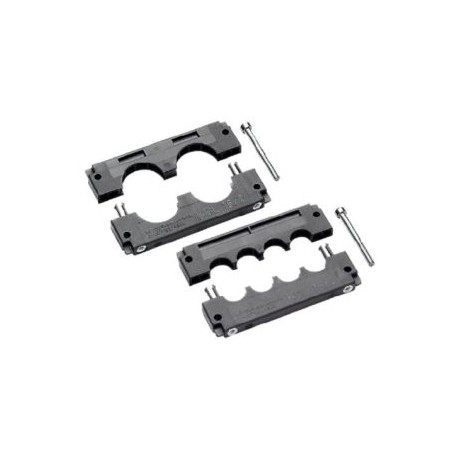

KDL 16/2 87171010 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL For standard cut-out View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDL 16/2 87171010 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL For standard cut-out

87171010

MURRPLASTIK

Cable entry systems and holders Cable entry system, type KDL For standard cut-out size 16

KDL 16/2, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

Total: $39.88
Unit price: $39.88
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


The KDL is a cable entry system for inserting pre-assembled cables. The types KDL 16 /xx fit on cut-outs for 16-pin connectors, the types KDL 24 /xx fit on cut-outs for 24-pin connectors, from Harting or Wieland.

Simple mounting of pre-assembled cables

Fits standard cut-outs

Simple strain relief for cables using cable ties

EMC solution with discharge plate, simple realisation

Labs free

UV-resistant

-40°C – 80°C, transient / short term 100°C

Polyamide 6.6

V0

IP 54

DB approval

GL approval

SNCF approval

Type Order No. Colour No. of openings small / large Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm

For standard cut-out size 16

KDL 16/2 87171010 Black 0 / / 2 1 10 116 58 86 36 51.5 16 5.5
KDL 16/4 87171012 Black 4 / / 0 1 10 116 58 86 36 51.5 16 5.5
KDL 16/2 87171050 Grey 0 / / 2 1 10 116 58 86 36 51.5 16 5.5
KDL 16/4 87171052 Grey 4 / / 0 1 10 116 58 86 36 51.5 16 5.5

For standard cut-out size 24

KDL 24/3 87171014 Black 1 / / 2 1 10 146 58 112 36 65 16 5.5
KDL 24/5 87171016 Black 5 / / 0 1 10 146 58 112 36 65 16 5.5
KDL 24/3 87171054 Grey 1 / / 2 1 10 146 58 112 36 65 16 5.5
KDL 24/5 87171056 Grey 5 / / 0 1 10 146 58 112 36 65 16 5.5

Enlarged cut-out for 10 – 30 cables

KDL 2/10 87171017 Black 10 / / 0 1 10 146 90 120 60 65 32 5.5
KDL 3/15 87171018 Black 15 / / 0 1 10 146 122 120 96 65 48 5.5
KDL 2/10 87171057 Grey 10 / / 0 1 10 146 90 120 60 65 32 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
