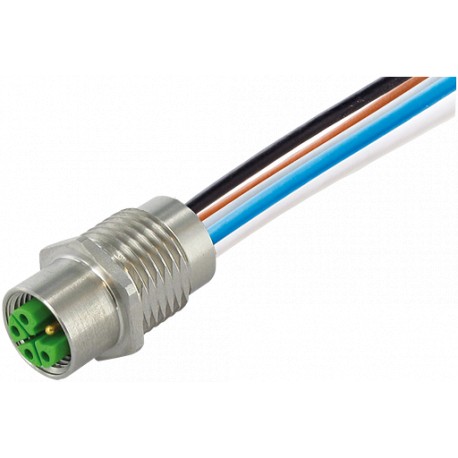

7002-P4281-9800100 MURRELEKTRONIK M12 Power male receptacle L-coded front mount V2A PUR 5x1.5 1m
7002-P4281-9800100
MURRELEKTRONIK
M12 Power male receptacle L-coded front mount V2A PUR 5x1.5 1m
M12 Power male recept. L-cod. front V2APUR-wires 5x1.5 1m
M12 Power male receptacle L-cod. front mount V2A
Connectors with cable
Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲M12, 5-pole
L-coded
with multi-strand wire
Stainless steel 1.4305 (V2A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Form | P4281 |
|---|
| Operating voltage | max. 63 V AC/DC |
|---|---|
| Rated surge voltage | 1.5 kV |
| Operating current per contact | max. 16 A |
| No. of poles | 5 |
| Material group | IEC 60664-1, category I |
| Coding | L-coded |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW17) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Stainless steel 1.4305 (V2A) |
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
| Cable number | 980 |
|---|---|
| No./diameter of wires | 5× 1.5 mm² |
| Wire isolation | PUR (br, wh, bl, bk, gr) |
| Bend radius (fixed) | 7.5× outer Ø |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Shield | no |
| Outer Ø | 2.4 mm ±5% |
| country of origin | DE |
|---|---|
| customs tariff number | 85444290 |
| EAN | 4048879630115 |
| eClass | 27279221 |
| Packaging unit | 1 |
