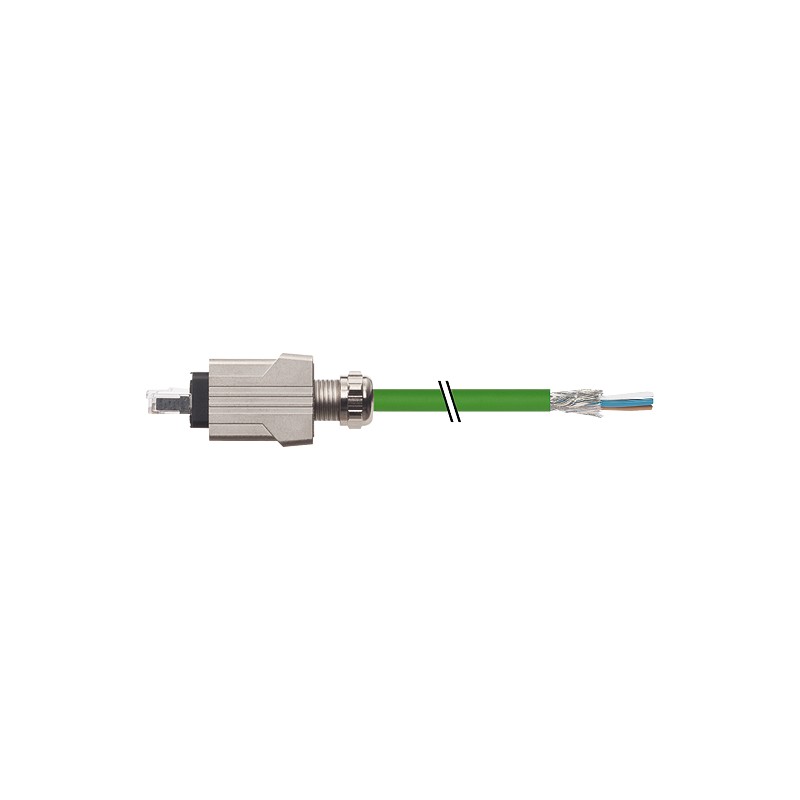

7000-99631-7962500 MURRELEKTRONIK Push Pull RJ45 with cable, Profinet PUR 2x2xAWG22 shielded green UL/CSA + ..
7000-99631-7962500
MURRELEKTRONIK
Push Pull RJ45 with cable, Profinet PUR 2x2xAWG22 shielded green UL/CSA + drag chain 25m
Push Pull RJ45 with cable, Profinet
Connectors with cable
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRELEKTRONIK
Best sellers
▲More info
▲Male straight
RJ45PP, 4-pole
shielded
Push Pull
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
RJ45PP, 4-pole
shielded
Push Pull
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form
| Form | 99631 |
|---|
Technical Data
| Operating voltage | max. 60 V DC |
|---|---|
| Operating voltage (only UL listed) | max. 30 V DC |
| Operating current per contact | max. 1.76 A |
| Material group | IEC 60664-1, category I |
| Locking of ports | Push Pull |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
General data
| Pollution Degree | 3 |
|---|---|
| Temperature range | -25...+85 °C |
Cables
| No./diameter of wires | 2× 2× 0.34 mm² |
|---|---|
| Wire isolation | PE (wh, ye, bl, or) |
| C-track properties | 3 Mio. |
| Jacket Color | green |
| Material (jacket) | PUR (UL/CSA) |
| Outer Ø | 6.7 mm ±5% |
| Bend radius (moving) | 12× outer Ø |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Cable identification | 796 |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Cable weight [g/m] | 69,3 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 2× 2× AWG22 |
| Material (wire isolation) | PE |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Shield | yes |
| optical shield cover | min. 85% |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| thermal resistance | flammwidrig nach UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2 |
| Nominal voltage | 300 V |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Bend radius (fixed) | 5× outer Ø |
| Bend radius (moving) | 12× outer Ø |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| Travel speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
Commercial data
| country of origin | DE |
|---|---|
| customs tariff number | 85444210 |
| EAN | 4048879113748 |
| eClass | 27061801 |
| Packaging unit | 1 |
* only for products with UL/CSA approved cable
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRELEKTRONIK EN.pdf | 19 Mbytes |
|
| 7000-99631-7962500 7000-99631-7962500 EN_7000-99631-7962500.pdf | 84 Kbytes |
|
