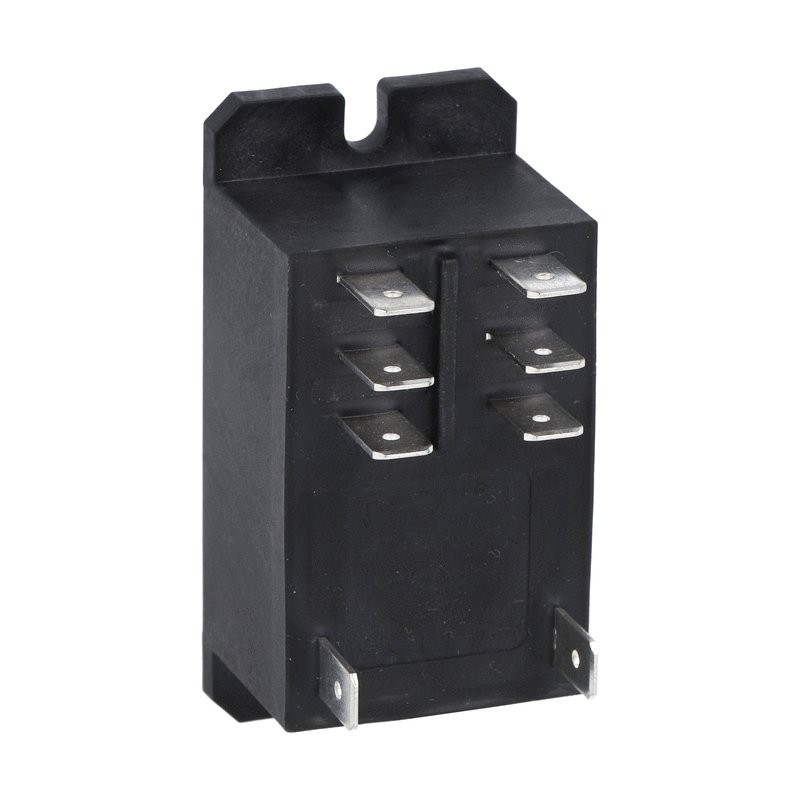

HR802CD012 LOVATO Industrial Atex 2 switched Relay C/A 30A 12VDC
HR802CD012
LOVATO ELECTRIC
10
Industrial Atex 2 switched Relay C/A 30A 12VDC
IND. ATEX RELAY 2C/O 30A 12VDCAC
Industrial power relay with ATEX certificate, 12VDC, 30A (3A NC), 2 C/O contacts
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲HR802CD012
Industrial power relay with ATEX certificate, 12VDC, 30A (3A NC), 2 C/O contacts
Technical specifications
- Type of product:
- Miniature relays
- Type of contacts:
- 2 C/O
- Relay control voltage:
- 12VDC
- IEC Conventional free air thermal current Ith [A]:
- 30 NO (3A NC)
| Order code | HR802CD012 |
|---|---|
| Weight [g] | 88.6 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 070X40X030 |
| Volume [cm³] | 84 |
| Bar code [EAN13] | 8013975319031 |
| HS Code | 85364900 |
21.41 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 12 V |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 26.4 mm |
| Height (EF000040) | 68.6 mm |
| Width (EF000008) | 33.5 mm |
| Nominal current (EF000001) | 30 A |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Other |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarity free |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
