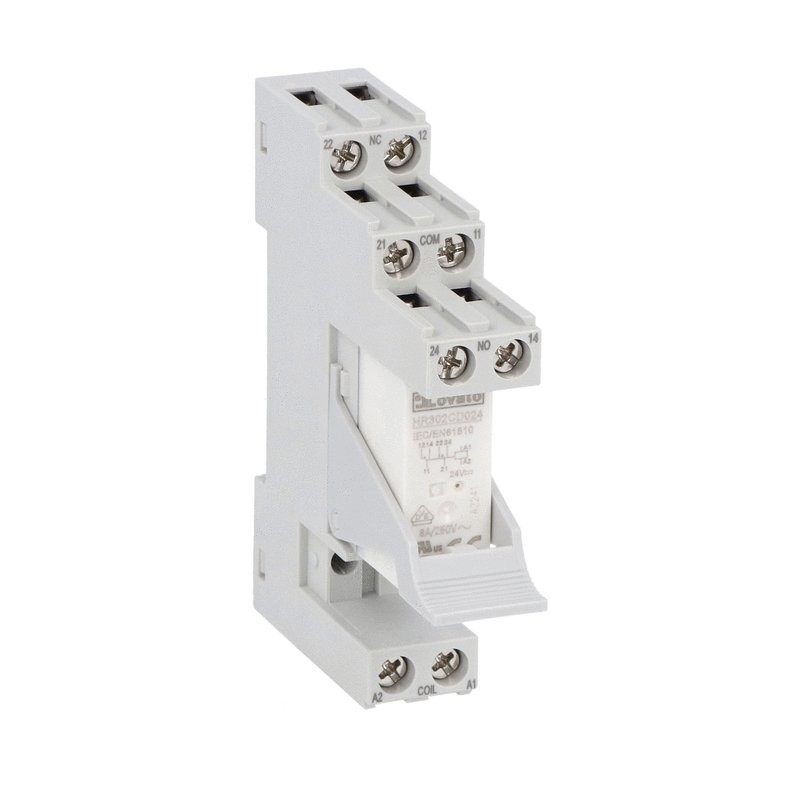

HRA302CD024K4 LOVATO 2SC 8A RELAY, 24VDC + Screw
HRA302CD024K4
LOVATO ELECTRIC
2SC 8A RELAY, 24VDC + Screw
Assembled miniature relay, 24VDC, 8A, 2C/O contact. Screw terminals with retain/release clip
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲HRA302CD024K4
Assembled miniature relay, 24VDC, 8A, 2C/O contact. Screw terminals with retain/release clip
Technical specifications
- Type of product:
- Assembled miniature relays
- Type of contacts:
- 2 C/O
- Relay control voltage:
- 24VDC
- IEC Conventional free air thermal current Ith [A]:
- 8
- LED state indicator:
- No
- Mechanical actuator:
- No
- Type of socket:
- Screw terminals
| Order code | HRA302CD024K4 |
|---|---|
| Weight [g] | 89.53 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 126X092X085 |
| Volume [cm³] | 197.064 |
| Bar code [EAN13] | 8013975322253 |
| HS Code | 85364900 |
14.84 £
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Nominal current (EF000001) | 8 A |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | Yes |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Degree of protection (IP) (EF005474) | IP20 |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Spring clamp connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| HRA302CD024K4 EN_HRA302CD024K4.pdf | 109 Kbytes |
|
