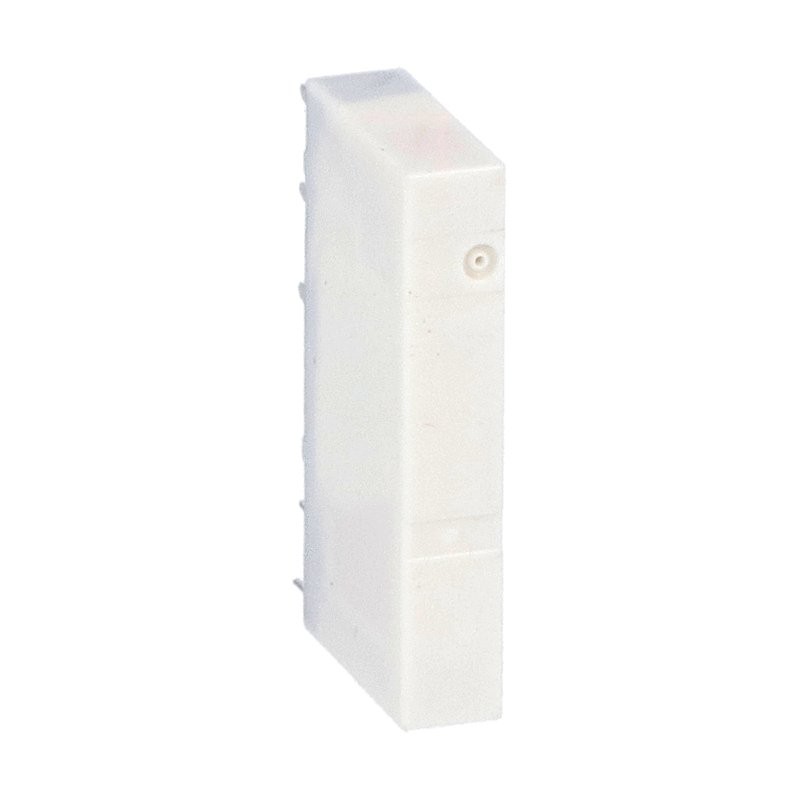

HR101CE060 LOVATO Narrow Relay 1 Switched 6A, 60V DC, 230V
HR101CE060
LOVATO ELECTRIC
Narrow Relay 1 Switched 6A, 60V DC, 230V
SLIM RELAY 1 C/O 6A, 60V DC; 230V
Slim electromechanical relay, 60VDC, 6A, 1 C/O contact. 110...125VAC/DC control when on HR1XS110 or HR1XS110S socket. 220...240VAC/DC control when on HR1XS230 or HR1XS230S socket
Relays > Switching relay
Industrial relays
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲HR101CE060
Slim electromechanical relay, 60VDC, 6A, 1 C/O contact. 110...125VAC/DC control when on HR1XS110 or HR1XS110S socket. 220...240VAC/DC control when on HR1XS230 or HR1XS230S socket
Technical specifications
- Type of product:
- Slim relays
- Type of contacts:
- 1 C/O
- Relay control voltage:
- 60VDC; 110…240VAC/DC
- IEC Conventional free air thermal current Ith [A]:
- 6
- LED state indicator:
- No
- Mechanical actuator:
- No
| Order code | HR101CE060 |
|---|---|
| Weight [g] | 7 |
| Qty. per package | 20 |
| Multiple qty. of packs per order | 20 |
| Package dimensions [mm] | 355X205X175 |
| Volume [cm³] | 12.735 |
| Bar code [EAN13] | 8013975233139 |
| HS Code | 85364900 |
5.94 £
| Feature Name | Feature Value |
|---|---|
| Material of contact insert (EF008521) | Other |
| Voltage type for actuating (EF008242) | DC |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Type of electric connection (EF003961) | Plug-in connection |
| Type of switch contact (EF003358) | Single contact |
| Drive, switching attitude (EF003356) | Mono stable |
| Drive, polarization (EF003355) | Polarized |
| Rated control supply voltage DC (EF003980) | 60 V |
| With LED indication (EF005950) | No |
| Complete with socket (EF003359) | No |
| With forced-guided contacts (EF003357) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Depth (EF000049) | 5 mm |
| Height (EF000040) | 15 mm |
| Width (EF000008) | 28 mm |
| Nominal current (EF000001) | 6 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
