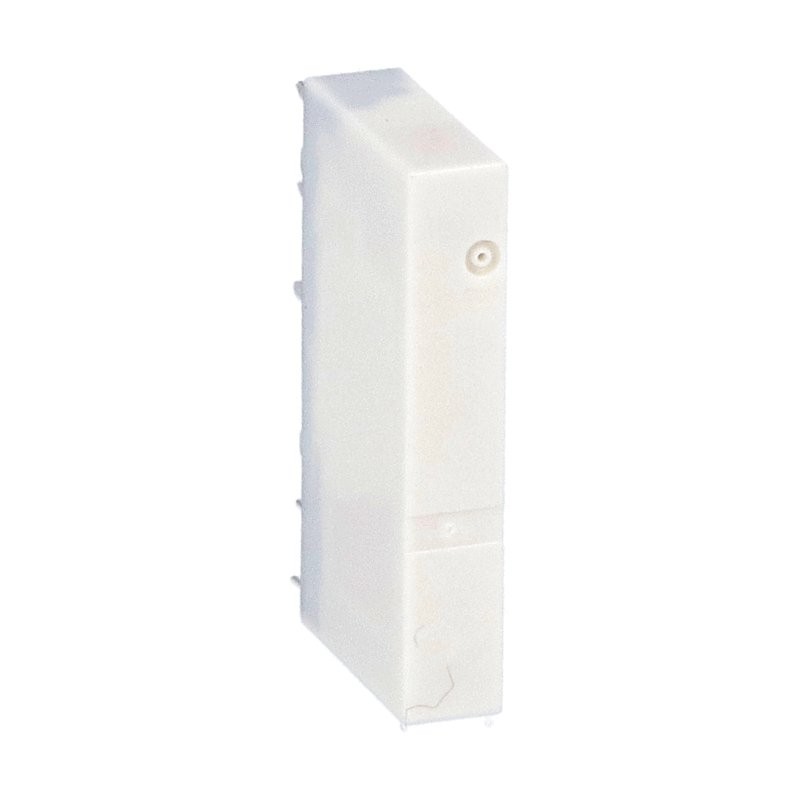

HR101CE012 LOVATO Narrow Relay 1 Switched 6A, 12V DC
HR101CE012
LOVATO ELECTRIC
Narrow Relay 1 Switched 6A, 12V DC
SLIM RELAY 1 C/O 6A, 12V DC
Slim electromechanical relay, 12VDC, 6A, 1 C/O contact. 12VAC/DC control when on HR1XS024 or HR1XS024S socket
Industrial relays
* Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Often bought together
▲Best sellers
▲More info
▲| Order code | HR101CE012 |
| Weight [g] | 7 |
| Qty. per package | 20 |
| Multiple qty. of packs per order | 20 |
| Package dimensions [mm] | 355X205X175 |
| Volume [cm³] | 12.735 |
| Bar code [EAN13] | 8013975233115 |
| HS Code | 85365080 |
cURus
EAC
VDE
CSA
IEC/EN 61810
| Product designation | SLIM RELAY | |||
| Product type designation | HR10 | |||
| Contact characteristics | ||||
| Contact configuration | 1 C/O | |||
| Rated insulation voltage Ui IEC/EN | V | 250 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| IEC Conventional free air thermal current Ith | A | 6 | ||
| Maximum instantaneous current | A | 20 (500ms) | ||
| Rated current (In) | A | 6 | ||
| Relay control voltage | V | 12VDC | ||
| UL/CSA and IEC/EN 60947-5-1 designation | B300 – R300 | |||
| UL rating | 6A 277VAC; 6A 30VDC | |||
| Max contrallable power in | ||||
| AC-1 | W | 1500 | ||
| AC-15 | VA | 360 | ||
| Rated operating power AC-1 | ||||
| VA | 1500 | |||
| Rated operating power AC-15 | ||||
| 230 VAC | VA | 360 | ||
| Single-phase motor control | ||||
| 230VAC | kW | 0.186 | ||
| Rated operating current DC-1 | ||||
| 30V | A | 6 | ||
| 110V | A | 0.2 | ||
| 220V | A | 0.12 | ||
| Minimum switching load | V / mA | 5 / 100 | ||
| Contact impedance | mΩ | 100 | ||
| Contact material | Ag/Ni | |||
| Operating times | ||||
| Closing | ms | ≤8 | ||
| Opening | ms | ≤4 | ||
| Operations | ||||
| Mechanical life | cycles | 10000000 | ||
| Electrical life AC1 | cycles | 30000 | ||
| Coil characteristics | ||||
| Average coil consumption DC at 20°C | W | 0.2 | ||
| Operating range | ||||
| Closing | % Un | ≥75 | ||
| Opening | % Un | ≥5 | ||
| Maximum cycle frequency | cycles/h | 10000 | ||
| Mechanical features | ||||
| Max socket terminal tightening torque | Nm | 0.5 | ||
| Socket screw tightening tool (cross / flat blade) | PH0 / 3.5mm | |||
| Conductor section | ||||
| AWG/Kcmil | ||||
| min | 20 | |||
| max | 16 | |||
| IEC | ||||
| min | mm² | 0.5 | ||
| max | mm² | 1.5 | ||
| Operating position | ||||
| normal | Any | |||
| Fixing | On 35mm DIN rail | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +80 | ||
| Other features | ||||
| Indication | Yes (on the socket) | |||
| Mechanical contact position indicator | No | |||
| Mechanical test actuator | No | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001437 - Switching relay | |||
