HR101CE012
LOVATO ELECTRIC
1

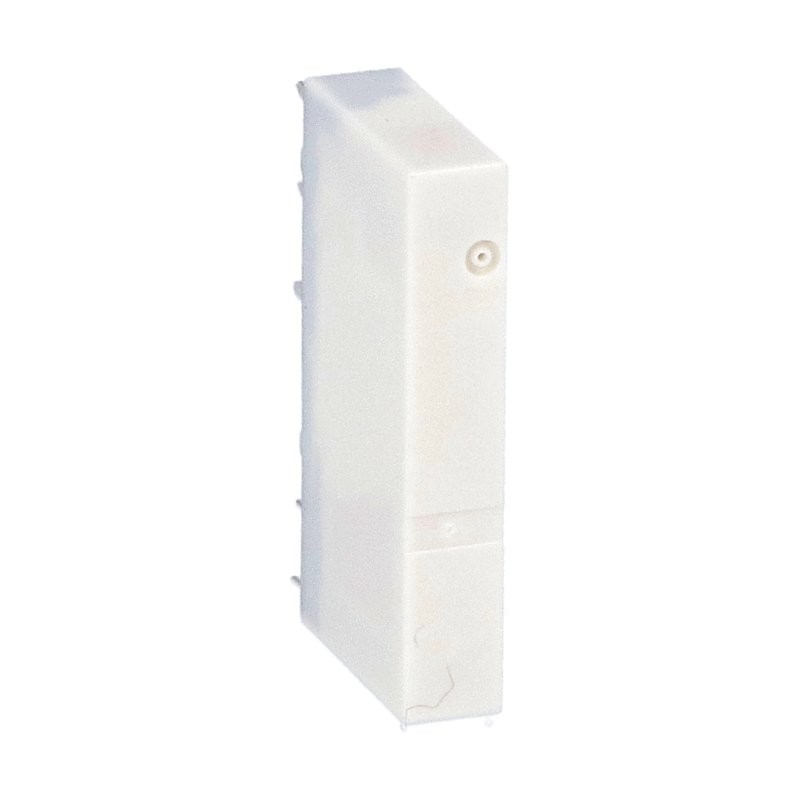

Relé Estrecho 1 Conmutado 6A, 12V DC
RELÉ ELECTROMECÁNICO DELGADO, 12VDC, 6A, 1 CONTACTO C/O. CONTROL DE 12 VCA/CC CUANDO ESTÁ EN EL ZÓCALO HR1XS024 O HR1XS024S
Relés industriales
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | HR101CE012 |
Peso [g] | 7 |
Unidades de embalaje | 20 |
Cantidad de pedido multi-embalaje | 20 |
Dimensiones de embalaje [mm] | 355X205X175 |
Volumen [cm³] | 12.735 |
Código de barras [EAN13] | 8013975233115 |
Código HS | 85365080 |
Product designation | SLIM RELAY | |||
Product type designation | HR10 | |||
Contact characteristics | ||||
Contact configuration | 1 C/O | |||
Rated insulation voltage Ui IEC/EN | V | 250 | ||
Rated impulse withstand voltage Uimp | kV | 4 | ||
IEC Conventional free air thermal current Ith | A | 6 | ||
Maximum instantaneous current | A | 20 (500ms) | ||
Rated current (In) | A | 6 | ||
Relay control voltage | V | 12VDC | ||
UL/CSA and IEC/EN 60947-5-1 designation | B300 – R300 | |||
UL rating | 6A 277VAC; 6A 30VDC | |||
Max contrallable power in | ||||
AC-1 | W | 1500 | ||
AC-15 | VA | 360 | ||
Rated operating power AC-1 | ||||
VA | 1500 | |||
Rated operating power AC-15 | ||||
230 VAC | VA | 360 | ||
Single-phase motor control | ||||
230VAC | kW | 0.186 | ||
Rated operating current DC-1 | ||||
30V | A | 6 | ||
110V | A | 0.2 | ||
220V | A | 0.12 | ||
Minimum switching load | V / mA | 5 / 100 | ||
Contact impedance | mΩ | 100 | ||
Contact material | Ag/Ni | |||
Operating times | ||||
Closing | ms | ≤8 | ||
Opening | ms | ≤4 | ||
Operations | ||||
Mechanical life | cycles | 10000000 | ||
Electrical life AC1 | cycles | 30000 | ||
Coil characteristics | ||||
Average coil consumption DC at 20°C | W | 0.2 | ||
Operating range | ||||
Closing | % Un | ≥75 | ||
Opening | % Un | ≥5 | ||
Maximum cycle frequency | cycles/h | 10000 | ||
Mechanical features | ||||
Max socket terminal tightening torque | Nm | 0.5 | ||
Socket screw tightening tool (cross / flat blade) | PH0 / 3.5mm | |||
Conductor section | ||||
AWG/Kcmil | ||||
min | 20 | |||
max | 16 | |||
IEC | ||||
min | mm² | 0.5 | ||
max | mm² | 1.5 | ||
Operating position | ||||
normal | Any | |||
Fixing | On 35mm DIN rail | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -40 | ||
max | °C | +70 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +80 | ||
Other features | ||||
Indication | Yes (on the socket) | |||
Mechanical contact position indicator | No | |||
Mechanical test actuator | No | |||
ETIM classification | ||||
ETIM 8.0 | EC001437 - Switching relay |
