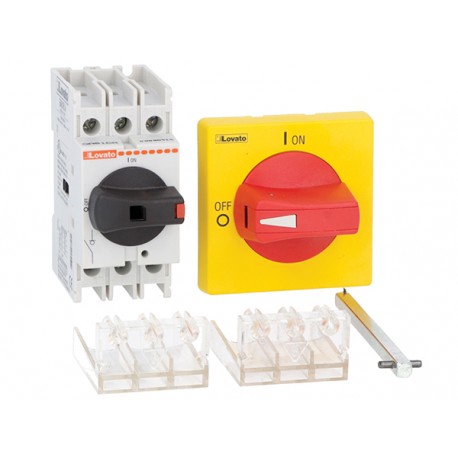

GA025AK30063 LOVATO SWITCH 3P 25A+300MM SHAFT+HANDLE+COVER
GA025AK30063
LOVATO ELECTRIC
SWITCH 3P 25A+300MM SHAFT+HANDLE+COVER

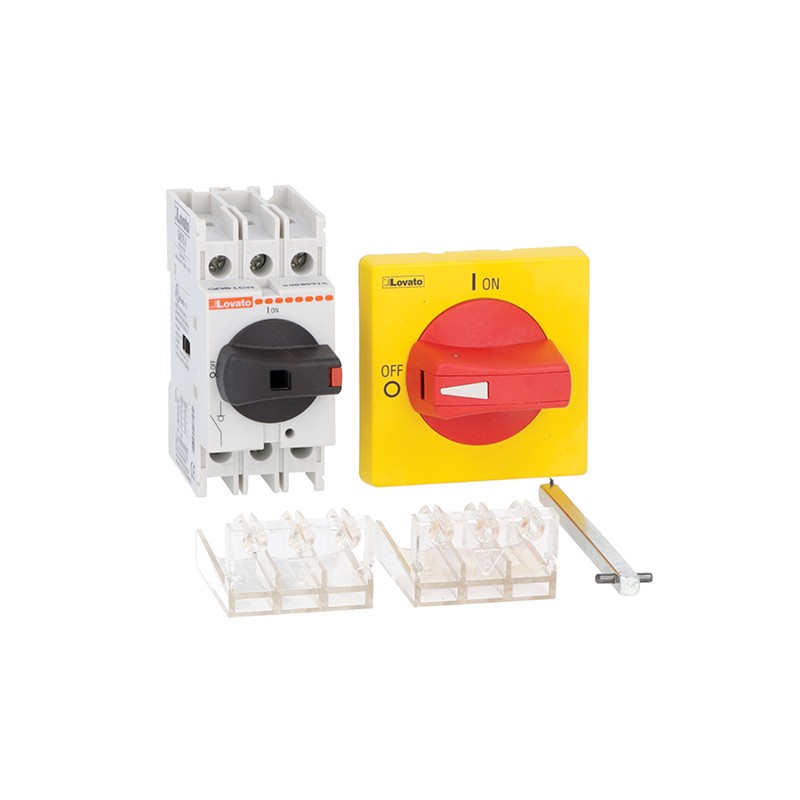

Switch disconnector GA025A complete with shaft extension GAX7300, door-coupling handle GAX63 and terminal covers
Low-voltage industrial components > Switch disconnector
Switch disconnectors - LOVATO ELECTRIC
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Best sellers
▲More info
▲GA025AK30063
Switch disconnector GA025A complete with shaft extension GAX7300, door-coupling handle GAX63 and terminal covers
Technical specifications
- Type of product:
- Switch disconnectors
- Number of poles:
- 3
- Type of operating voltage:
- AC
- IEC Conventional free air thermal current Ith [A]:
- 25
- Type of installation:
- Screw on plate or 35mm DIN rail
| Order code | GA025AK30063 |
|---|---|
| Weight [g] | 302 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 315X100X060 |
| Volume [cm³] | 1890 |
| Bar code [EAN13] | 8013975270158 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Rated operating voltage (EF001435) | 400 V |
| Version as reversing switch (EF009408) | No |
| Voltage release optional (EF007491) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting 4-hole (EF007247) | No |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as main switch (EF006981) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Interlockable (EF006281) | Yes |
| Rated permanent current at AC-23, 400 V (EF011777) | 25 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 25 A |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operation power at AC-23, 400 V (EF007027) | 11 kW |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Conditioned rated short-circuit current Iq (EF001444) | 10 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
