LOVATO ELECTRICSwitch disconnectors - LOVATO ELECTRICGLC0100C1UL LOVATO 3P CHANGEOVER SWITCH 100A UL C1

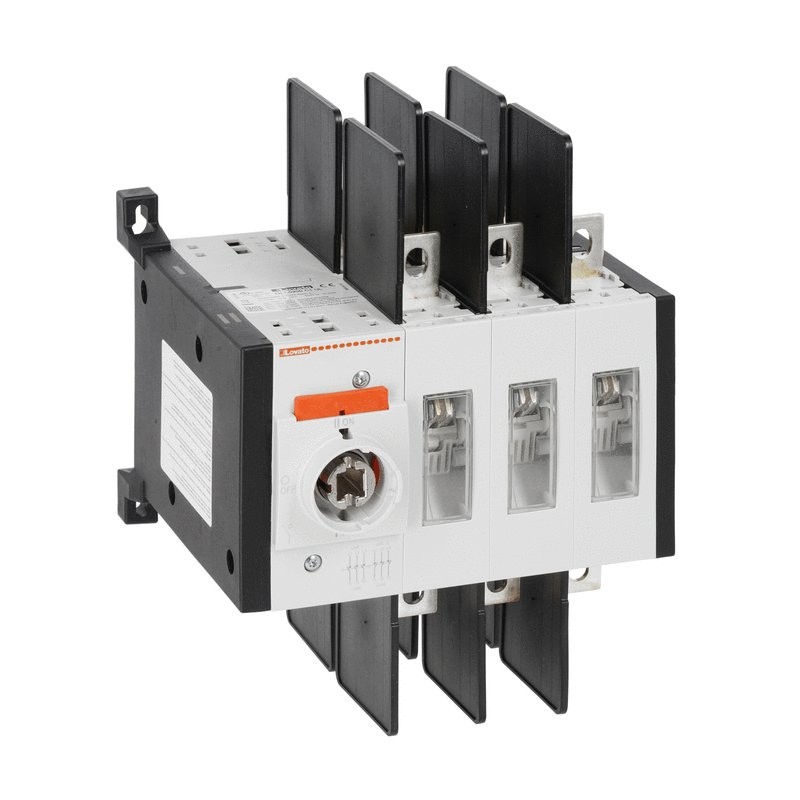

LOVATO ELECTRIC GLC0100C1UL GLC0100C1UL - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GLC0100C1UL LOVATO 3P CHANGEOVER SWITCH 100A UL C1

Reference: GLC0100C1UL

Manufacturer: LOVATO ELECTRIC

Description:

3P CHANGEOVER SWITCH 100A UL C1
Three-pole changeover switch, UL1008, 100A
THREE-POLE CHANGEOVER SWITCH, UL1008, 100A

Categories:

  • Low-voltage industrial components > Switch disconnector
  • LOVATO ELECTRIC > Switch disconnectors - LOVATO ELECTRIC

Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

GLC0100C1UL

Three-pole changeover switch, UL1008, 100A

Technical specifications

Type of product:
Changeover switches
Number of poles:
3
Type of operating voltage:
AC
IEC Conventional free air thermal current Ith [A]:
160
UL Standard:
UL1008
Type of installation:
Screw on plate
Order codeGLC0100C1UL
Weight [g]3795.18
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]245X227X200
Volume [cm³]11123
Bar code [EAN13]8013975271353
HS Code85365080

ETIM for GLC0100C1UL Low-voltage industrial controls and switchgear (EC000216)

Feature nameRated operating voltage (EF001435)
Feature value400 V
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value600 V
Feature nameRated short-time withstand current lcw (EF007050)
Feature value6 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value90 kW
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameConditioned rated short-circuit current Iq (EF001444)
Feature value100 kA
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueBuilt-in device fixed built-in technique
Feature nameType of control element (EF006976)
Feature valueDoor coupling rotary drive
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE LOVATO EN
99 Mbytes
