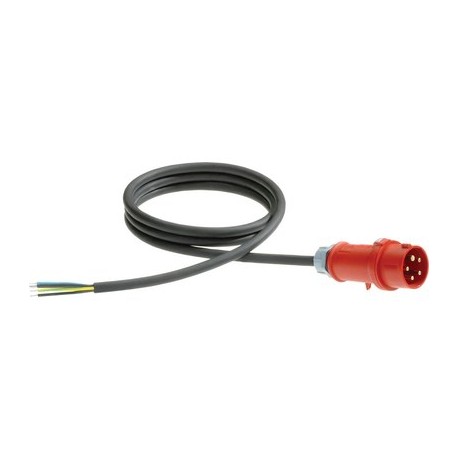

71222239 ÖLFLEX PLUG CEE 5G1,5 16A 5m LAPP ÖLFLEX PLUG CEE 5G1,5 16A 5m

Application range

• For connections to any three-phase A.C. consumers
• Machines and systems on building sites
• According to EN 50565-2: Dry or damp rooms as well as outdoors

Product features

• Also available with phase shifter (engine direction can be changed)
• Other dimensions, lengths, connectors, designs and customised versions are available upon request

Norm references / Approvals

• <HAR> H07RN-F cable type approval according to EN 50525-2-21

Product Make-up

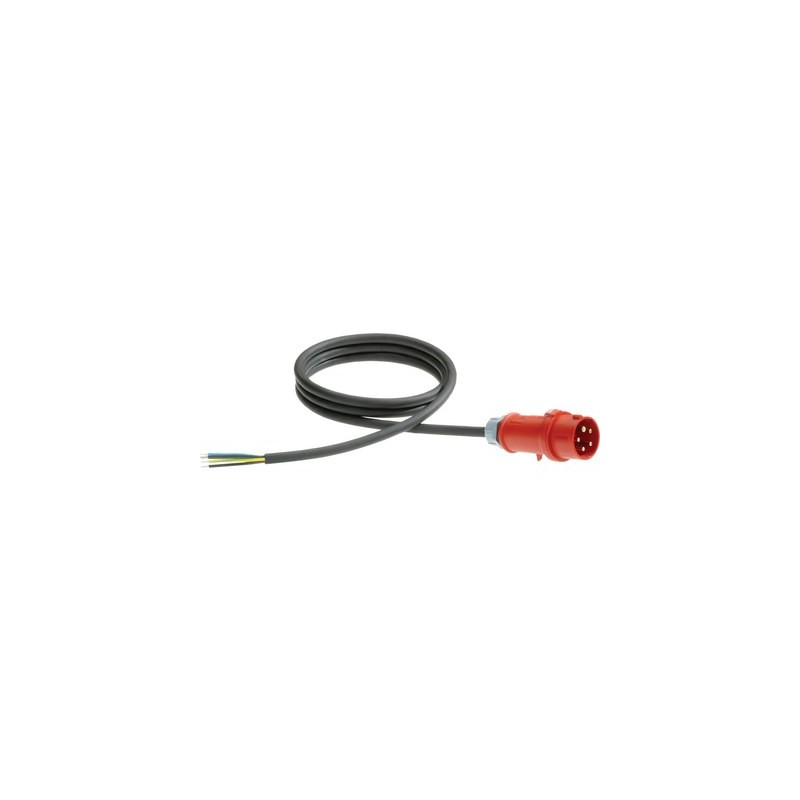

• Mounted 5-pin CEE plug, 400 V, red, 6 o'clock in accordance with VDE 0623/EN 60309-2, splash-proof IP 44
• 80 mm stripped, with conductor end sleeves
• from 10 mm²: 100 mm stripped, with conductor end sleeves
• Mounted 5-pin CEE coupling, 400 V, red, 6 o'clock in accordance with VDE 0623/EN 60309-2, splash-proof IP 44

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001576
• ETIM 5.0 Class-Description: Power cord

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001576
• ETIM 6.0 Class-Description: Power cord

Core identification code

• According to VDE 0293-308 (table T9)

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Nominal voltage

• U₀/U = 200/346 to 240/415

Test voltage

• 2500 V

Temperature range

• Flexible use: -25°C to +60°C
