73220210 UNITRONIC SPIRAL 4X0,14/100 LAPP UNITRONIC SPIRAL 4X0,14/100
73220210
UNITRONIC SPIRAL 4X0,14/100
LAPP
UNITRONIC SPIRAL 4X0,14/100
UNITRONIC® SPIRAL
Cables > Spiralized cable
Spiral cables
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
More info

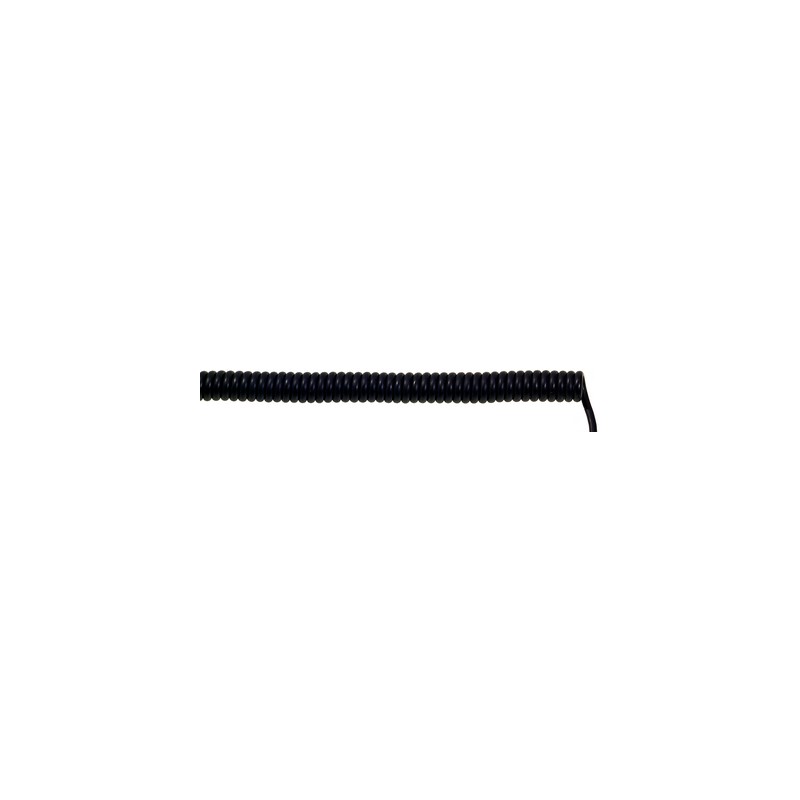

▲UNITRONIC® SPIRAL - shielded PUR spiral cable, abrasion-resistant data and control cable for use in data processing, measurement and control engineering
- Secure against electrical interferences
- PUR outer sheath
Benefits
- Overall screening prevents high frequency interference and guarantees accurate signal transmission
- Extended lengths of up to 4 times the unextended spiral length
Application range
- In measurement and control engineering
- Wherever screened cables with smallest dimensions are required
- For requirements of electronic applications
- Handling and measurement equipment
- Conveyor and transport systems
Product features
- Abrasion and cut-resistant
- Very high flexibility
Product Make-up
- Basis: UNITRONIC®LiYD11Y
- Conductor made of bare copper wires
- Core insulation: Based on PVC
- Screening: wrapped with braided copper wires
- Outer sheath: PUR compound
- Length of straight ends: 1st end = 200 mm, 2nd end = 600 mm
- Versions without the mandatory LAPP designation, but with other solid lengths, end lengths and end forms available on request
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000247
- ETIM 5.0 Class-Description: Spiralized cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000247
- ETIM 6.0 Class-Description: Spiralized cable
Core identification code
- DIN 47100
Peak operating voltage
- 250 V (not for power transmission)
Conductor stranding
- Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6
Test voltage
- 1200 V
Temperature range
- Flexing: -5°C to +50°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 73220210 UNITRONIC SPIRAL 4X0,14/100 73220210 EN_73220254.pdf | 200 Kbytes |
|
