4502232S LIY 2CHELIX 1X0,25 BUBK LAPP LIY 2CHELIX 1X0,25 BUBK
4502232S
LIY 2CHELIX 1X0,25 BUBK
LAPP
250 m.
LIY 2CHELIX 1X0,25 BUBK

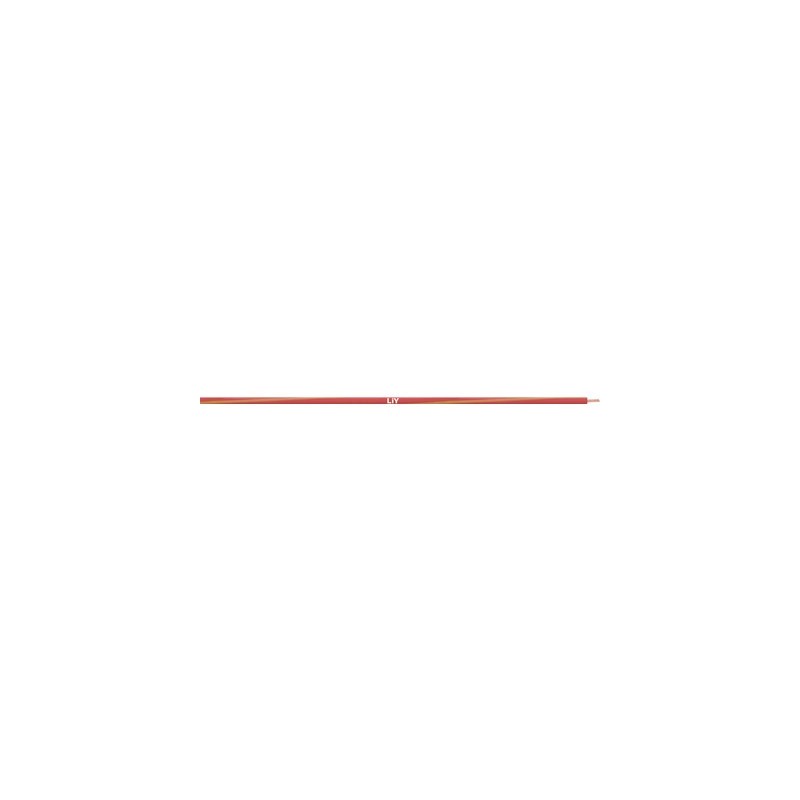

LiY with twin colour helix insulation
Single cores
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲LIY, control cable, PVC, stranded hook-up wire for telecommunication devices and electronic components, twin colour helix insulation, flame-retardant,max. +70°C
- PVC control hook-up wire
- Cost-effective
- Twin-colour spiralized PVC
Application range
- Stranded hook-up wires for wiring of telecommunication devices and electronic components within devices
Product features
- Flame-retardant according IEC 60332-1-2
- Spool: d1 = 18 mm; d2 = 150 mm; b = 85 mm
Norm references / Approvals
- Based on VDE 0812
Product Make-up
- Stranded copper wire
- Core insulation: PVC-based, type YI 2/TI 2 according to VDE 0207-4
- Labelled with coloured stripes
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000993
- ETIM 5.0 Class-Description: Single core cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000993
- ETIM 6.0 Class-Description: Single core cable
Peak operating voltage
- 900 V (0.25 sq.mm)
Conductor stranding
- 0.25 mm²: ≥ 14 strands (each with 0.15 mm Ø)
Nominal voltage
- Operating voltage < 50 VAC
- UPP - peak-to-peak voltage: ≤ 250 V
Test voltage
- 2500 V (0.25 mm²)
Temperature range
- Fixed installation: -30°C to +70°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 4502232S LIY 2CHELIX 1X0,25 BUBK 4502232S EN_4502232S.pdf | 661 Kbytes |
|
