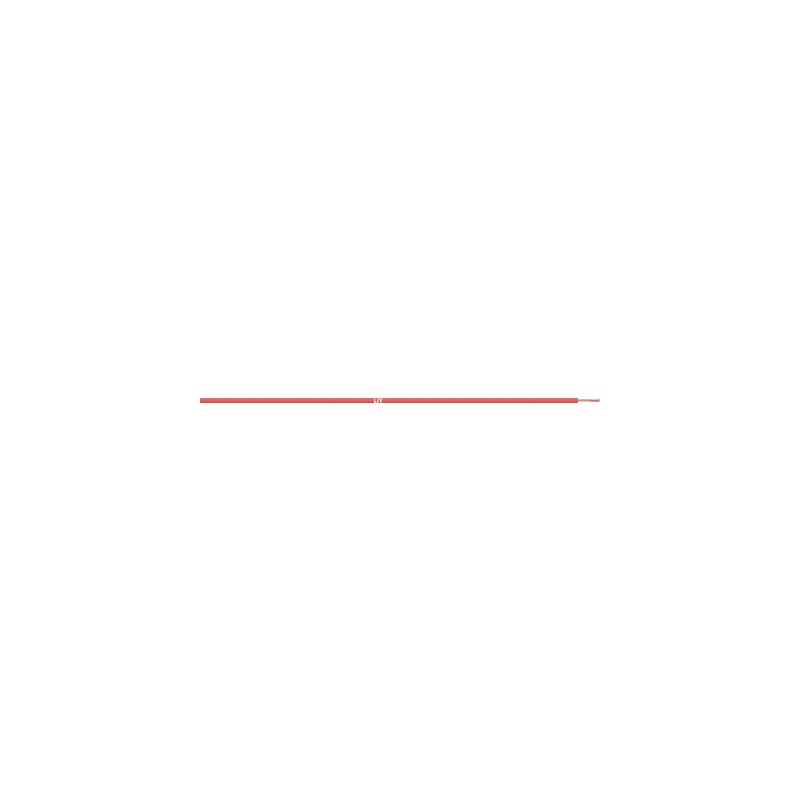

LAPP 4125104S 4125104S LiY 1x0,14 RD - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4125104S LiY 1x0,14 RD LAPP LiY 1x0,14 RD

Reference: 4125104S

Catalog Number: LiY 1x0,14 RD

Manufacturer: LAPP

Description:

LiY 1x0,14 RD
LiY

Categories:

  • LAPP > Single cores

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 64,15 €

Unit Price: 0,1283 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

LIY, control cable, PVC, stranded hook-up wire for telecommunication devices and electronic components, flame-retardant, max. +70 °C

  • PVC control hook-up wire
  • Cost-effective

Application range

  • Stranded hook-up wires for wiring of telecommunication devices and electronic components within devices

Product features

  • Flame-retardant according IEC 60332-1-2
  • Spool: d1 = 18 mm; d2 = 150 mm; b = 85 mm

Norm references / Approvals

  • Based on VDE 0812

Product Make-up

  • Stranded copper wire
  • Core insulation: PVC-based, type YI 2/TI 2 according to VDE 0207-4

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000993
  • ETIM 5.0 Class-Description: Single core cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000993
  • ETIM 6.0 Class-Description: Single core cable

Peak operating voltage

  • 500 V (0.14 mm²)
  • 900 V (0.25 sq.mm)

Conductor stranding

  • 0.14 mm²: ≥ 18 strands (each with 0.10 mm Ø)
  • 0.25 mm²: ≥ 14 strands (each with 0.15 mm Ø)

Nominal voltage

  • Operating voltage < 50 VAC
  • UPP - peak-to-peak voltage: ≤ 250 V

Test voltage

  • 1200 V (0.14 mm²)
  • 2500 V (0.25 mm²)

Temperature range

  • Fixed installation: -30°C to +70°C

DATASHEET - PDF
