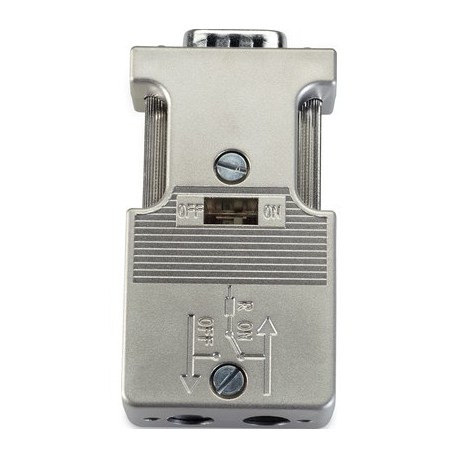

21700503 ED-PB-90-PG LAPP ED-PB-90-PG

Benefits

• Easy connection with tried-and-tested M12 / screw terminal technology
• sensor/ ac
• Terminating resistor (integrated) can be switched
• REPEATER version: Regeneration of data signal
  (slope, power and mark-to-space ratio)
• ATEX version: For use within intrinsically-safe circuits in zone 2 areas with an explosion hazard (explosive gas atmosphere occurs only rarely and briefly)

Product features

• Max. transmission rate 12 Mbit/s possible
• Current consumption max. 12,5 mA
  (with LED 35 mA / REPEATER 100 mA)
• Supply voltage 4.75 - 5.25 V DC
  (supplied from the terminal)
• Terminating resistor "ON" - the outbound bus cable is disconnected
• REPEATER version: Easy extension of the PROFIBUS network:
  - up to 3 repeaters
  - 1 additional PROFIBUS segment
  - galvanic isolation

Norm references / Approvals

• IEC 61158, IEC 61784
• UL File No. E331560
• ATEX version: DIN EN 60079-0:2006, DIN 60079-15:2005 (category 3G zone 2)

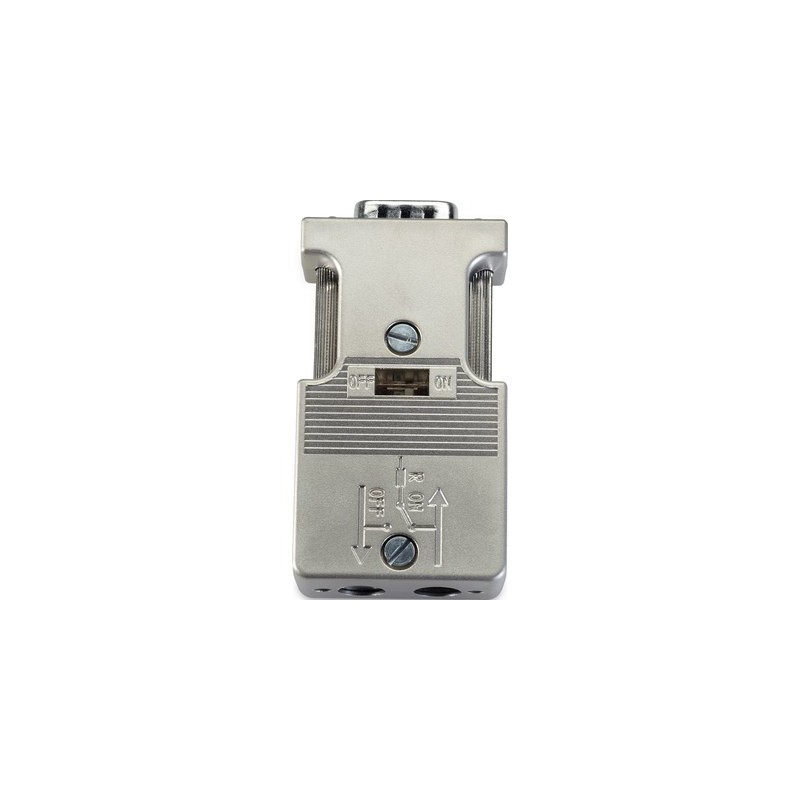

Product Make-up

• D-Sub plug, 9-pin, fixing screws 4-40 UNC
• Improved electromagnetic compatibility (EMC) by metallized housing
• Versions with additional Sub-D interface for programming/diagnostic ('PG')
• For cable outer diameter: 5 – 8 mm / M12 B-coded cordsets
• LED Version indicate:
  bus operation - (green)
  station transmission - (blue)
  terminating resistor "on" - (orange)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001132
• ETIM 5.0 Class-Description: D-Sub connector

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001132
• ETIM 6.0 Class-Description: D-Sub connector

Dimensions

• 54 mm x 40 mm x 17 mm - 35°
  64 mm x 40 mm x 17 mm - 90°
  68 mm x 40 mm x 17 mm - 180°
  70 mm x 40 mm x 17 mm - M12
• (LxWxH)

Connection type

• Screwing
• M12

Protection rating

• IP 20

Terminating resistor

• 150 Ω

Interfaces

• Sub-D socket, 9-pin
  Terminal blocks up to 1.0 mm² /M12 B-coded

Permissble ambient conditions

• Operating temperature: -25°C to +85°C
• *The max. temperature for UL is 60 °C
