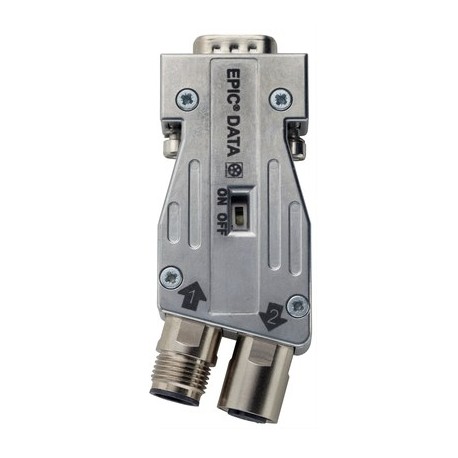

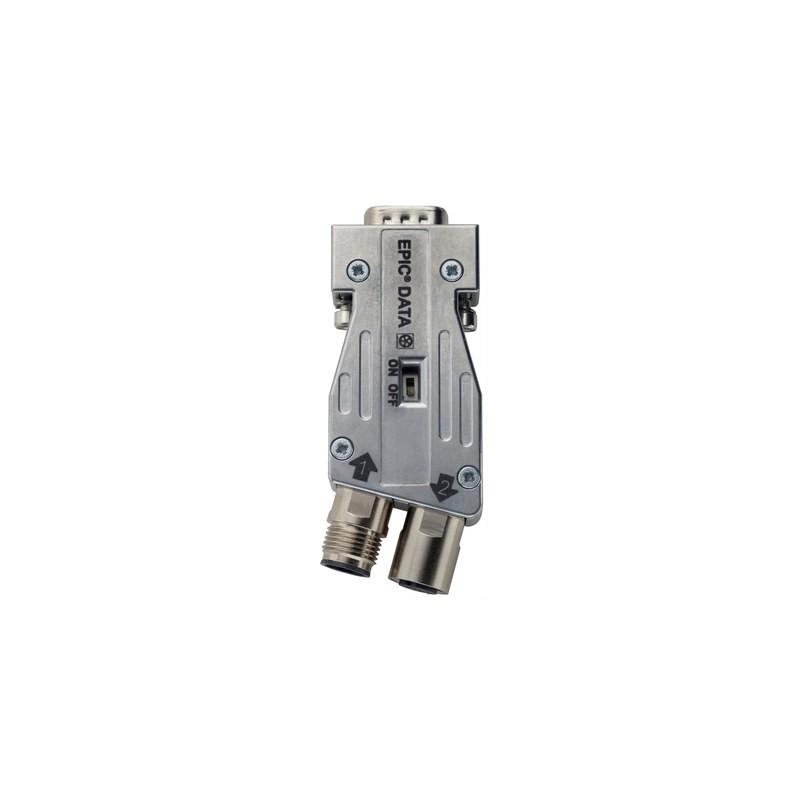

21700562 ED-PB-90-PG-M12-PRO LAPP ED-PB-90-PG-M12-PRO
21700562
ED-PB-90-PG-M12-PRO
LAPP
ED-PB-90-PG-M12-PRO
EPIC® DATA PB Sub-D PRO
Data and telecommunication > D-Sub connector
EPIC DATA Copper
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Robust Data Connectors D-Sub (9-pin.) for PROFIBUS DP, full metal housing, 360° shielding, EMC optimized version with M12
- For high mechanical stress
- High EMC protection
Benefits
- Optimum EMC protection
- Robust housing material for harsh environments
- No loose parts
- Cost-efficient due to quick installation (Plug & Play)
- Terminating resistor (integrated) can be switched
Product features
- Extended temperature range
- High mechnical strength
(200 contact durability) - less transmission loss
- Max. transmission rate 12 Mbit/s possible
- Supply voltage 4.75 - 5.25 V DC
(supplied from the terminal)
Norm references / Approvals
- IEC 61158, IEC 61784
Product Make-up
- D-Sub plug, 9-pin, fixing screws 4-40 UNC
- 360° shielding due full-metall housing (ZnAl)
- With additional Sub-D port for programming/diagnostic 'PG'
(35° and 90° version) - With EMC connector protection (PG port)
- M12 version: 5-pin connector, M12 B-coded
Classification ETIM 5
- ETIM 5.0 Class-ID: EC001132
- ETIM 5.0 Class-Description: D-Sub connector
Classification ETIM 6
- ETIM 6.0 Class-ID: EC001132
- ETIM 6.0 Class-Description: D-Sub connector
Dimensions
- see technical data sheet
Connection type
- M12 or
Internal spring type terminal
Protection rating
- IP 30
Terminating resistor
- 150 Ω
Interfaces
- Sub-D socket, 9-pin
Spring terminal for solid conductors / M12 B-coded - 0,08 - 0,5 mm² (AWG28 - AWG14)
Cable diameter: 8 - 9 mm
Permissble ambient conditions
- Operating temperature: -20°C to +70°C
