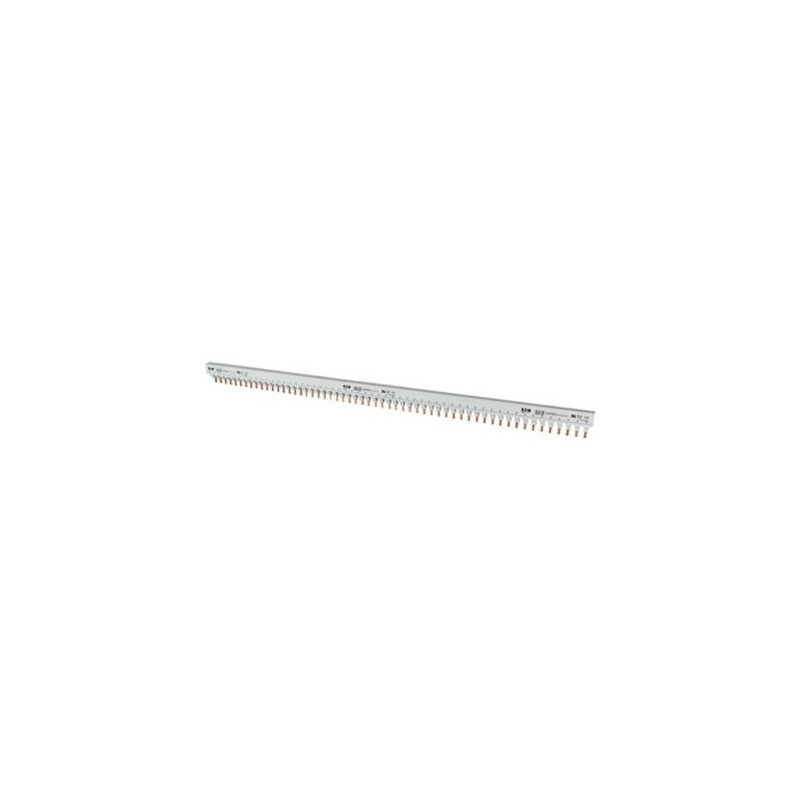

Z-BB/UL18/2P1MU/56 171129 Y7-171129 EATON ELECTRIC Phase busbar, 2-phase, 18qmm, pin, 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Z-BB/UL18/2P1MU/56 171129 Y7-171129 EATON ELECTRIC Phase busbar, 2-phase, 18qmm, pin, 1m

Z-BB/UL18/2P1MU/56

171129

Y7-171129

EATON-MOELLER

Phase busbar, 2-phase, 18qmm, pin, 1m

Z-BB/UL18/2P1MU/56

Block busbar for FAZ-NA/RT, supplied without end caps, type conforms to UL489, EN 60947-1, IEC 60947-1:2004

More details


Low-voltage industrial components > Phase busbar

Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $39.78
Unit price: $39.78
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


Phase busbar, 2-phase, 18qmm, pin, 1m
Block busbar for FAZ-NA/RT, supplied without end caps, type conforms to UL489, EN 60947-1, IEC 60947-1:2004

General specifications
Product name
Eaton Moeller series busbar
Part no.
Z-BB/UL18/2P1MU/56
EAN
4015081676194
Product Length/Depth
992.2 millimetre
Product height
56.8 millimetre
Product width
19.3 millimetre
Product weight
0.879 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Busbar
Product Sub Type
None
Product Specification Details
Accessory/spare part type
Busbar for miniature circuit breaker
Ambient operating temperature - max
100 °C
Ambient operating temperature - min
-5 °C
Application
Switchgear for industrial and advanced commercial applications
Color
Other
Conditioned rated short-circuit current Iq [7EF001444]
kA
Conductor cross section - max
mm²
Cross section
18 mm²
Cross section [7EF000649]
mm²
Electric connection type
Pin
Features
Insulated
Functions
Busbar
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Length [7EF001438]
mm
Max. rated operation voltage Ue [7EF007357]
V
Number of modular spacings
1
Number of phases
2
Number of poles
Two-pole
Pitch dimensions
17.6 mm
Pitch dimensions [7EF007504]
mm
Rated conditional short-circuit current (Iq)
0 kA
Rated operational voltage (Ue) - max
600 V
Rated permanent current Iu [7EF001389]
A
Rated short-time withstand current (Icw)
0 kA
Rated short-time withstand current lcw [7EF007050]
kA
Rated surge voltage
10 kV
Rated surge voltage [7EF002993]
kV
Rated uninterrupted current (Iu)
80 A
Static heat dissipation, non-current-dependent
0 W
Suitable for number of devices
2
Type
Busbar
Z-BB/UL

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992011])
Number of phases
2
Number of poles
2
Suitable for number of devices
2
Module width
17.6 mm
Cross section
18 mm²
Length
992.2 mm
Width in number of modular spacings
1
Rated permanent current Iu
80 A
Type of electric connection
Pin
Insulated
Yes
Rated surge voltage
10 kV
Conditioned rated short-circuit current Iq
0 kA
Max. rated operation voltage Ue
600 V
Rated short-time withstand current lcw
0 kA
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Colour
Other

ETIM for 171129 Low-voltage industrial controls and switchgear (EC000215)
Feature Name Feature Value
Number of phases (EF000351) 2
Number of poles (EF001391) 2
Suitable for number of devices (EF007241) 2
Module width (EF007504) 17.6 mm
Cross section (EF000649) 18 mm²
Length (EF001438) 992.2 mm
Can be cut to size (EF015250) Yes
Width in number of modular spacings (EF002950) 1
Rated permanent current Iu (EF001389) 80 A
Type of electric connection (EF003961) Pin
Insulated (EF000019) Yes
Rated surge voltage (EF002993) 10 kV
Conditioned rated short-circuit current Iq (EF001444) 0 kA
Max. rated operation voltage Ue (EF007357) 600 V
Rated short-time withstand current lcw (EF007050) 0 kA
Suitable for devices with N-conductor (EF007218) No
Suitable for devices with auxiliary switch (EF007217) No
Colour (EF000007) Other
