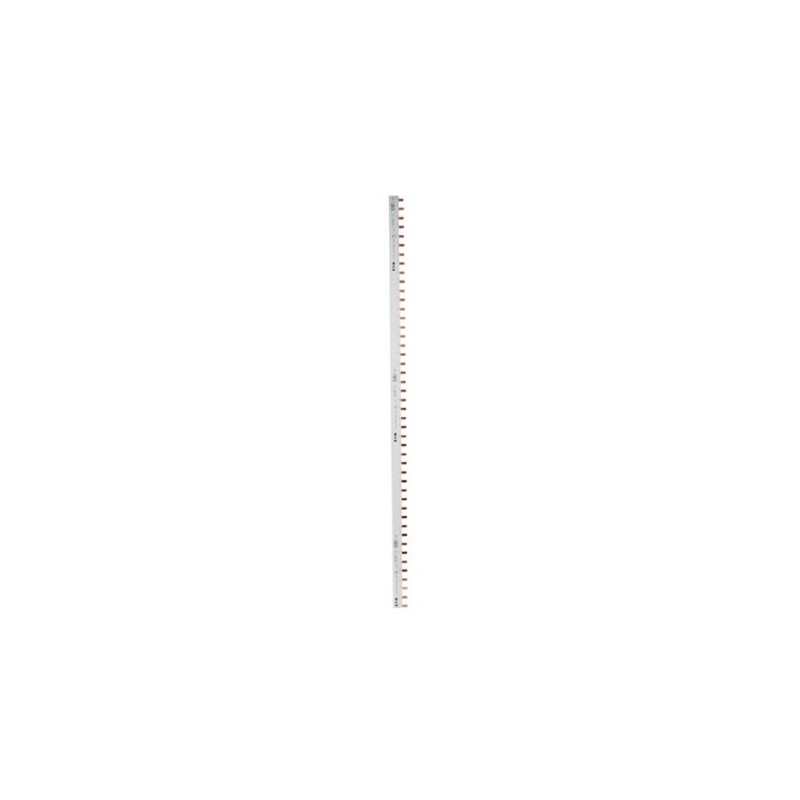

BB-UL-18/3P+AS-3,5M/48 121988 EATON ELECTRIC Phase busbar, 3-phase, 18qmm, pin, 1m
BB-UL-18/3P+AS-3,5M/48
121988
EATON-MOELLER
Phase busbar, 3-phase, 18qmm, pin, 1m
BB-UL-18/3P+AS-3,5M/48
Low-voltage industrial components > Phase busbar
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Phase busbar, 3-phase, 18qmm, pin, 1m
Block busbar for FAZ, type conforms to UL508, EN/IEC 60947-2
Delivery program
Basic function
Busbar
Basic function accessories
Busbar for miniature circuit-breaker
Application
Switchgear for industrial and advanced commercial applications
Busbar type
3-phase + auxiliary contact
Product range
BB-UL
Design verification as per IEC/EN 61439
Rated operational current for specified heat dissipation [In]
80 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-5 °C
Operating ambient temperature max.
+100 °C
0
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Phase busbar (EC000215)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Phase busbar ([email protected] [ACN992011])
Number of phases
3
Number of poles
48
Suitable for number of devices
48
Pitch dimensions
0 mm
Cross section
18 mm²
Length
1000 mm
Number of modular spacings
48
Rated permanent current Iu
80 A
Type of electric connection
Pin
Insulated
Yes
Rated surge voltage
10 kV
Conditioned rated short-circuit current Iq
10 kA
Max. rated operation voltage Ue
277 V
Rated short-time withstand current lcw
0 kA
Suitable for devices with N-busbar
No
Suitable for devices with auxiliary switch
No
Characteristics
Characteristic curve
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| BB-UL-18/3P+AS-3,5M/48 121988 EN_121988.pdf | 177 Kbytes |
|
