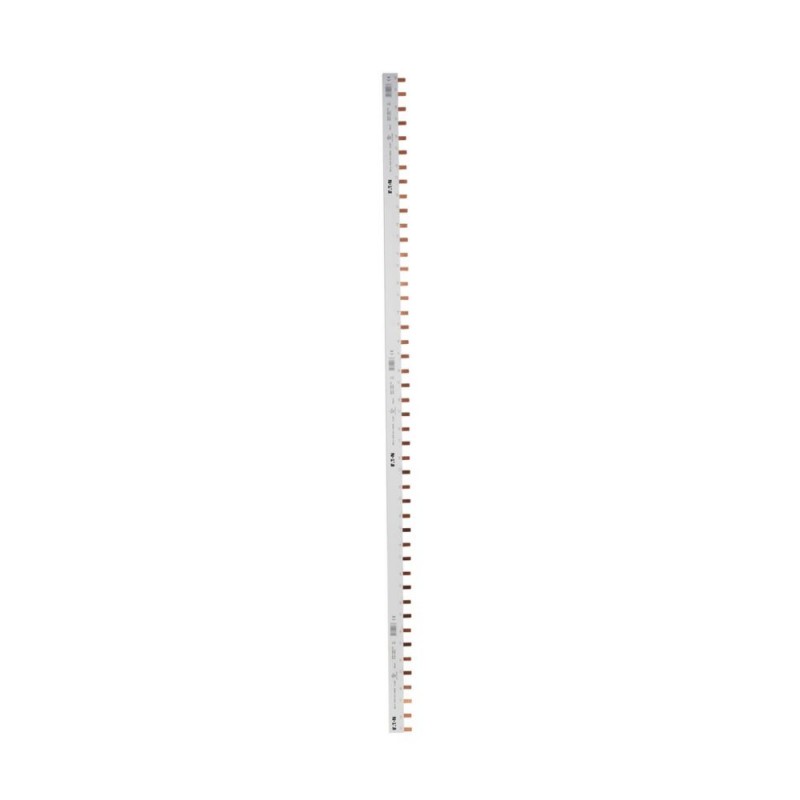

BB-UL-18/2P+AS-2,5M/46 121987 Y7-121987 EATON ELECTRIC Phase busbar, 2-phase, 18qmm, pin, 1m
BB-UL-18/2P+AS-2,5M/46
121987
Y7-121987
EATON-MOELLER
Phase busbar, 2-phase, 18qmm, pin, 1m
BB-UL-18/2P+AS-2,5M/46
Block busbar for FAZ, type conforms to UL508, EN/IEC 60947-2
Low-voltage industrial components > Phase busbar
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Delivery program
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Characteristics
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 2 |
| Number of poles (EF001391) | 46 |
| Suitable for number of devices (EF007241) | 46 |
| Module width (EF007504) | 0 mm |
| Cross section (EF000649) | 18 mm² |
| Length (EF001438) | 1009 mm |
| Can be cut to size (EF015250) | No |
| Width in number of modular spacings (EF002950) | 46 |
| Rated permanent current Iu (EF001389) | 80 A |
| Type of electric connection (EF003961) | Pin |
| Insulated (EF000019) | Yes |
| Rated surge voltage (EF002993) | 10 kV |
| Conditioned rated short-circuit current Iq (EF001444) | 10 kA |
| Max. rated operation voltage Ue (EF007357) | 277 V |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BB-UL-18/2P+AS-2,5M/46 Y7-121987 121987 EN_121987.pdf | 177 Kbytes |
|
