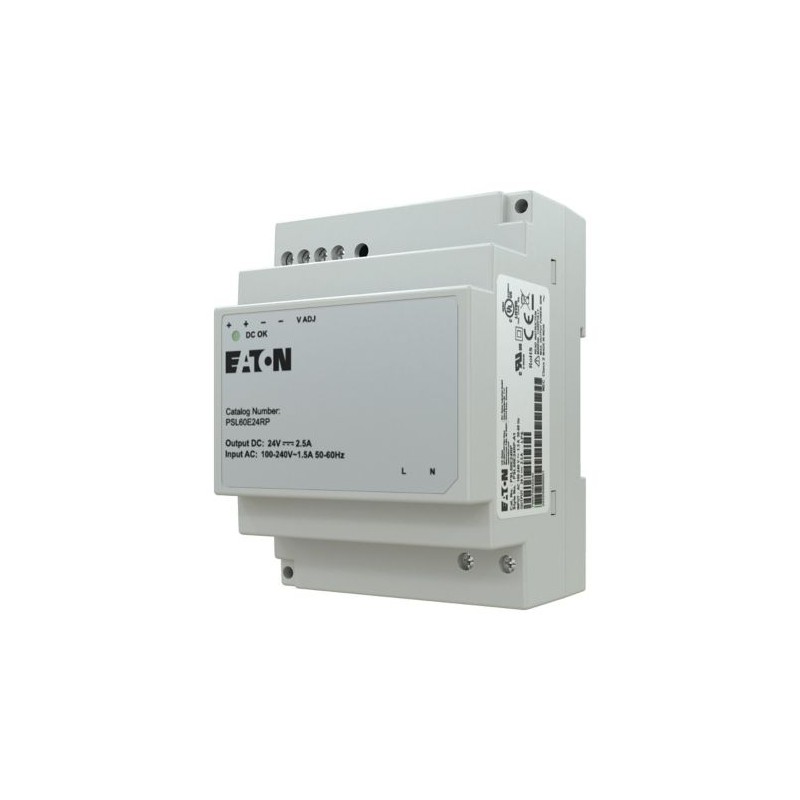

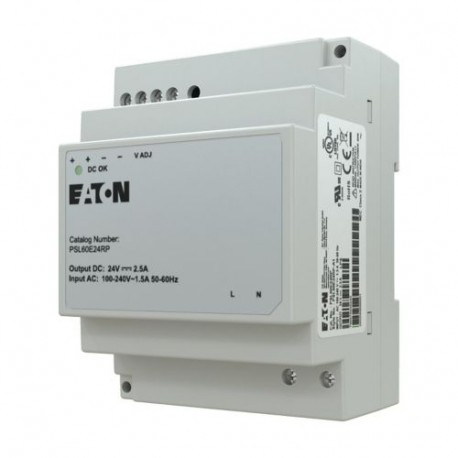

PSL60E24RP EP-401404 EATON ELECTRIC Power supply, single phase, 60W, 24VDC
PSL60E24RP
EP-401404
EP-401404
EATON-MOELLER
Power supply, single phase, 60W, 24VDC
Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton PSL power supply unit
Catalog Number
EP-401404
Model Code
PSL60E24RP
UPC
786676040242
Product Length/Depth
91 mm
Product Height
55.6 mm
Product Width
71 mm
Product Weight
0.22 kg
Certifications
IEC 62368-1
EN 55032
CISPR 35/EN 55035
EN 61000-3-2
EN 61000-3-3
IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8: 2010
EN 61000-4-11
EN IEC 63000
RoHS conform
REACH
TSCA
P65
SELV (EN 60950)
EN 55032
CISPR 35/EN 55035
EN 61000-3-2
EN 61000-3-3
IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8: 2010
EN 61000-4-11
EN IEC 63000
RoHS conform
REACH
TSCA
P65
SELV (EN 60950)
Features & Functions
Electric connection type
Screw connection
Enclosure material
Plastic
Features
Output voltage stabilized
Number of phases
1
General
Degree of Protection
IP20
NEMA 1
NEMA 1
Pollution degree
2
Product category
Power supply
LED indicator
Status indication of "DC OK": Green LED
Power consumption
68 W
Ambient conditions, mechanical
Shock resistance
4 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 22 ms, 9 Impacts
Vibration resistance
10 - 500 Hz at 30 m/s² (3 G max ) for 60 min. in X-axis, Y-axis, Z-axis directions, (IEC/EN 60068-2-6)
Climatic environmental conditions
Altitude
Max. 2000 m
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
71 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
85 °C
Climatic proofing
< 95 % relative humidity at +25 °C, no condensation
Electro magnetic compatibility
Burst impulse
2 kV, according to IEC/EN 61000-4-4, Level 3
Contact discharge
4 kV, according to IEC/EN 61000-4-2, Level 3, ESD
Terminal capacities
Terminal capacity (flexible with ferrule)
Input / output: 0.32 - 3.3 mm²
Terminal capacity (flexible with ferrule AWG)
Input / output: 22 - 12
Safety
Protection class
2 (IEC/EN 60536)
Insulation resistance
3 kV AC (input/output)
Mean time between failures (MTBF)
> 500,000 h
Input characteristics
Input voltage at AC 50 Hz - min
90 V
Input voltage at AC 50 Hz - max
264 V
Input voltage at DC - min
125 V
Input voltage at DC - max
375 V
Inrush current
< 30 A at 115 V AC (Inrush current limitation I²t (+25 °C))
< 60 A at 230 V AC (Inrush current limitation I²t (+25 °C))
< 60 A at 230 V AC (Inrush current limitation I²t (+25 °C))
Leakage current at ground IPE - max
< 0.25 mA (at 240 V AC)
Ramp/run-up time
< 2000 ms
Supply frequency
50/60 Hz, Input, Rated value
47 Hz, Input, min. Range
63 Hz, Input, max. Range
47 Hz, Input, min. Range
63 Hz, Input, max. Range
Supply voltage at AC, 50 Hz - min
90 VAC
Supply voltage at AC, 50 Hz - max
264 VAC
Supply voltage at DC - min
125 VDC
Supply voltage at DC - max
375 VDC
Tripping characteristic
B
Output characteristics
Residual ripple
< 100 mVpp (PARD at 20 MHz)
Capacitive load
3000 µF max. Capacitive load starting, Output characteristic
Efficiency
> 88 % (115 V AC)
> 88 % (230 V AC)
> 88 % (230 V AC)
Output current at AC, 50 Hz - max
2.5 A
Output voltage
24 V
Output voltage at DC - min
24 V
Output voltage at DC - max
24 V
Rated output power
60 W
Voltage tolerance
± 2 %, Rated output voltage
Design verification
Equipment heat dissipation, current-dependent Pvid
8 W
Heat dissipation capacity Pdiss
8 W
Heat dissipation per pole, current-dependent Pvid
8 W
Rated operational current for specified heat dissipation (In)
0 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
