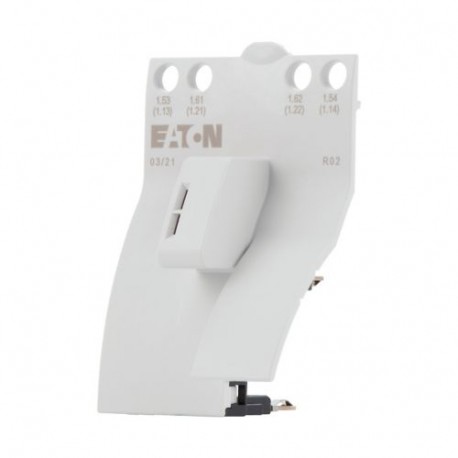

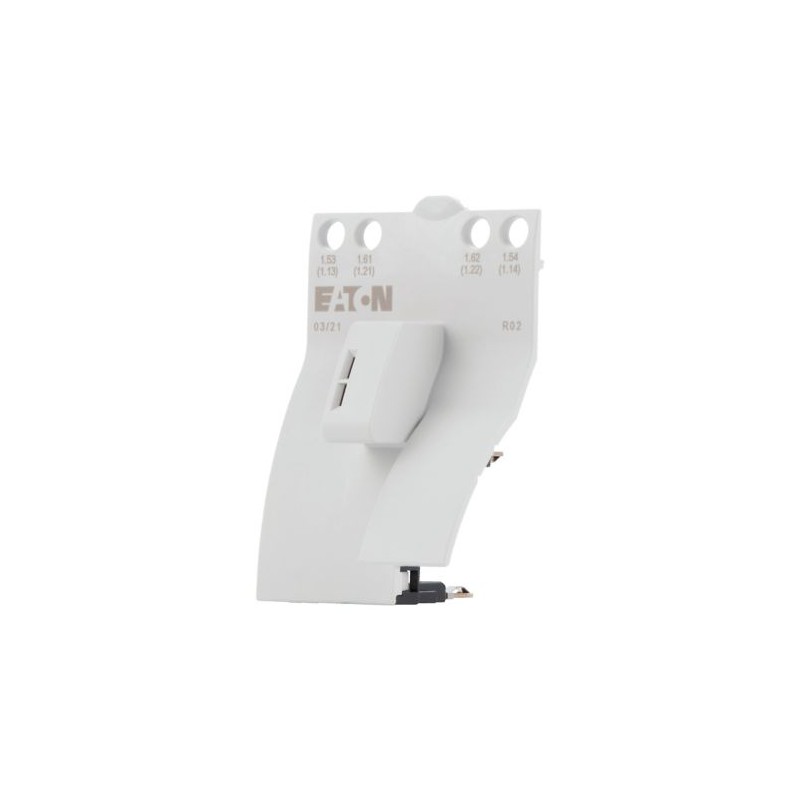

PKZM0-XM12DE 112119 Y7-112119 EATON ELECTRIC Wiring module, for DILM7-M15 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PKZM0-XM12DE 112119 Y7-112119 EATON ELECTRIC Wiring module, for DILM7-M15

PKZM0-XM12DE

112119

Y7-112119

EATON-MOELLER

126

Wiring module, for DILM7-M15

PKZM0-XM12DE

Eaton Moeller® series PKZM0 Wiring module, for DILM7-M15

Electric contact module as main current wiring between PKZM0 and contactor in tool-less plug connection

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $378.58
Unit price: $3.00
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series PKZM0 Accessory Wiring module
Catalog Number
112119
Model Code
PKZM0-XM12DE
EAN
4015081116799
Product Length/Depth
67 mm
Product Height
54 mm
Product Width
45 mm
Product Weight
0.032 kg
Certifications
CSA
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 14
CSA Class No.: 3211-05
CSA File No.: 165628
CE
IEC/EN 60947-4-1
UL 508
UL File No.: E36332

General

Model
Direct circuit
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Electrical rating

Rated operational voltage (Ue) - max
415 VAC

Design verification

Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.5 W
Rated operational current for specified heat dissipation (In)
15.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 112119 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3
Model (EF000010) Direct circuit

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XM12DE Y7-112119 112119 EN_112119.pdf 108 Kbytes PKZM0-XM12DE Y7-112119 112119 EN_112119.pdf
