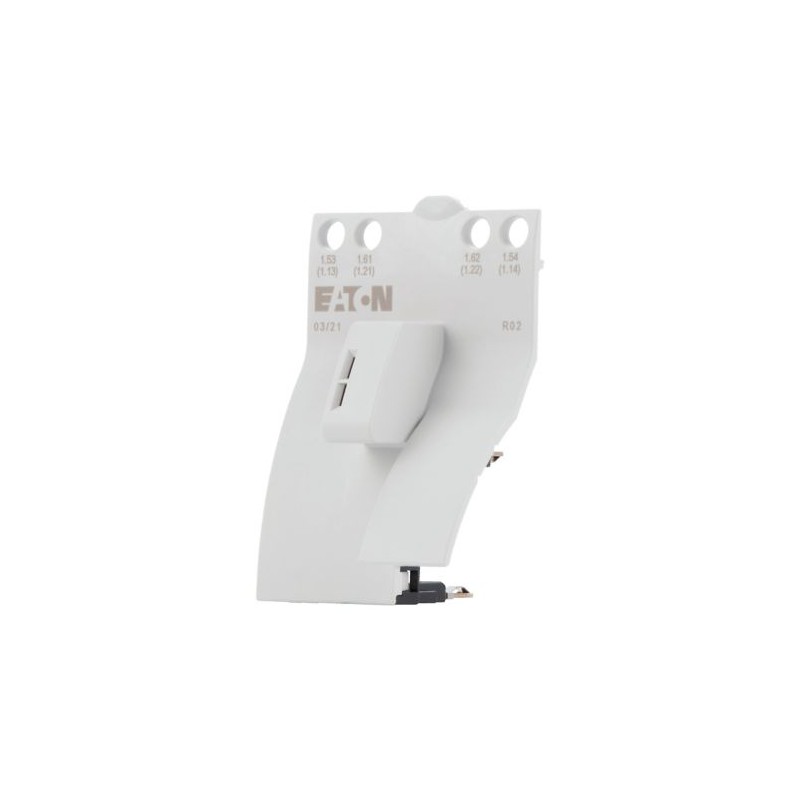

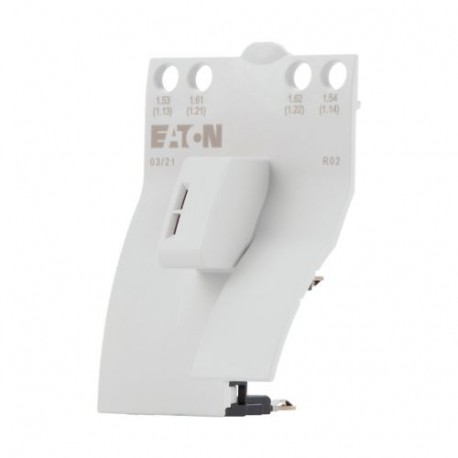

PKZM0-XM12DE 112119 Y7-112119 EATON ELECTRIC Modulo di cablaggio, per DILM7-M15 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

PKZM0-XM12DE 112119 Y7-112119 EATON ELECTRIC Modulo di cablaggio, per DILM7-M15

PKZM0-XM12DE

112119

Y7-112119

EATON-MOELLER

126

Modulo di cablaggio, per DILM7-M15

Collegamento elettrico sostitutivo Per il collegamento tra PKZM0 e DILM7... 15

Eaton Moeller® series PKZM0 Wiring module, for DILM7-M15

Modulo di contatto elettrico come cablaggio di alimentazione principale tra PKZM0 e contattore in collegamento a spina senza attrezzi

Maggiori dettagli


Apparecchi elettrici a bassa tensione > set di cablaggio per breaker

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $383.84
Prezzo unitario: $3.05
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series PKZM0 Accessory Wiring module
Catalog Number
112119
EAN
4015081116799
Product Length/Depth
67 mm
Product Height
54 mm
Product Width
45 mm
Product Weight
0.032 kg
Certifications
CSA
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 14
CSA Class No.: 3211-05
CSA File No.: 165628
CE
IEC/EN 60947-4-1
UL 508
UL File No.: E36332
Model Code
PKZM0-XM12DE

Specifiche del prodotto

Rated operational voltage (Ue) - max
415 VAC
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Model
Direct circuit
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.5 W
Rated operational current for specified heat dissipation (In)
15.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
Suitable for number of poles
3
Product category
Accessories
Rated operational current (Ie)
15 A

ETIM for 112119 Apparecchi elettrici a bassa tensione (EC002050)
Caratteristica Valore
adatto per numero di poli (EF001589) 3
versione (EF000010) circuito diretto

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XM12DE Y7-112119 112119 IT_112119.pdf 108 Kbytes PKZM0-XM12DE Y7-112119 112119 IT_112119.pdf
