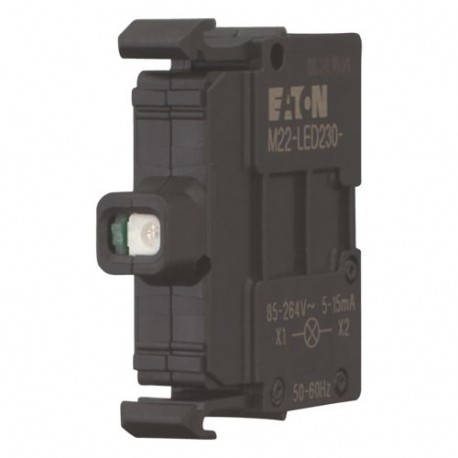

M22-LED230H-* 106521 Y7-106521 EATON ELECTRIC M22-LED230H-WQ Illuminated element LED, front mount, + respons..
M22-LED230H-*
106521
Y7-106521
EATON-MOELLER
M22-LED230H-WQ Illuminated element LED, front mount, + response threshold
M22-LED230H-*
Eaton Moeller® series M22 Illuminated element LED, front mount, + response threshold
LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 207 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 12 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: - Selectable ￫ Notes -, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Low-voltage industrial components > Lamp holder block for control circuit devices
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
CSA-C22.2 No. 94-91
CSA File No.: 012528
UL File No.: E29184
IEC 60947-5-1
UL Category Control No.: NKCR
CE
CSA
CSA-C22.2 No. 14-05
UL
IEC/EN 60947-5
UL 508
| Feature Name | Feature Value |
|---|---|
| Transformer integrated (EF001358) | No |
| With integrated voltage decreasing resistor (EF001399) | No |
| With light source (EF005905) | Yes |
| With integrated diode (EF001400) | Yes |
| Lamp holder (EF000048) | None |
| Rated voltage Ue at AC 50 Hz (EF007029) | 207 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 207 V |
| Rated voltage Ue at DC (EF007031) | 0 V |
| Voltage type for actuating (EF008242) | AC |
| Lamp type (EF002423) | LED |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Colour light source (EF001402) | Other |
| Type of fastening (EF002442) | Front fastening |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-LED230H-* Y7-106521 106521 EN_289241.pdf | 3 Mbytes |
|
