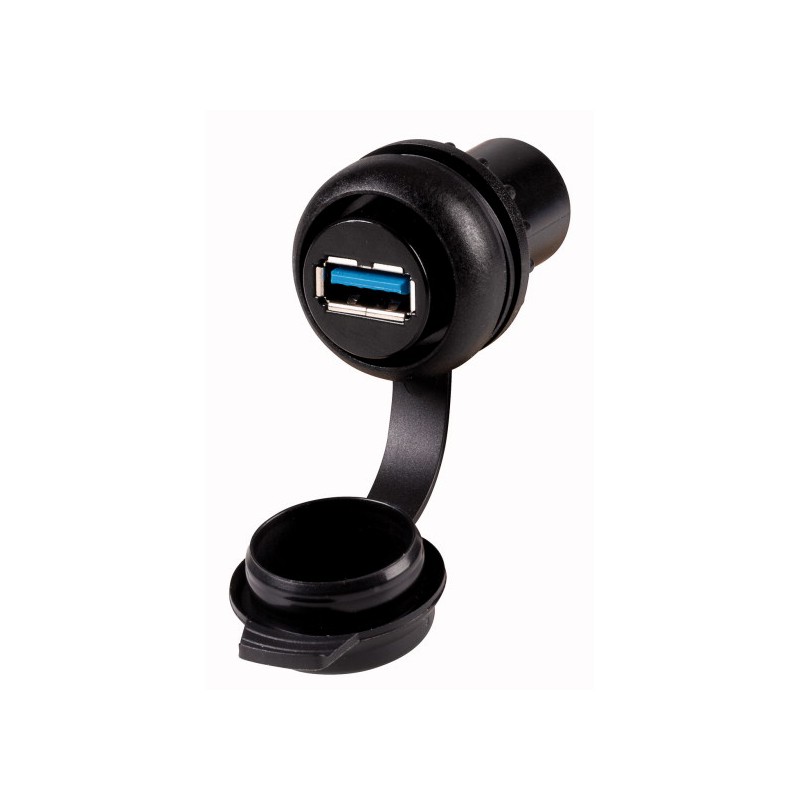

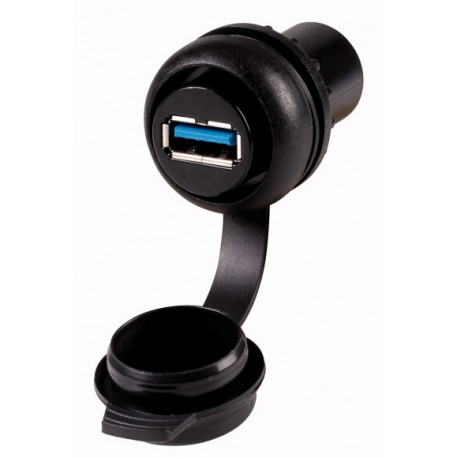

LICENZA CGVISON USB 40071347931 M22S-USB EATON ELECTRIC Front element, black, +USB 3.0
LICENZA CGVISON USB
40071347931
M22S-USB
EATON-MOELLER
Front element, black, +USB 3.0
Central Battery System
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Front element, chrome, +USB 3.0
Alternate Catalog No.
M22-USB
EL-Nummer (Norway)
0004315260
Bulkhead interface, General accessories, USB 3.0 socket, Type A, Degree of Protection: IP65 (with closed cover), IP20 (with plug connected), Bezel: titanium, Connection to SmartWire-DT: no, For use with: Front mounting, Number of poles: 9
Delivery program
Accessories
General accessories
Basic function accessories
Bulkhead interface, RJ45 socket
USB 3.0 socket, Type A
Degree of Protection
IP65 (with closed cover)
IP20 (with plug connected)
IP20 (with plug connected)
Front ring
Bezel: titanium
Connection to SmartWire-DT
no
For use with
Front mounting
Terminal diagram / contact assignment
Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1
Minimum force for positive opening [ N]
0
Technical data
Technical data
Nominal voltage [UL]
AC/DC 5V
Voltage range
Max. 30 V
Rated current
900 mA
Number of poles
9
Baud rate
Max. 5 Gbit/s kBd
Class / category
3.0
Contact type art
1 : 1
Screen earth kit
yes
General
Design
USB 3.0 A
Insulation resistance [RISO]
> ≧ 100 MΩ
Volume resistance
< 30 mΩ
Contact material
CuSn, gold-plated
Mounting
Front panel cutout d = 22.5 mm
Mounting depth:
max. 27 (nicht gesteckt), entspricht ca. 100 mit Kabel gesteckt (Kabel nicht im Lieferumfang) mm
Ambient temperature
-20 - +70
Storage
- 25 - + 80 °C
Lifespan, mechanical [Operations]
> 100 insertion cycles
Weight
0.009 kg/piece
Design verification as per IEC/EN 61439
Technical data for design verification
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+70 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Accessories for control circuit devices (EC002024)
Type of electrical accessory
Other
Type of mechanical accessory
Other
Approvals
Product Standards
UL 508; CSA-C22.2 No. 142; IEC/EN 6113-2; CE marking
UL File No.
E330994
UL Category Control No.
DUXR, DUXR7
CSA File No.
UL report applies to both US and Canada
CSA Class No.
-
North America Certification
UL listed, certified by UL for use in Canada
Degree of Protection
IEC: IP65 and UL/CSA NEMA Type 12 when closed, IP20 when connected
Characteristics
Terminal diagram / contact assignment
SH: Schirmung
Dimensions
Datasheet - PDF
