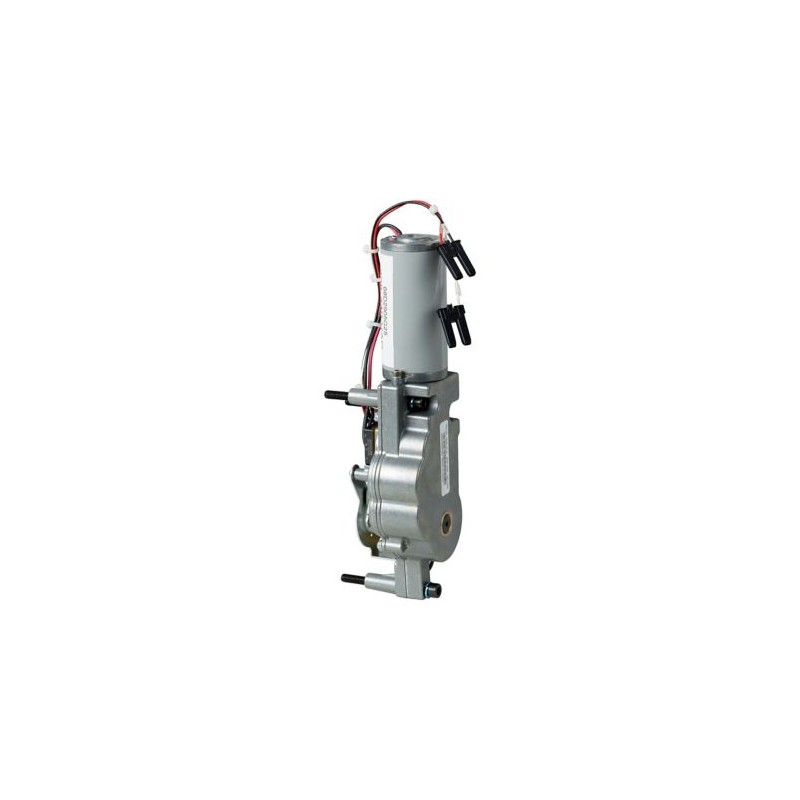

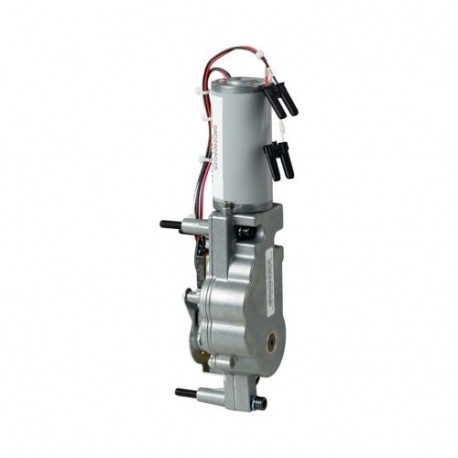

+IZMX-M40-24DC-1 184255 Y7-184255 EATON ELECTRIC Motor operator 24 VDC. Can only be sold assembled.
+IZMX-M40-24DC-1
184255
Y7-184255
EATON-MOELLER
Motor operator 24 VDC. Can only be sold assembled.
+IZMX-M40-24DC-1
Motor operator 24 VDC
Accessories, Motor operator, The motor automatically tensions the spring force storage mechanism for remote or local actuation., Maximum operating frequency Actuations/minute 3, Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 24 V DC V, Operating range x US 0,85 - 1,1 Factor, max. Betriebsstrom In 7 A, max. Anlaufstrom (35ms) In 24.5 A, max. Leistung AC/DC 200 VA/W, max. Anlaufleistung (35ms) AC/DC 3 VA/W, For use with IZMX40…, INX40…
Low-voltage industrial components > Motor operator for power circuit-breaker
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Delivery program
Technical data - electrical
0.85 - 1.1 x Us
Technical data - mechanical
Design verification as per IEC/EN 61439 - technical data
Additional information
INX40…
| Feature Name | Feature Value |
|---|---|
| Type of switch drive (EF008233) | Motor drive |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| +IZMX-M40-24DC-1 Y7-184255 184255 EN_184104.pdf | 8 Mbytes |
|
