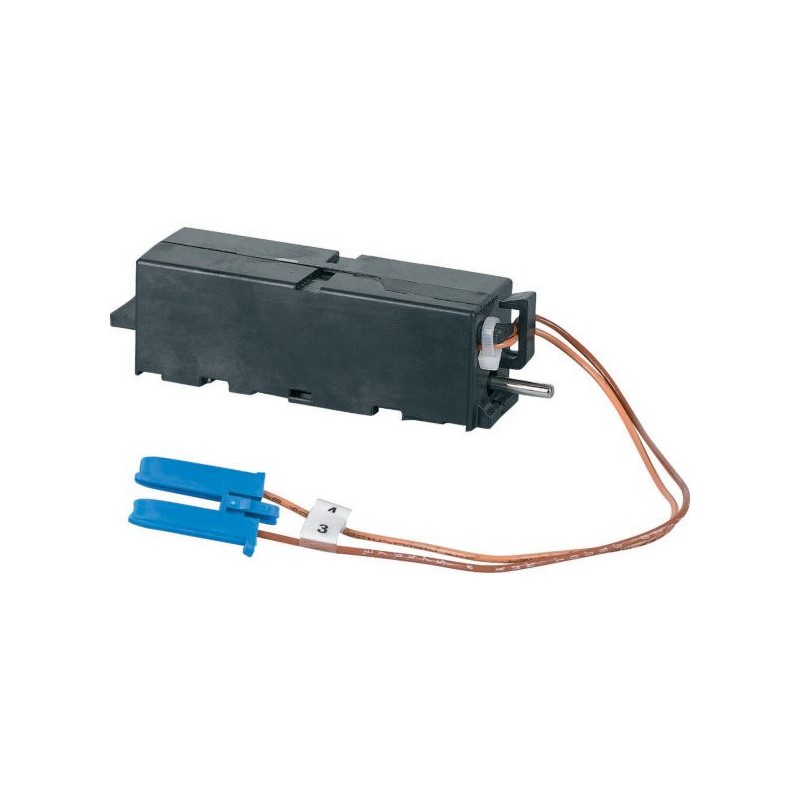

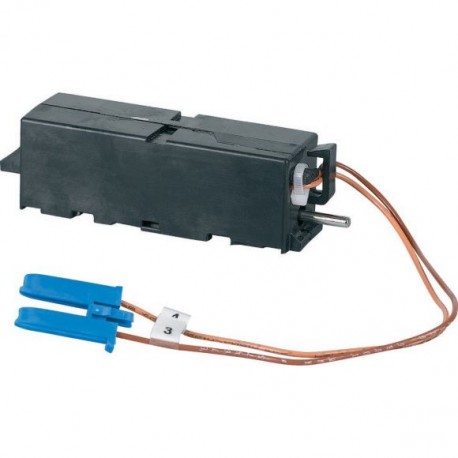

+IZMX-UVR110AD-1 184113 Y7-184113 EATON ELECTRIC Undervoltage release 110-125 VAC/DC. Can only be sold assem..
+IZMX-UVR110AD-1
184113
Y7-184113
EATON-MOELLER
Undervoltage release 110-125 VAC/DC. Can only be sold assembled.
+IZMX-UVR110AD-1
Undervoltage release 110-125 VAC/DC
Accessories, Undervoltage release, Cannot be combined with a second shunt release., Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 110 - 127 V AC 50/60 Hz, 110 - 125 V DC V, Operating range x US 0,85 - 1,1 Factor, max. holding current In 0.056 A, max. pick-up current (35ms) In 8.04 A, max. continuous power AC/DC 5 VA/W, max. pull-in power (35ms) AC/DC 890 VA/W, Circuit-breaker total switching time @ US=100% 37 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
Low-voltage industrial components > Under voltage coil
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Limited to 3/min due to the high pick-up current for 35 ms.
Please note - the circuit-breaker's switching frequency = 60/h
Power circuit breaker
INX16..., INX40...
110 - 127 V AC (50/60 Hz)
0.85 - 1.1 x Us
50 ms (Us = 100%) (IZMX16…, INX16…)
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 110 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 110 V |
| Rated control supply voltage DC (EF003980) | 110 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Delayed (EF001541) | No |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| +IZMX-UVR110AD-1 Y7-184113 184113 EN_184113.pdf | 106 Kbytes |
|
