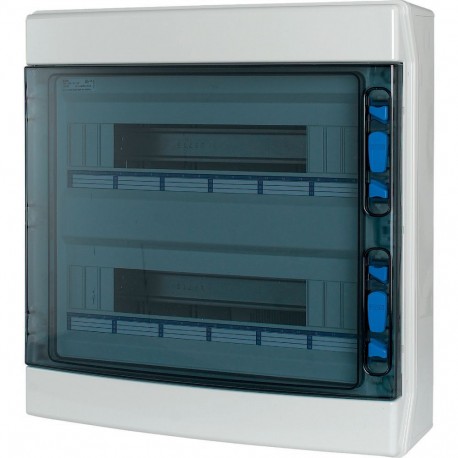

IKA-2/36-ST 174201 Y7-174201 EATON ELECTRIC IKA-2/36-ST IKA professional distribution board, IP65 + clamps
IKA-2/36-ST
174201
Y7-174201
EATON-MOELLER
IKA-2/36-ST IKA professional distribution board, IP65 + clamps
IKA-2/36-ST
Eaton xComfort IKA LV systems Final Distribution Boards. IKA professional distribution board, IP65 + clamps, 2/36-ST
IKA distribution board for damp locations RAL7035, with neutral and protective conductor terminal, foamed-in-place gasket, applied using CNC, for IP65 degree of protection as per IEC/EN 62208, 36 space units, 2-row, approved for building service distribution boards in accordance with IEC/EN 61439-3 VDE 0660-600-3, integrated module compensation system designed to accommodate various device widths, metric knockouts with centering point, enclosure made of ABS and door made of polycarbonates, for installing switching and protective devices, in accordance with dimension standard DIN 43 880 with an installation depth of 70 mm or 85 mm, AC 1000 V , DC 1500 V, RoHs-compliant, consisting of a plastic base with a withdrawable DIN-rail made of galvanized sheet steel, DIN-rail adjustable in height
Distribution boards > Small distribution board
Compact Distribution Boxes
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60670-24
Delivery program
Light gray (RAL 7035)
Technical data - electrical
Technical data - mechanical
Surface mounting
DIN-rail
IK08 (impact resistance)
PE: 12 x (2.5 mm² - 6 mm²) + 12 x (4 mm² - 10 mm²) + 1 x (10 mm² - 25 mm²) + 1 x (16 mm² - 35 mm²)
Single
Temperaturre-rise verification as per IEC 60890
Design verification as per IEC/EN 61439 - technical data
Design verification as per IEC/EN 61439
Additional information
Device support rails
Reserve section cover 6 space units
Sealing caps
Locking screws can be sealed
Current circuit designation
Neutral-/protective conductor terminal
Basic device
- IP65
- Protection Class II
- Plastic enclosure gray (RAL 7035)
Installation distribution board
IKA professional distribution board
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 2 |
| Width in number of modular spacings (EF002950) | 18 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | With notch |
| Type of door (EF004464) | EV000426 |
| Transparent cover/door (EF006244) | Yes |
| Signal passing door (EF015941) | No |
| With lock (EF006306) | No |
| Type of closure (EF004462) | Other |
| Housing material (EF001596) | Plastic |
| Built-in depth (EF000218) | 70 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 60 mm |
| Earthing terminal block (EF015776) | No |
| Neutral terminal block (EF015777) | No |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Degree of protection (IP) (EF005474) | IP65 |
| Height (EF000040) | 436 mm |
| Width (EF000008) | 418 mm |
| Depth (EF000049) | 145 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IKA-2/36-ST Y7-174201 174201 ES_174199.pdf | 3 Mbytes |
|
