EMS-XBR3-2

177248

EATON-MOELLER

Connector with cables of three-phase power; 2 Devices

Three-phase connection bridge for EMS; 2 devices; With connector

Three-phase current connector with plug; 2 Devices

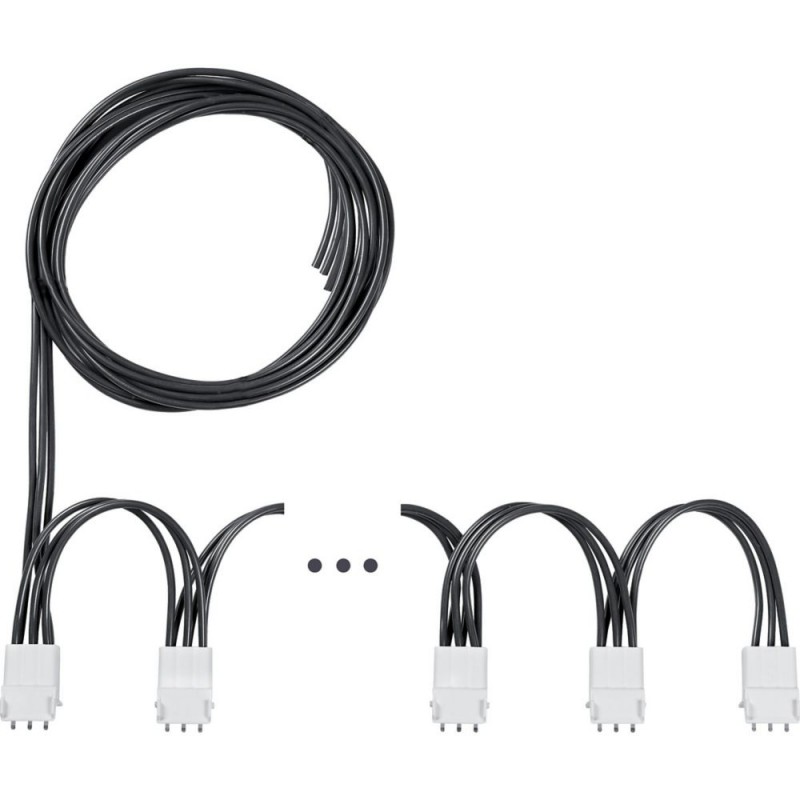

3 prefabricated connection cables with plug on side of the device for wiring the main current wiring for 2 EMS electronic motor starters in parallel with a max. mounting distance of 30 mm, conductor cross-section: 2.5 mm².

More details


Low-voltage industrial components > Accessories/spare parts for electronic motor control and protection device

Standard Soft Starters

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Three-phase current connector with plug; 2 Devices
3 prefabricated connection cables with plug on side of the device for wiring the main current wiring for 2 EMS electronic motor starters in parallel with a max. mounting distance of 30 mm, conductor cross-section: 2.5 mm².

Delivery program

Product range
Electronic motor starter
Basic function
Accessories
Description
Three-phase current connector with plug
Pole
3
Devices
2 Number
Actuating voltage
24 V DC
For use with
EMS-D...
EMS-D…-SWD-…
EMS-R...
EMS-R…-SWD-…
Conductor cross-section
2.5 mm2

Technical data

General
Ambient temperature
-25 - +60

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
12 A
Heat dissipation per pole, current-dependent [Pvid]
2.5 W
Equipment heat dissipation, current-dependent [Pvid]
7.5 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+60 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for electronic motor control and protection device (EC002615)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Electronic motor control and motor protection device / Electronic motor control and motor protection unit (accessories) ([email protected] [ACO035011])
Type of accessory
Connecting cable

ETIM for 177248 Low-voltage industrial controls and switchgear (EC002615)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Connecting cable
Accessory (EF013236) Yes
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON EMS EN.pdf 1 Mbytes
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
EMS-XBR3-2 EMS-XBR3-2 177248 EN_177248.pdf 467 Kbytes EMS-XBR3-2 EMS-XBR3-2 177248 EN_177248.pdf
