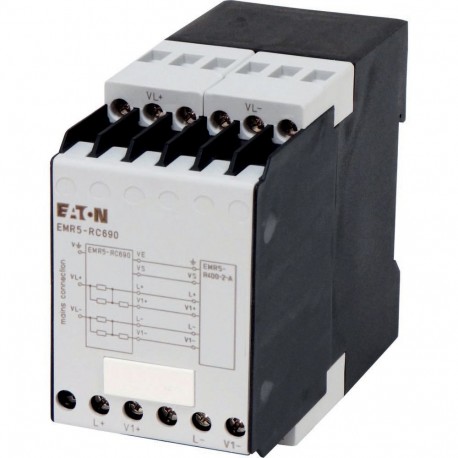

EMR5-RC690 153445 EATON ELECTRIC Insulation monitoring relay, AC/DC coupling module
EMR5-RC690
153445
EATON-MOELLER
Insulation monitoring relay, AC/DC coupling module
Upstream module for EMR5-R400-2-A
Relays > Insulation and earth fault monitoring relay
Relay timers (KETR, KEMR, KESR)
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Delivery program
Expands the rated voltage range for the EMR5-400-2-A to 690 V AC or 1000 V DC
no supply voltage required
0 - 1000 V DC
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Approvals
Characteristics
S operations
220 V 50 Hz AC-1
360 operations/h
Dimensions
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| With detachable clamps (EF003340) | No |
| Function (EF000030) | For mixed system |
| External power supply required (EF003292) | No |
| Rated operating frequency (EF007024) | 0 Hz |
| Line capacity (EF003419) | 0 µF |
| Response value impedance 1 (EF008202) | 0 kOhm |
| Response value impedance 2 (EF008203) | 0 kOhm |
| Indication of insulation value (EF003422) | No |
| Error registration possible (EF003423) | No |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 78 mm |
| Depth (EF000049) | 110 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMR5-RC690 EMR5-RC690 153445 153445_EN.pdf | 405 Kbytes |
|
